Case IH 5150 – specifications
Series: Other models
Build year not documented · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

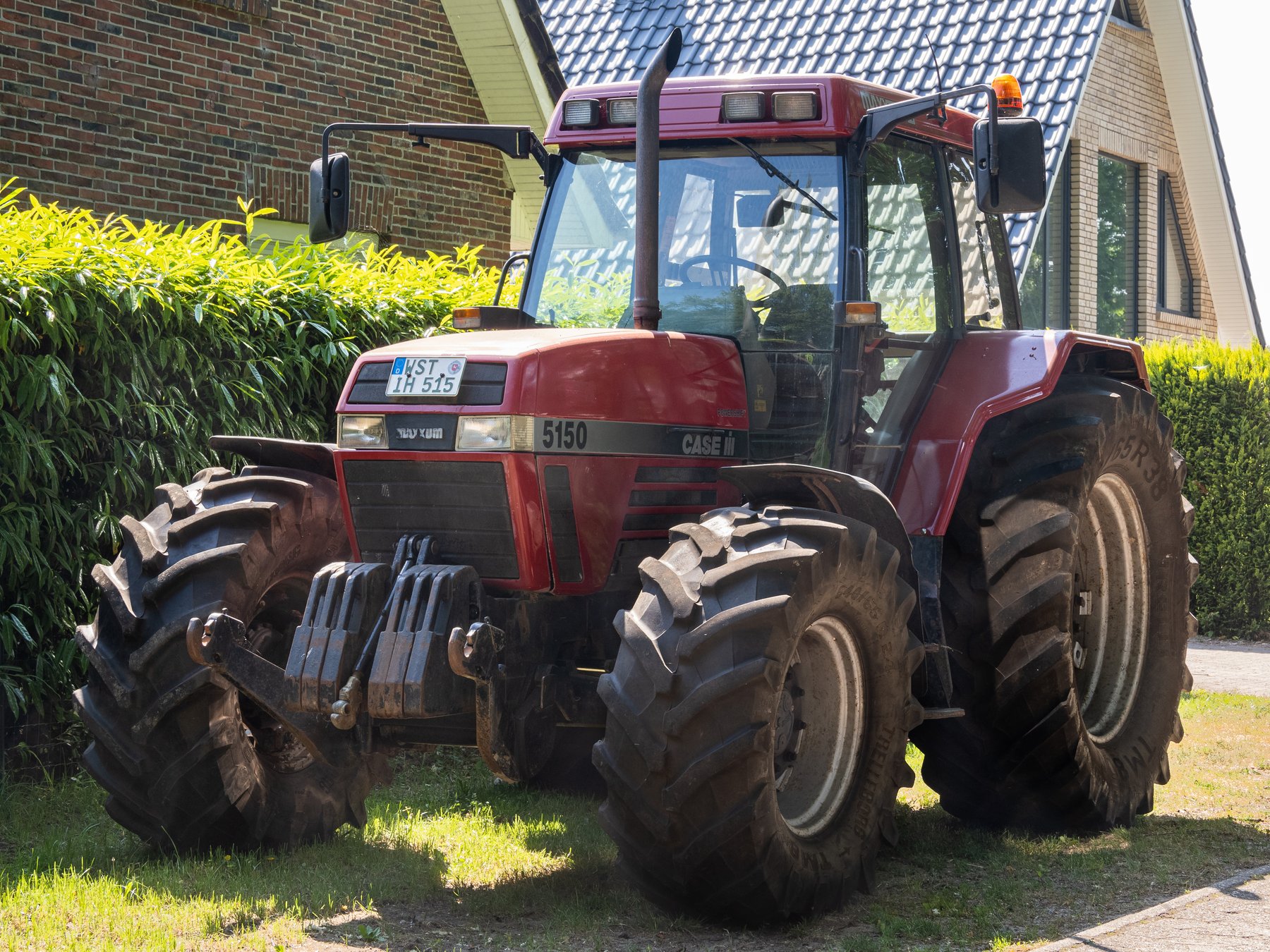

The Case IH 5150 is a tractor belonging to the group of agricultural tractors, manufactured at the plant in Germany. This Case IH model is equipped with a six-cylinder engine featuring water cooling. The engine displacement is 5,883 cm³, indicating a solid basic design for daily field operations. The design with a length of 4,453 mm, a width of 2,204 mm, and a height of 2,765 mm defines the vehicle's external dimensions. The wheelbase of 2,585 mm contributes to stability, while the curb weight of 5,360 kg indicates the mass without additional attachments or ballast.
The maximum torque of 500 Nm is available at a rated speed of 2,200 rpm. These values enable the pulling of heavy attachments and the overcoming of soil resistance. The selectable four-wheel drive ensures traction on uneven or damp ground. The transmission is available in two variants: with 16 forward and 12 reverse gears, or with 24 forward and 20 reverse gears. The higher number of gears allows for finer gradation of driving speeds, which is advantageous for precise field work. The tank holds 170 l of fuel, determining the range for longer work assignments. The power take-off operates at speeds of 540 and 1,000 rpm to drive various implements.
The three-point hitch is classified in Category II, ensuring compatibility with common attachments. The available transmission options offer a range of 16 to 24 forward gears, with the 24-gear variant providing a wider selection of speed levels for different working speeds. This configuration is aimed at operations requiring both high tractive force and variable driving speeds. The combination of high torque and four-wheel drive supports tasks such as plowing or pulling heavy trailers. The power take-off speeds cover the requirements for most agricultural attachments operated at either low or high speeds.
Case IH – other models: the collective page of tractors outside the named ranges, from the IH heritage (1056 XL, 1455 XL) through the 4200, 5100 and CS series to Farmall, Maxxum, Puma, Magnum and Steiger Quadtrac
This page gathers the Case IH tractors the register could not assign to a named range – the brand that emerged in 1985 when Tenneco bought the farm-equipment division of International Harvester and merged it with J.I. Case of Racine. The tractors therefore carry several origins: the IH 56 and 55 series from Neuss and Doncaster (1056 XL, 1455 XL, 1255) with the XL cab, the 4200 and 5100 (Maxxum) series from Neuss and Racine of the 1990s, the Steyr relatives CS and CVX after the merger into CNH in 1999, and today's Farmall (compact and utility tractors), Maxxum, Puma, Magnum and Steiger ranges, whose number gives the hp class – Puma 195 about 195 hp, Magnum 235 235 hp, Steiger 535 535 hp – and whose suffixes CVX, Quadtrac, Accusteer and Heavy-Duty mark the stepless transmission, the four-track undercarriage and chassis versions. The engines are IH's own in the old, Perkins in the small, FPT (NEF and Cursor) in the medium and big and Cummins in the oldest Steigers.
Read on 3 more paragraphs
The register lists here 275 versions with 17 to 398.9 kW from three- to six-cylinders of 2,539 to 14,994 cm³, PTO outputs from 45 to 473 hp, lift capacities from 742 to 19,620 kg, unladen weights from 2,115 to 24,494 kg, lengths from 3,390 to 6,040 mm and widths from 1,347 to 3,048 mm.
Case IH is New Holland's red sister in the CNH group, number two behind John Deere in North America and, with the Quadtrac, the inventor of the four-track big tractor; the Maxxum and Puma ranges are technically the twins of the Steyr Profi and CVT from St. Valentin.
On used tractors, clutch, transmission and XL cab count on the IH heirs, operating hours, powershift or CVX transmission, front-axle suspension and electronics on the Maxxum and Puma, engine, transmission and tyres or tracks on the Magnum and Steiger; parts run through CNH.
Sources: SpecCodex register, model data: Case IH (weitere Modelle), Case IH (CNH, Hersteller)
Technical data
Engine
| Rated speed | 2,200 rpmcorrect |
|---|---|
| Torque | 500 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,883 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,453 mmcorrect |
|---|---|
| Width | 2,204 mmcorrect |
| Height | 2,765 mmcorrect |
| Wheelbase | 2,585 mmcorrect |
| Unladen weight | 5,360 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/12 R or 24 V/20 Rcorrect |
Working data
| Fuel tank capacity | 170 lcorrect |
|---|
Origin and approval
| Plant | Germanycorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Area: Machines
Frequently asked questions
How much does the Case IH 5150 weigh?
The unladen weight is 5,360 kg.
What engine does the Case IH 5150 have?
6 cylinders, 5,883 cm³ displacement.
What are the dimensions of the Case IH 5150?
4,453 mm × 2,204 mm × 2,765 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
