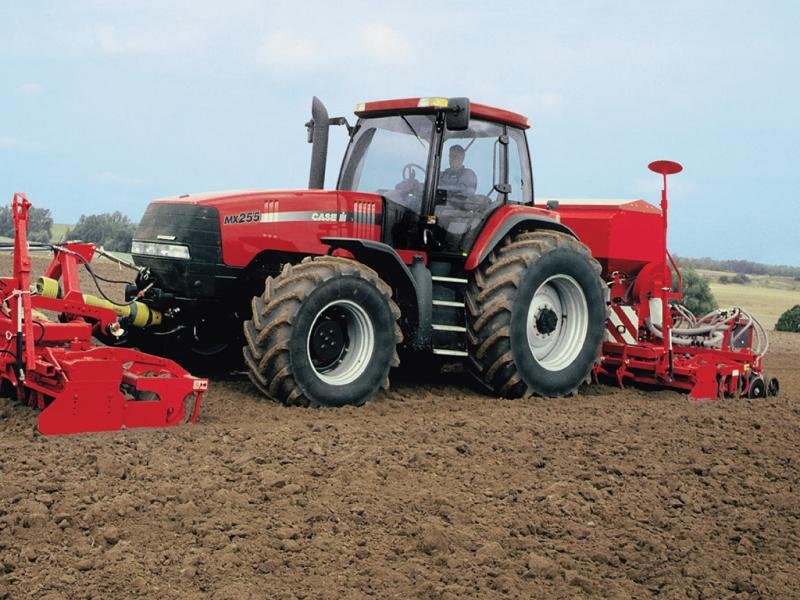

Case IH MX 255
Built: 2002–2005 · Series: MX-MAGNUM Baureihe
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MX Magnum – large tractors from Racine, Wisconsin: six-cylinder 8,268 cm³ engines, 147 to 211 kW, MX 210 to MX 285 models, gross weight up to 14 t
The Case IH MX Magnum is a large-tractor range built at the American plant in Racine, Wisconsin. The Magnum designation marks Case IH's powerful standard-tractor line above the Utility and Maxxum classes; the MX type combines with a three-digit power number. The register covers the MX 210, MX 230, MX 255 and MX 285 models with six-cylinder diesel engines.
Read on 3 more paragraphs
The register holds 4 versions rated at 147.1 to 211.1 kW (200 to 287 hp), with six-cylinder engines of a uniform 8,268 cm³. Weights range from 9,122 to 11,090 kg, with a gross vehicle weight of up to 14,000 kg. Lengths fall between 5,690 and 5,780 mm, widths between 2,585 and 3,048 mm and heights between 3,150 and 3,240 mm; engine speed is 2,000 rpm.
As four-wheel-drive standard tractors, the MX Magnum range covered the upper power segment for large arable farms, from heavy tillage to haulage work requiring high draft forces. It competed with comparable large tractors from John Deere and New Holland in the same power class.
When buying used, this class calls for checking the engine and injection system, clutch and gearbox, and the four-wheel steering and hydraulic system. Rust on mudguards, cab frame and attachment points, and the condition of the wide tyres, are further checkpoints; spare parts are readily available through the Case IH dealer network.
Sources: SpecCodex register, model data: Case IH MX-MAGNUM Baureihe, Case IH
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 262 hp (192.7 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,690 mmcorrect |
|---|---|
| Width | 3,048 mmcorrect |
| Height | 3,150 mmcorrect |
| Wheelbase | 3,005 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 9,779 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/4 R and 24 V/6 Rcorrect |
| Front tyres | 420/90 R 30 AScorrect |
| Rear tyres | 520/85 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 605 lcorrect |
|---|
Origin and approval
| Construction | frame constructioncorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.7 kW/t (193 kW / 9.8 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MX 255 have?
The Case IH MX 255 delivers 262 hp.
How much does the Case IH MX 255 weigh?
The unladen weight is 9,779 kg.
What engine does the Case IH MX 255 have?
6 cylinders, 8,268 cm³ displacement, Diesel.
How fast does the Case IH MX 255 go?
Top speed is 40 km/h.
What are the dimensions of the Case IH MX 255?
5,690 mm × 3,048 mm × 3,150 mm.
When was the Case IH MX 255 built?
Production years: 2002–2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
