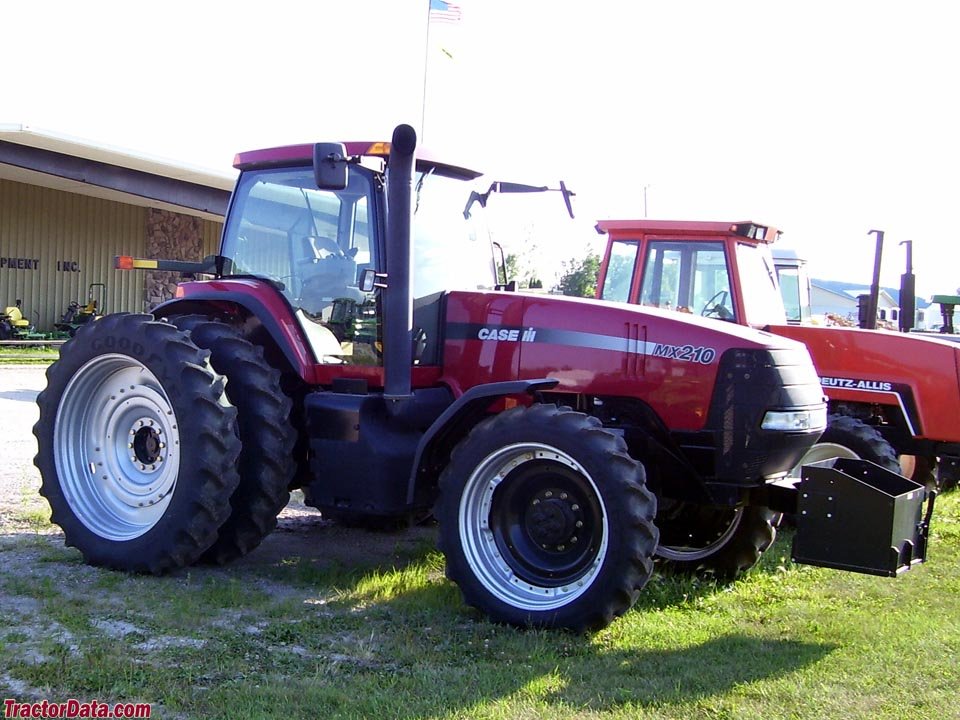

Case IH MX 210

Built: 2002–2005 · Series: MX-MAGNUM Baureihe

More machines from model year 2002

Source: https://www.tractordata.com/farm-tractors/001/6/4/1642-casei

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the MX 210, Case IH offers a model from the MX-MAGNUM series. Production: 2002–2005. The engine delivers 200 hp (147.1 kW), has 6 cylinders, with a displacement of 8,268 cm³. Torque is 939 Nm. Rated speed is 2,000 rpm. The machine is 5,690 mm long, 3,048 mm wide and 3,150 mm high. The unladen weight is 9,165 kg. The wheelbase measures 3,005 mm. Ground clearance is 350 mm. Top speed is 40 km/h. The tank holds 492 litres. Transmission: 18 V/4 R and 24 V/6 R. The engine is water-cooled. Tyres: front 420/90 R 30 AS, rear 520/85 R 42 AS. The fuel is diesel. The bore measures 114 mm. The stroke is 135 mm. The compression ratio is 17:1. Construction: frame construction. The linkage is category III. The PTO runs at 540/1000 rpm. The MX-MAGNUM Baureihe series covers 4 models. Rated output within it ranges from 200 to 287 hp; the MX 210 sits at the bottom of that range with 200 hp. Its immediate neighbours are the MX 230 above it with 234 hp. Unladen weight within it ranges from 9,122 to 11,090 kg; here the MX 210 sits at the bottom of that range with 9,165 kg. 1222 Case IH models across 76 series are on record.

Case IH MX Magnum – large tractors from Racine, Wisconsin: six-cylinder 8,268 cm³ engines, 147 to 211 kW, MX 210 to MX 285 models, gross weight up to 14 t

The Case IH MX Magnum is a large-tractor range built at the American plant in Racine, Wisconsin. The Magnum designation marks Case IH's powerful standard-tractor line above the Utility and Maxxum classes; the MX type combines with a three-digit power number. The register covers the MX 210, MX 230, MX 255 and MX 285 models with six-cylinder diesel engines.

Read on 3 more paragraphs

The register holds 4 versions rated at 147.1 to 211.1 kW (200 to 287 hp), with six-cylinder engines of a uniform 8,268 cm³. Weights range from 9,122 to 11,090 kg, with a gross vehicle weight of up to 14,000 kg. Lengths fall between 5,690 and 5,780 mm, widths between 2,585 and 3,048 mm and heights between 3,150 and 3,240 mm; engine speed is 2,000 rpm.

As four-wheel-drive standard tractors, the MX Magnum range covered the upper power segment for large arable farms, from heavy tillage to haulage work requiring high draft forces. It competed with comparable large tractors from John Deere and New Holland in the same power class.

When buying used, this class calls for checking the engine and injection system, clutch and gearbox, and the four-wheel steering and hydraulic system. Rust on mudguards, cab frame and attachment points, and the condition of the wide tyres, are further checkpoints; spare parts are readily available through the Case IH dealer network.

Sources: SpecCodex register, model data: Case IH MX-MAGNUM Baureihe, Case IH

Technical data

Engine

Fuel	dieselcorrect
Power	200 hp (147.1 kW)correct
Rated speed	2,000 rpmcorrect
Torque	939 Nmcorrect
Cylinders	6correct
Displacement	8,268 cm³correct
Bore	114 mmcorrect
Stroke	135 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,690 mmcorrect
Width	3,048 mmcorrect
Height	3,150 mmcorrect
Wheelbase	3,005 mmcorrect
Ground clearance	350 mmcorrect
Unladen weight	9,165 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18 V/4 R and 24 V/6 Rcorrect
Front tyres	420/90 R 30 AScorrect
Rear tyres	520/85 R 42 AScorrect
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	492 lcorrect

Origin and approval

Construction	frame constructioncorrect

Other data

Linkage category	Cat IIIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 16.1 kW/t (147 kW / 9.2 t)

Power class: Heavy (> 180 hp)

Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH MX 210 have?

The Case IH MX 210 delivers 200 hp.

How much does the Case IH MX 210 weigh?

The unladen weight is 9,165 kg.

What engine does the Case IH MX 210 have?

6 cylinders, 8,268 cm³ displacement, Diesel.

How fast does the Case IH MX 210 go?

Top speed is 40 km/h.

What are the dimensions of the Case IH MX 210?

5,690 mm × 3,048 mm × 3,150 mm.

When was the Case IH MX 210 built?

Production years: 2002–2005.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
