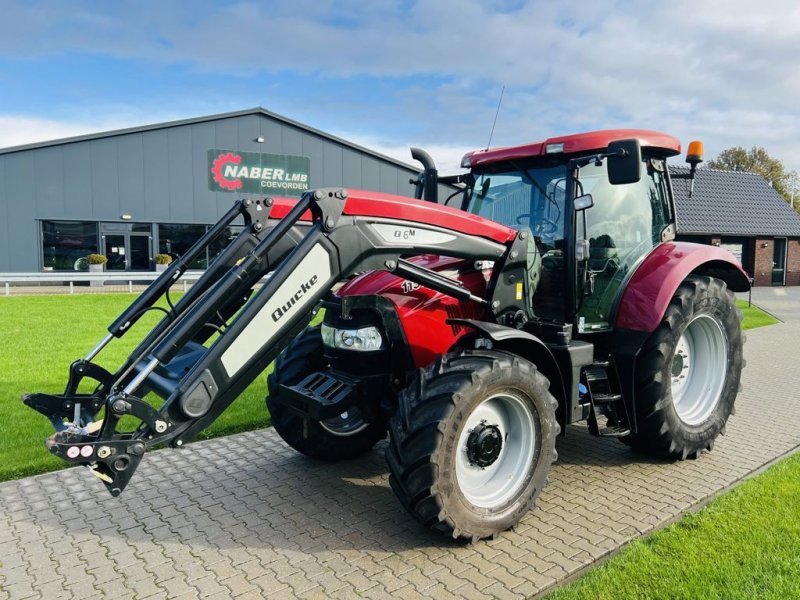

Case IH MAXXUM 115 LIMITED (2007-2011) 4WD – specifications
Series: Maxxum
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Maxxum 115 Limited is a tractor of the second Maxxum generation, produced between 2007 and 2011 as a mid-range model below the Puma series. This series positioned itself as the successor to the older 5100 series and targeted farms requiring a higher performance class than the predecessor models without entering the premium segment directly. The name Maxxum was first introduced in 1989 to designate this specific product line.
The vehicle is powered by a six-cylinder Case IH engine with a displacement of 6,700.7 cm³. Turbocharging with intercooling enables efficient combustion and high torque. The powershift transmission offers 16 forward and 16 reverse gears, allowing flexible speed adjustment for various field operations. The lifting capacity of 4,364 kg permits the use of heavy rear-mounted implements. With a width of 2,170.2 mm and a cab height of 2,900.2 mm, the tractor falls within typical dimensions for this vehicle class.
Within the recorded Maxxum data, the lifting capacity ranges from 3,406 to 7,864 kg. The Maxxum 115 Limited, with its 4,364 kg, lies in the lower range of this span. Engine power for the series ranges from 66 to 170 kW, with displacement varying between 3,920 and 7,480 cm³. The operating weight of the models fluctuates between 4,573.6 and 7,980 kg. The wheelbase in this series ranges from 2,345 to 2,664 mm. The PTO power of the recorded variants ranges from 90 to 120 hp.
Case IH Maxxum – One Name for Two Tractor Generations Since 1989, with Four- and Six-Cylinder Engines, 66 to 170 kW and Operating Weight from 4,573.6 to 7,980 kg
Case IH first used the Maxxum name in 1989 for its 5100 series, then revived it in 2007 for a second generation positioned as a mid-range model below the Puma line. These two eras explain the wide spread of the register data: four- and six-cylinder engines with displacement from 3,920 to 7,480 cm³, output from 66 to 170 kW, and PTO ratings from 90 to 120 hp among the recorded models.
Read on 3 more paragraphs
Recorded operating weight ranges from 4,573.6 to 7,980 kg, wheelbase from 2,345 to 2,664 mm, and hydraulic lift capacity from 3,406 to 7,864 kg. Top speed spans from 25 km/h on older mechanical versions to 50 km/h on newer CVX-equipped variants.
For buyers, identifying the generation matters most: the 1990s 5100 series is a fundamentally different tractor from the Maxxum built since 2007, which in the current line-up sits above the Farmall range and below the Puma.
With rated outputs from 66 to 170 kW, the Maxxum spans ISO 730 Category II to III for the rear three-point hitch across both generations, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, whichever generation of Maxxum happens to be involved.
Sources: SpecCodex register, model data: Case IH Maxxum, Case IH
Technical data
Engine
| Engine make | Case IHcorrect |
|---|---|
| Engine model | Maxxum 115 Limited (2007-2011)correct |
| Cylinders | 6correct |
| Displacement | 6,700.7 cm³correct |
| Aspiration | Turbocharged with air-to-air intercoolercorrect |
Dimensions and weights
| Width | 2,170.2 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | Semi powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Lifting capacity | 4,364 kgcorrect |
|---|
Other data
| Cab height | 2,900.2 mmcorrect |
|---|
Frequently asked questions
What engine does the Case IH MAXXUM 115 LIMITED (2007-2011) have?
6 cylinders, 6,701 cm³ displacement.
How much does the rear linkage of the Case IH MAXXUM 115 LIMITED (2007-2011) lift?
The rear linkage lifts 4,364 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
