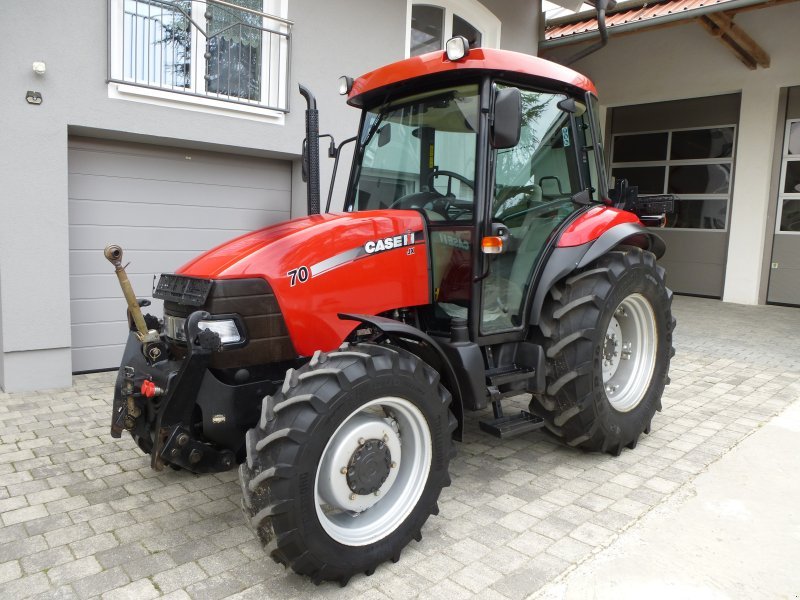

Case IH JX 70 U (A)

Lata produkcji: 2002–2004 · Seria: JXU-Baureihe

Dane techniczne

ConstructionBlockbauweise
CoolingWasserkühlung
Cylinders4
Displacement cm33613 cm3
Drive typeHeck- oder Allradantrieb
FuelDiesel/RME
Gearbox24 V/24 R und 20 V/12 R
Ground clearance mm380 mm
Height mm2475 mm
Length mm3880 mm
Power km68 KM
Power kw50 kW
Rated rpm2.500 obr./min
Tires front7.50-20 ASF (A: 320/70 R 24 AS)
Tires rear480/70 R 30 AS
Top speed kmh30 km/h
Weight kg4150 kg
Wheelbase mm2314 mm
Width mm1990 mm

Inne modele tej serii

JX 100 U (A)

JX 80 U (A)

JX 90 U (A)
