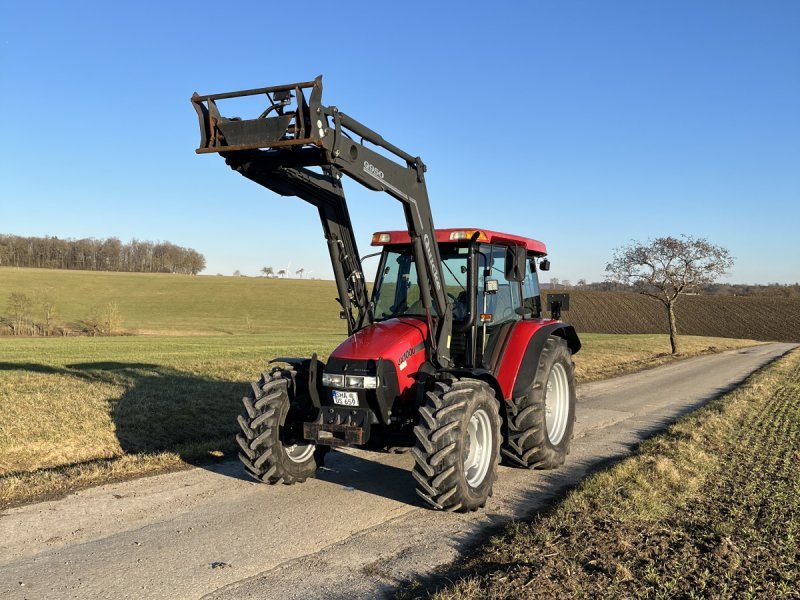

Case IH JX 100 U (A)

Lata produkcji: 2002–2004 · Seria: JXU-Baureihe

Dane techniczne

ConstructionBlockbauweise
CoolingWasserkühlung
Cylinders4
Displacement cm33908 cm3
Drive typeHeck- oder Allradantrieb
FuelDiesel/RME
Gearbox24 V/24 R und 20 V/12 R
Ground clearance mm440 mm
Height mm2750 mm
Length mm3880 mm
Power km97 KM
Power kw71.3 kW
Rated rpm2.500 obr./min
Tires front7.50-20 ASF (A: 380/70 R 24 AS)
Tires rear480/70 R 34 AS
Top speed kmh30 km/h
Weight kg3735 kg
Wheelbase mm2314 mm
Width mm1990 mm

Inne modele tej serii

JX 70 U (A)

JX 80 U (A)

JX 90 U (A)
