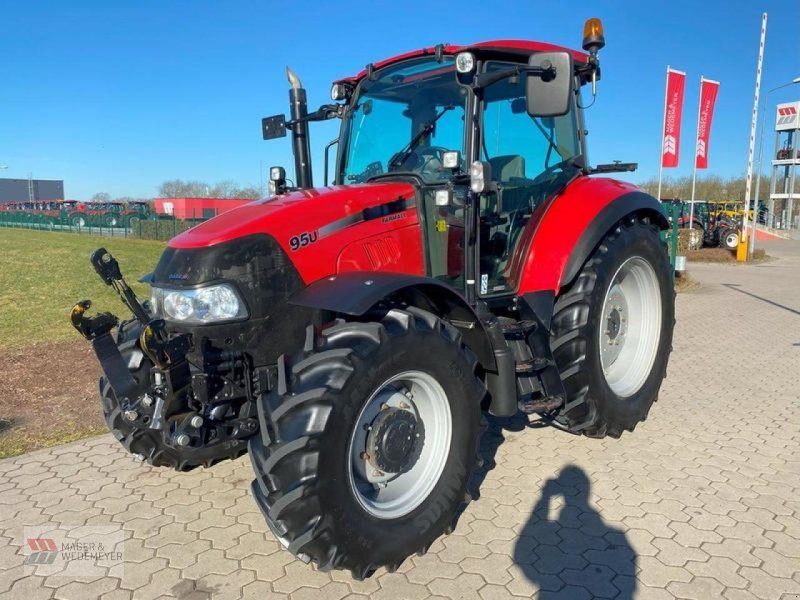

Case IH Farmall 95U (3100 kg)

Built: Year not documented · Series: Farmall U

← Predecessor: JX1090U

Source: https://www.technikboerse.com/gebraucht/traktor-357/case-ih-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH Farmall 95U is a model in the Farmall U series. The engine delivers 80 hp (60 kW), has 4 cylinders, with a displacement of 4,500 cm³. The engine comes from FPT. Rated speed is 2,300 rpm. The machine is 4,372 mm long, 2,550 mm wide and 2,604 mm high. The unladen weight is 3,100 kg. The wheelbase measures 2,314 mm. Lifting capacity is 2,606 kg. The engine is water-cooled. The model was built in Jesi, Italy. The gross vehicle weight is 7,400 kg. The fuel is diesel. The linkage is category II. Its predecessor was the Case IH JX1090U. The PTO runs at 540/1000 rpm. The Farmall U series covers 4 models. Rated output within it ranges from 70 to 120 hp; the Farmall 95U sits in the lower part of that range with 80 hp. Its immediate neighbours are the Farmall 85U below it with 70 hp and the Farmall 105U above it with 90 hp. Unladen weight within it ranges from 2,900 to 4,550 kg; here the Farmall 95U sits at the bottom of that range with 3,100 kg. 1222 Case IH models across 76 series are on record.

Case IH Farmall U – utility tractors from Turkey and Basildon: four-cylinder FPT engines, 52 to 88 kW, Farmall 85U to 120U models, a revived heritage name

The Case IH Farmall U is a utility range that Case IH built at its Turkish plant and at its Basildon works in the UK. The Farmall name revives the historic International Harvester tractor brand, while the U in the designation stands for Utility. The register covers the Farmall 85U, 95U, 105U and 120U models, whose number indicates the approximate horsepower class; they are powered by four-cylinder FPT diesel engines.

Read on 3 more paragraphs

The register holds 4 versions rated at 52 to 88 kW (70 to 120 hp), with four-cylinder engines of 3,400 to 4,500 cm³. Weights range from 2,900 to 4,550 kg, with a gross vehicle weight of up to 7,400 kg. Lift capacity falls between 2,606 and 3,667 kg, and cab heights between 2,604 and 2,718 mm. Engine speed is 2,300 rpm, running on diesel.

As utility tractors, the Farmall U models filled the middle power segment between compact yard tractors and large all-round tractors, aimed at mixed farms with field, haulage and front-loader work. By reviving the Farmall name, Case IH deliberately drew on the heritage of International Harvester.

When buying used, check the FPT engine and its injection system, the clutch and gearbox, and the front hydraulics if a front loader was fitted. Typical checkpoints are rust on the mudguards, steps and cab frame, and the condition of the cab seals; spare parts are readily available through the Case IH dealer network.

Sources: SpecCodex register, model data: Case IH Farmall U, Case IH

Technical data

Engine

Engine make	FPTcorrect
Fuel	dieselcorrect
Power	80 hp (60 kW)correct
Rated speed	2,300 rpmcorrect
Cylinders	4correct
Displacement	4,500 cm³ (274 cu in)correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,372 mmcorrect
Width	2,550 mmcorrect
Height	2,604 mmcorrect
Height	100.8 to 117.5 incorrect
Wheelbase	2,314 mm (92.2 in (2WD) ; 92.5 in (MFWD))correct
Unladen weight	3,100 kg (7.275 to 7936 lbs)correct
Gross vehicle weight	7,400 kgcorrect

Drivetrain and chassis

Drive	rear-wheel driveWD/MFWDcorrect

Working data

Lifting capacity	2,606 kgcorrect
Lifting capacity	5745 lbs (2605.9 kg)correct
Fuel tank capacity	33.4 galcorrect

Origin and approval

Plant	Jesi, Italycorrect

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000correct
Predecessor	Case IH JX1090Ucorrect

Where this model stands

Power-to-weight ratio: 19.4 kW/t (60 kW / 3.1 t)

Power class: Universal (40–100 hp)

Stronger than 56% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH Farmall 95U have?

The Case IH Farmall 95U delivers 80 hp.

How much does the Case IH Farmall 95U weigh?

The unladen weight is 3,100 kg.

What is the gross vehicle weight of the Case IH Farmall 95U?

7,400 kg.

What engine does the Case IH Farmall 95U have?

4 cylinders, 4,500 cm³ displacement, Diesel.

How much does the rear linkage of the Case IH Farmall 95U lift?

The rear linkage lifts 2,606 kg.

What are the dimensions of the Case IH Farmall 95U?

4,372 mm × 2,550 mm × 2,604 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
