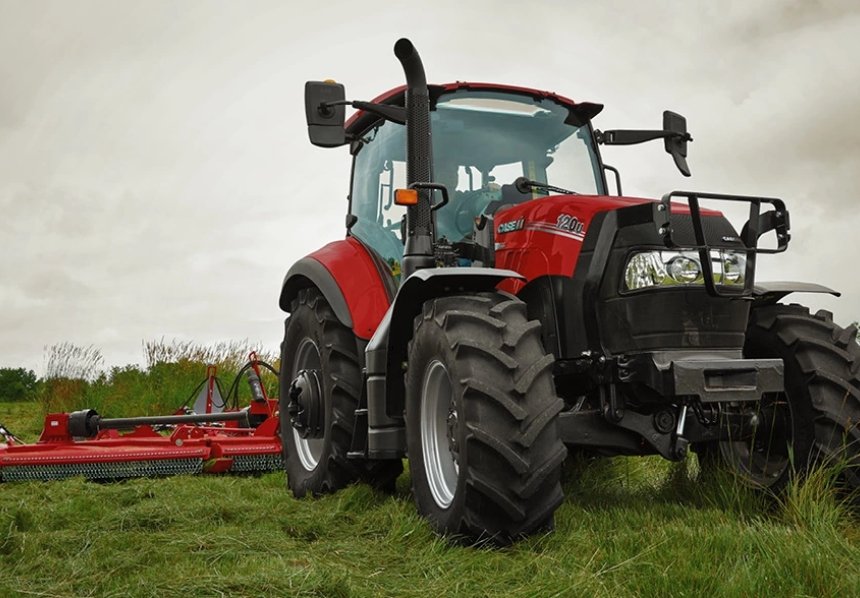

Case IH Farmall 120U

Built: Year not documented · Series: Farmall U

Source: https://www.lectura-specs.com/en/model/agricultural-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH Farmall 120U belongs to the Farmall U series. The engine delivers 120 hp (88 kW), has 4 cylinders, with a displacement of 3,400 cm³. The engine comes from Case IH FPT. Rated speed is 2,300 rpm. The machine is 2,718 mm high. The unladen weight is 4,550 kg. The wheelbase measures 2,380 mm. Lifting capacity is 3,667 kg. The tank holds 165 litres. The engine is water-cooled. The gearbox has 16 forward gears. There are also 16 reverse gears. The fuel is diesel. The engine fitted is the 3.4. The Farmall U series covers 4 models. Rated output within it ranges from 70 to 120 hp; the Farmall 120U sits at the top of that range with 120 hp. Its immediate neighbours are the Farmall 105U below it with 90 hp. Unladen weight within it ranges from 2,900 to 4,550 kg; here the Farmall 120U sits at the top of that range with 4,550 kg. 1222 Case IH models across 76 series are on record.

Case IH Farmall U – utility tractors from Turkey and Basildon: four-cylinder FPT engines, 52 to 88 kW, Farmall 85U to 120U models, a revived heritage name

The Case IH Farmall U is a utility range that Case IH built at its Turkish plant and at its Basildon works in the UK. The Farmall name revives the historic International Harvester tractor brand, while the U in the designation stands for Utility. The register covers the Farmall 85U, 95U, 105U and 120U models, whose number indicates the approximate horsepower class; they are powered by four-cylinder FPT diesel engines.

Read on 3 more paragraphs

The register holds 4 versions rated at 52 to 88 kW (70 to 120 hp), with four-cylinder engines of 3,400 to 4,500 cm³. Weights range from 2,900 to 4,550 kg, with a gross vehicle weight of up to 7,400 kg. Lift capacity falls between 2,606 and 3,667 kg, and cab heights between 2,604 and 2,718 mm. Engine speed is 2,300 rpm, running on diesel.

As utility tractors, the Farmall U models filled the middle power segment between compact yard tractors and large all-round tractors, aimed at mixed farms with field, haulage and front-loader work. By reviving the Farmall name, Case IH deliberately drew on the heritage of International Harvester.

When buying used, check the FPT engine and its injection system, the clutch and gearbox, and the front hydraulics if a front loader was fitted. Typical checkpoints are rust on the mudguards, steps and cab frame, and the condition of the cab seals; spare parts are readily available through the Case IH dealer network.

Sources: SpecCodex register, model data: Case IH Farmall U, Case IH

Technical data

Engine

Engine make	Case IH FPTcorrect
Engine model	3.4 Lcorrect
Fuel	dieselcorrect
Power	120 hp (88 kW)correct
Rated speed	2,300 rpmcorrect
Cylinders	4correct
Displacement	3,400 cm³correct
Aspiration	Wastegate Turbocharger, air-to-air aftercooledcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Width	2,248.2 mmcorrect
Height	2,718 mm (with cab)correct
Wheelbase	2,380 mmcorrect
Unladen weight	4,550 kgcorrect

Drivetrain and chassis

Gearbox type	4 powershift transmission speeds in 4 ranges (2 synchromesh gearbox)correct
Forward gears	16correct
Reverse gears	16correct

Working data

Lifting capacity	3,667 kgcorrect
Fuel tank capacity	165 lcorrect

Other data

Cab height	2,745.2 mmcorrect

Where this model stands

Power-to-weight ratio: 19.3 kW/t (88 kW / 4.5 t)

Power class: Large (100–180 hp)

Stronger than 74% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH Farmall 120U have?

The Case IH Farmall 120U delivers 120 hp.

How much does the Case IH Farmall 120U weigh?

The unladen weight is 4,550 kg.

What engine does the Case IH Farmall 120U have?

4 cylinders, 3,400 cm³ displacement, Diesel.

How much does the rear linkage of the Case IH Farmall 120U lift?

The rear linkage lifts 3,667 kg.

What are the dimensions of the Case IH Farmall 120U?

2,248 mm × 2,718 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
