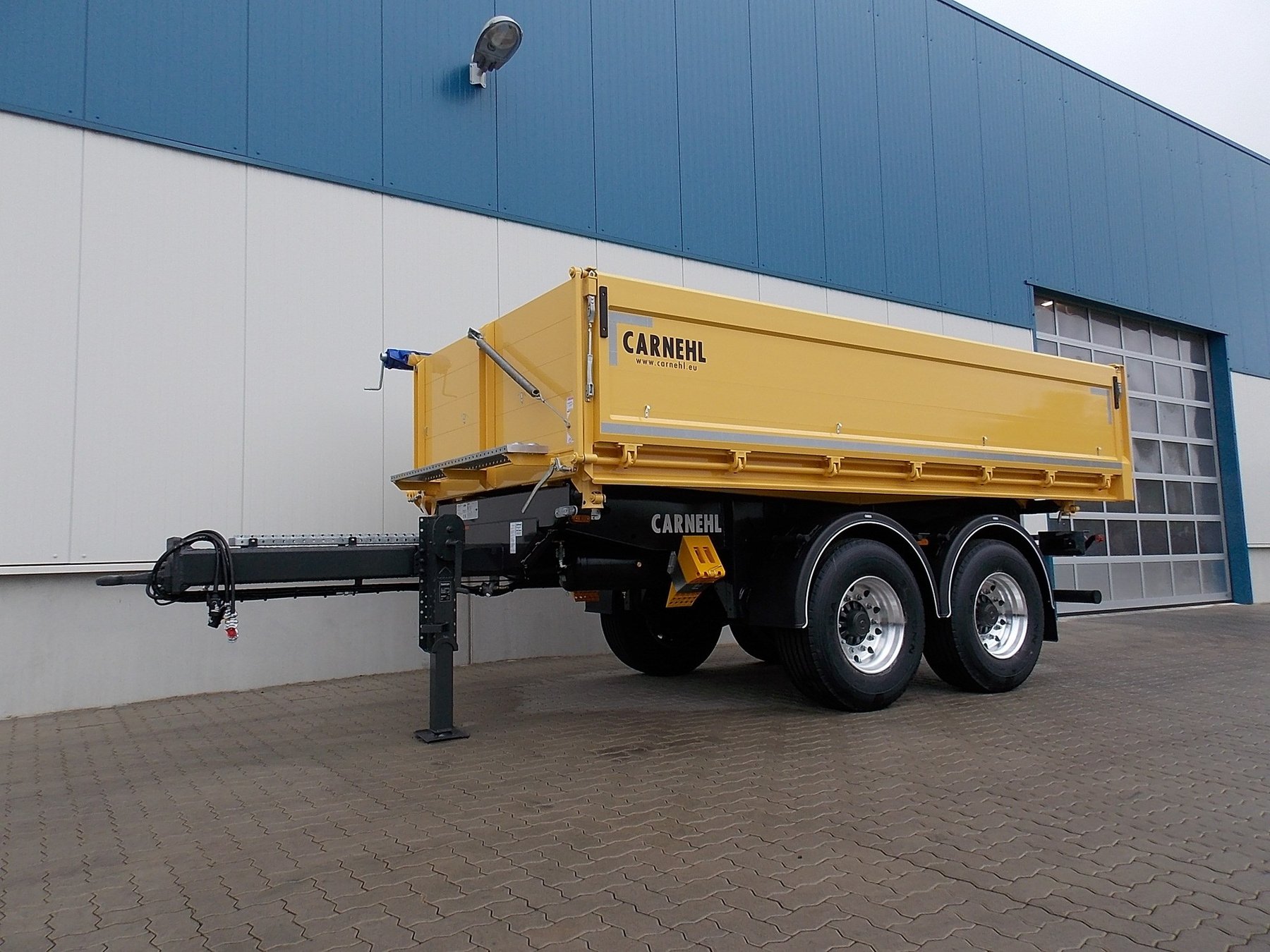

Carnehl CHKS/PH
Built: 2015 · Series: CHKS
More machines from model year 2015
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Carnehl CHKS – range: a heavy tipping semi-trailer from Emsland in numerous body and equipment variants, unladen weight 5,320 to 8,950 kg, gross weight 34 to 45 tonnes
Carnehl of Meppen in Emsland builds tipping and low-loader semi-trailers for construction and bulk-goods haulage; the CHKS range is the manufacturer's tipping semi-trailer line. The suffixes after the slash distinguish the versions: CHKS/AH, CHKS/GAL, CHKS/PH and CHKS/STH denote different side-board, aluminium and floor variants, CHKS 1A a separate equipment level, and the number suffix in CHKS/STH/332+131+131 gives a specific axle or side-board dimension configuration of that version.
Read on 3 more paragraphs
The register lists here 9 versions with unladen weights from 5,320 to 8,950 kg, gross weights from 34,000 to 45,000 kg, lengths from 8,540 to 12,850 mm and widths from 2,550 to 2,580 mm.
As a heavy tipping semi-trailer, the CHKS belongs among the standard vehicles in construction, earthmoving and recycling haulage, where tipper combinations move bulk goods such as sand, gravel, rubble or asphalt between the extraction site and the construction site; the shorter lengths from 8.5 m indicate more compact versions for urban use, the long ones up to 12.85 m the classic construction tipper configuration.
On a used tipping semi-trailer, the condition and tightness of the tipping body, the function and tightness of the tipping ram, wear on side boards and hinges, the condition of axles and brakes, and rust on the chassis and kingpin housing count; on aluminium bodies, additionally cracks and dents in the light alloy.
Sources: SpecCodex register, model data: Carnehl CHKS, Carnehl Fahrzeugbau (manufacturer)
Technical data
Dimensions and weights
| Length | 11,740 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 8,820 mmcorrect |
| Unladen weight | 8,950 kgcorrect |
| Gross vehicle weight | 38,500 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Carnehl CHKS/PH weigh?
The unladen weight is 8,950 kg.
What is the gross vehicle weight of the Carnehl CHKS/PH?
38,500 kg.
Up to what speed is the Carnehl CHKS/PH approved?
Approved up to 100 km/h.
What are the dimensions of the Carnehl CHKS/PH?
11,740 mm × 2,550 mm.
When was the Carnehl CHKS/PH built?
Production years: 2015.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
