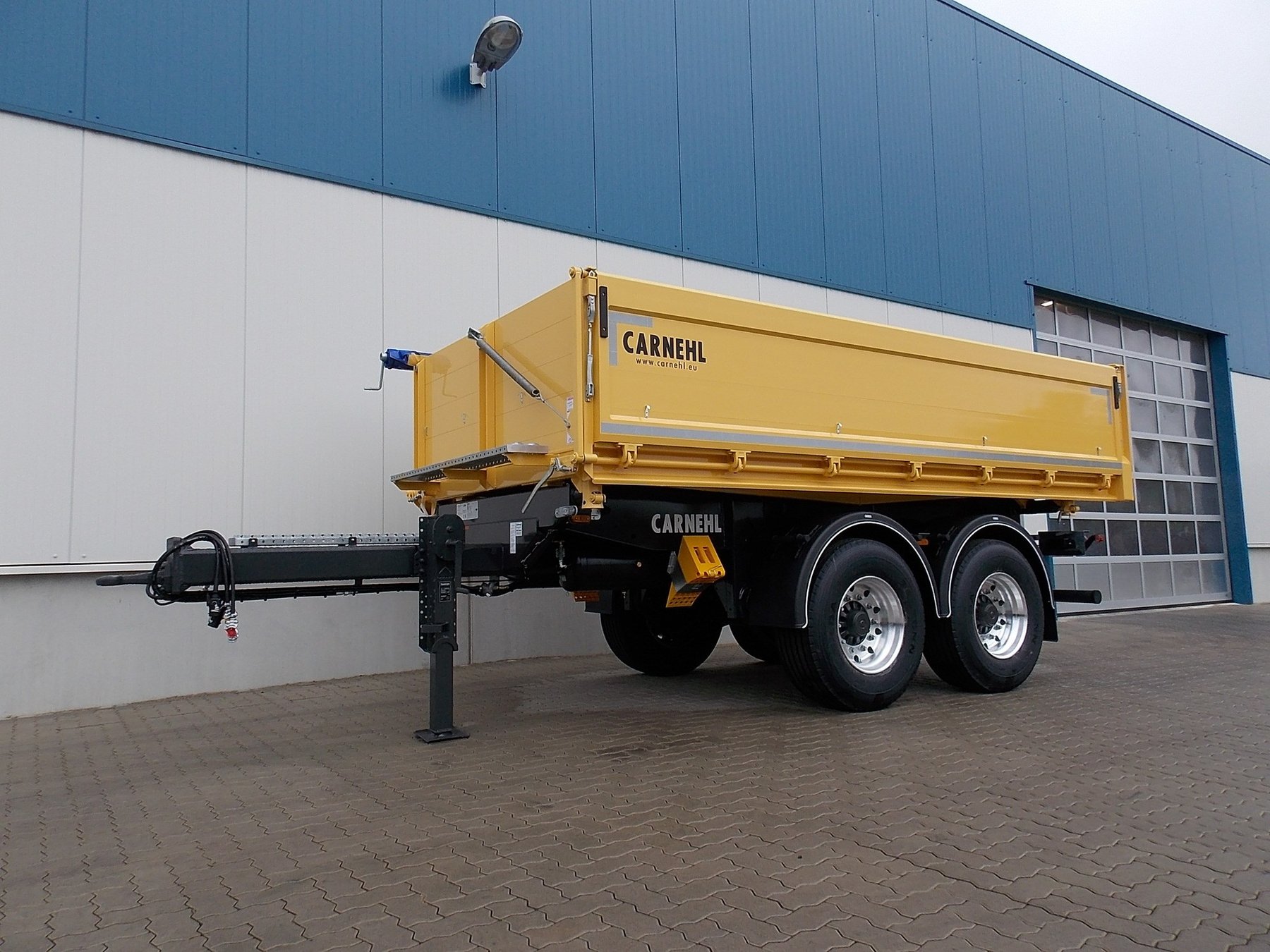

Carnehl CHKS
Built: 2004-2024 · Series: CHKS
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Carnehl CHKS – range: a heavy tipping semi-trailer from Emsland in numerous body and equipment variants, unladen weight 5,320 to 8,950 kg, gross weight 34 to 45 tonnes
Carnehl of Meppen in Emsland builds tipping and low-loader semi-trailers for construction and bulk-goods haulage; the CHKS range is the manufacturer's tipping semi-trailer line. The suffixes after the slash distinguish the versions: CHKS/AH, CHKS/GAL, CHKS/PH and CHKS/STH denote different side-board, aluminium and floor variants, CHKS 1A a separate equipment level, and the number suffix in CHKS/STH/332+131+131 gives a specific axle or side-board dimension configuration of that version.
Read on 3 more paragraphs
The register lists here 9 versions with unladen weights from 5,320 to 8,950 kg, gross weights from 34,000 to 45,000 kg, lengths from 8,540 to 12,850 mm and widths from 2,550 to 2,580 mm.
As a heavy tipping semi-trailer, the CHKS belongs among the standard vehicles in construction, earthmoving and recycling haulage, where tipper combinations move bulk goods such as sand, gravel, rubble or asphalt between the extraction site and the construction site; the shorter lengths from 8.5 m indicate more compact versions for urban use, the long ones up to 12.85 m the classic construction tipper configuration.
On a used tipping semi-trailer, the condition and tightness of the tipping body, the function and tightness of the tipping ram, wear on side boards and hinges, the condition of axles and brakes, and rust on the chassis and kingpin housing count; on aluminium bodies, additionally cracks and dents in the light alloy.
Sources: SpecCodex register, model data: Carnehl CHKS, Carnehl Fahrzeugbau (manufacturer)
Technical data
Dimensions and weights
| Length | 9,720 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,590 mmcorrect |
| Unladen weight | 6,980 kgcorrect |
| Gross vehicle weight | 44,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Carnehl CHKS weigh?
The unladen weight is 6,980 kg.
What is the gross vehicle weight of the Carnehl CHKS?
44,000 kg.
Up to what speed is the Carnehl CHKS approved?
Approved up to 100 km/h.
What are the dimensions of the Carnehl CHKS?
9,720 mm × 2,550 mm.
When was the Carnehl CHKS built?
Production years: 2004-2024.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
