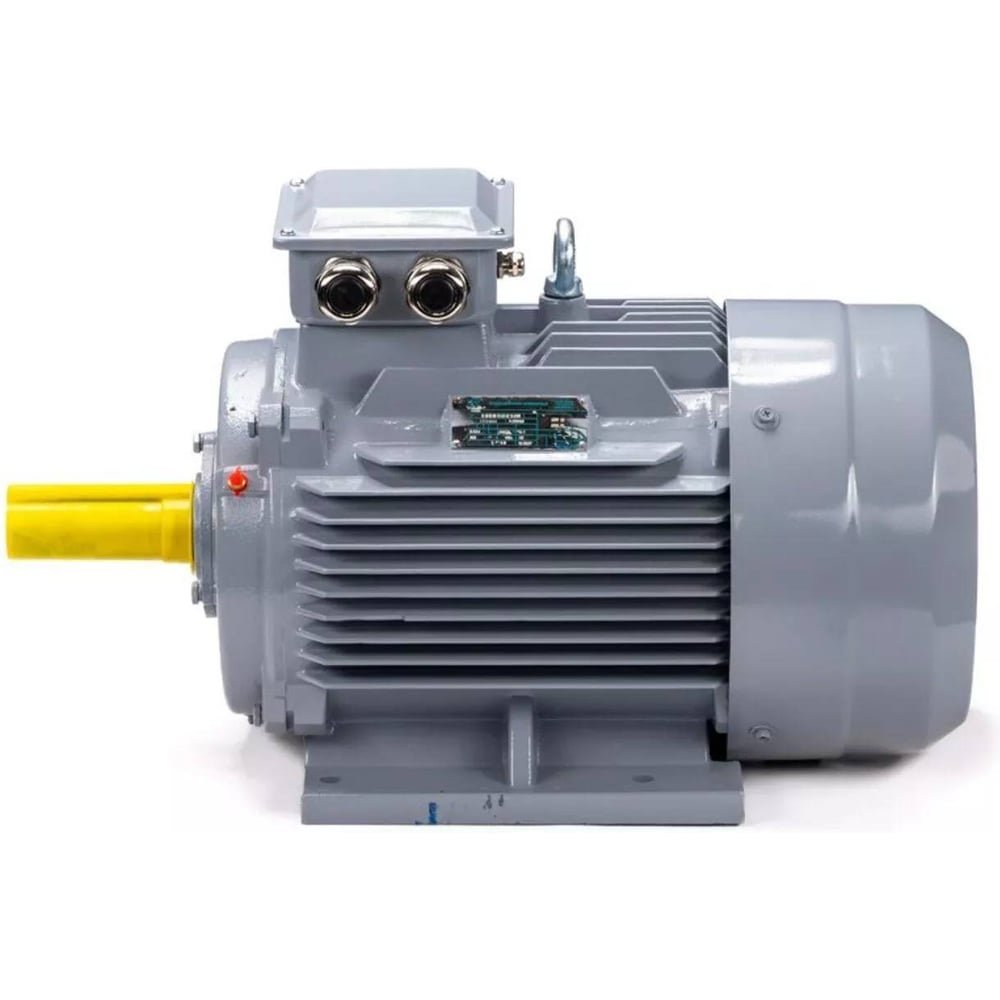

Burt GBM22-180M-2

Series: Other models

Source: nnov.kuvalda.ru

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Burt lists the GBM22-180M-2 as a three-phase induction motor. The rated output is 22 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 180 M in foot-mounted form. The protection class is IP55. The efficiency is 92.5 per cent at full load, 93.4 per cent at 75 per cent load and 86 per cent at half load. The motor weighs 180 kg. At full load it delivers 73.5 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B35 and V1. The motor is built in Malaysia. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the Burt range ranges from 0.75 to 110 kW; the GBM22-180M-2 sits in the lower part of that range with 22 kW. Its immediate neighbours are the GBM18.5-180M-4 below it with 18.5 kW and the GBM30-200L-2 above it with 30 kW. 24 Burt models are on record.

Burt – other models: the collective page of GBM three-phase motors with output and frame size in the name, outside the named ranges, 0.75 to 110 kW, 2- to 4-pole, IP55, made in Malaysia

This page gathers the Burt three-phase motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. The GBM model designation carries output, frame size and pole count directly in the name, for example GBM18.5-160L-2 for the two-pole 18.5 kW version of frame size 160L or GBM110-280M-2 for the two-pole 110 kW version of frame size 280M.

Read on 3 more paragraphs

The register lists here 24 versions with 0.75 to 110 kW, two- to four-pole, at mains voltages from 400 to 415 V. Full-load efficiencies range from 81.5 to 95.5% and at 75% load from 82.5 to 95%. Frame sizes run from 80 to 280 under IEC, all motors carry protection rating IP55 with a uniform mounting code B3/B5/B35/V1. Manufacturing is mainly in Malaysia, with a smaller share from Taiwan, tested to AS/NZS 1359.5:2004 with test method B.

With the output value spelt out directly in the model name, the programme makes for quick selection of a replacement; the wide power range from under a kilowatt to 110 kW covers applications from small auxiliary drives to pumps and compressors in the mid-range industrial segment.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and voltage; since none of the motors carries a High Efficiency classification, an efficiency comparison with newer IE2/IE3 models is worthwhile when replacing.

Sources: SpecCodex register, model data: Burt (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output22 kWcorrect

Dimensions and weights

Weight180 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size180 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1correct
Efficiency at full load92.5 %correct
Efficiency at 75 % load93.4 %correct
Efficiency at half load86 %correct

Origin and approval

Country of manufactureMalaysiacorrect

Other data

Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Burt GBM22-180M-2 have?

The Burt GBM22-180M-2 delivers 22 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
