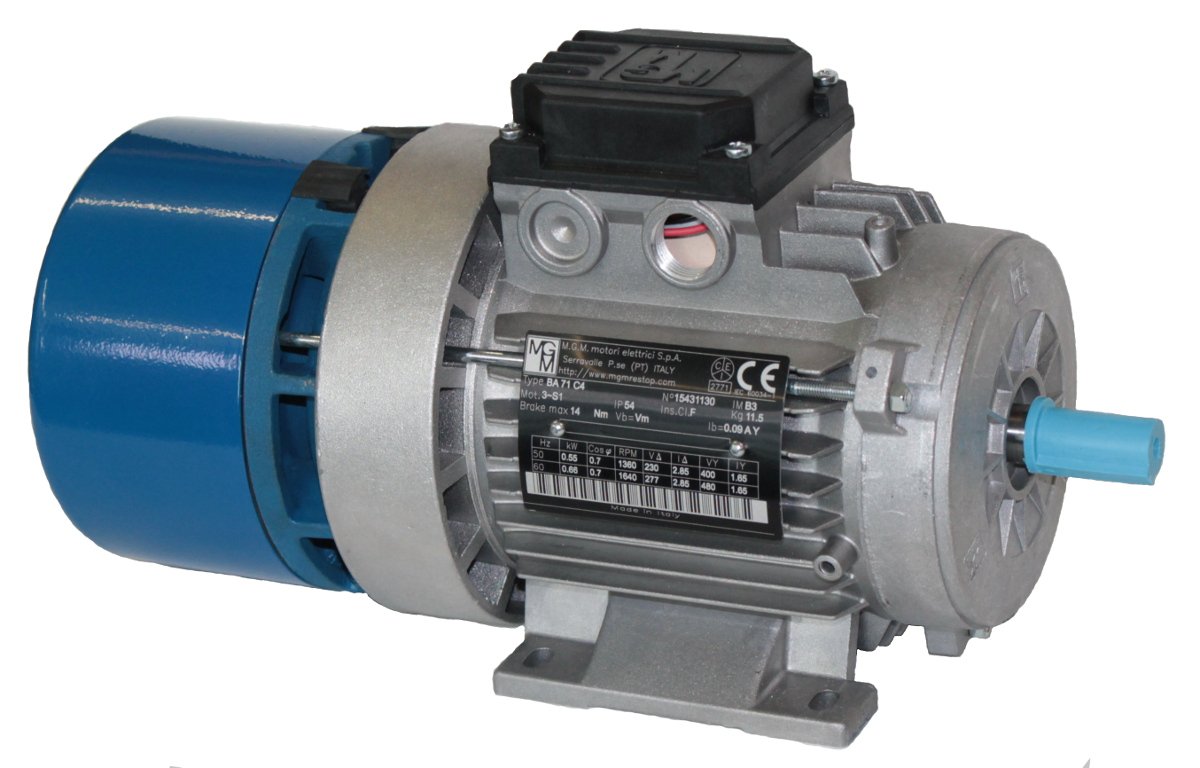

Burt GBM0.75-80M-4

Series: Other models

Source: blecher.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Burt GBM0.75-80M-4 is a three-phase induction motor from the Burt range. The rated output is 0.75 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 80 M in foot-mounted form. The protection class is IP55. The efficiency is 81.5 per cent at full load, 82.5 per cent at 75 per cent load and 76 per cent at half load. The motor weighs 17 kg. At full load it delivers 5.25 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B35 and V1. The motor is built in Malaysia. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the Burt range ranges from 0.75 to 110 kW; the GBM0.75-80M-4 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the GBM5.5-132S-2 above it with 5.5 kW. 24 Burt models are on record.

Burt – other models: the collective page of GBM three-phase motors with output and frame size in the name, outside the named ranges, 0.75 to 110 kW, 2- to 4-pole, IP55, made in Malaysia

This page gathers the Burt three-phase motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. The GBM model designation carries output, frame size and pole count directly in the name, for example GBM18.5-160L-2 for the two-pole 18.5 kW version of frame size 160L or GBM110-280M-2 for the two-pole 110 kW version of frame size 280M.

Read on 3 more paragraphs

The register lists here 24 versions with 0.75 to 110 kW, two- to four-pole, at mains voltages from 400 to 415 V. Full-load efficiencies range from 81.5 to 95.5% and at 75% load from 82.5 to 95%. Frame sizes run from 80 to 280 under IEC, all motors carry protection rating IP55 with a uniform mounting code B3/B5/B35/V1. Manufacturing is mainly in Malaysia, with a smaller share from Taiwan, tested to AS/NZS 1359.5:2004 with test method B.

With the output value spelt out directly in the model name, the programme makes for quick selection of a replacement; the wide power range from under a kilowatt to 110 kW covers applications from small auxiliary drives to pumps and compressors in the mid-range industrial segment.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and voltage; since none of the motors carries a High Efficiency classification, an efficiency comparison with newer IE2/IE3 models is worthwhile when replacing.

Sources: SpecCodex register, model data: Burt (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output0.75 kWcorrect

Dimensions and weights

Weight17 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size80 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1correct
Efficiency at full load81.5 %correct
Efficiency at 75 % load82.5 %correct
Efficiency at half load76 %correct

Origin and approval

Country of manufactureMalaysiacorrect

Other data

Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Burt GBM0.75-80M-4 have?

The Burt GBM0.75-80M-4 delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
