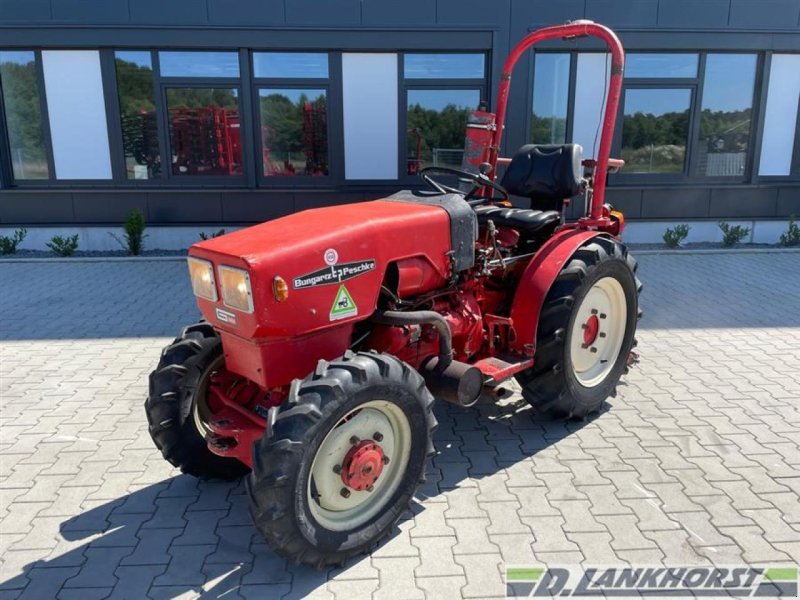

Bungartz & Peschke 8509
Built: 1970–1974 · Series: Kommutrac
More machines from model year 1970
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Bungartz & Peschke Kommutrac – the Munich implement carriers 8501 to 8509 for municipal work and landscaping, petrol and diesel, 1950s/60s
Bungartz & Peschke was a Munich maker of implement carriers built under the name Kommutrac for municipal and agricultural use. The 8501, 8502 A, 8507 and 8509 models from the 1950s and 1960s were designed as carriers for interchangeable mounted implements, as used in road maintenance and public green-space work, with two- to four-cylinder engines available in petrol or diesel form.
Read on 3 more paragraphs
The register lists here 4 versions with two- to four-cylinder engines of 1,493 to 2,014 cm³ displacement and a uniform width of 1,005 mm; the fuel recorded is mostly petrol, with diesel on one model.
As an implement carrier, the Kommutrac occupied a niche between classic field tractors and pure municipal vehicles, as also built for similar purposes by makers such as Holder or Kramer, and targeted towns, municipalities and horticultural businesses that needed one vehicle with interchangeable tools for sweeping, mowing and winter road service.
Used, the Kommutrac calls for checking engine condition and the carburettor or injection pump depending on fuel type, the condition of the mounting interfaces for interchangeable implements, clutch and transmission, and brakes and hydraulics; because of the low production numbers, parts are today mostly available only through collectors and specialist dealers rather than a regular supply chain.
Sources: SpecCodex register, model data: Bungartz & Peschke Kommutrac
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (26.5 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 2,014 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Width | 1,005 mmcorrect |
|---|
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | Hurth 6/6correct |
| Top speed | 20 km/hcorrect |
Frequently asked questions
How much power does the Bungartz & Peschke 8509 have?
The Bungartz & Peschke 8509 delivers 35 hp.
What engine does the Bungartz & Peschke 8509 have?
2 cylinders, 2,014 cm³ displacement, Diesel.
How fast does the Bungartz & Peschke 8509 go?
Top speed is 20 km/h.
When was the Bungartz & Peschke 8509 built?
Production years: 1970–1974.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
