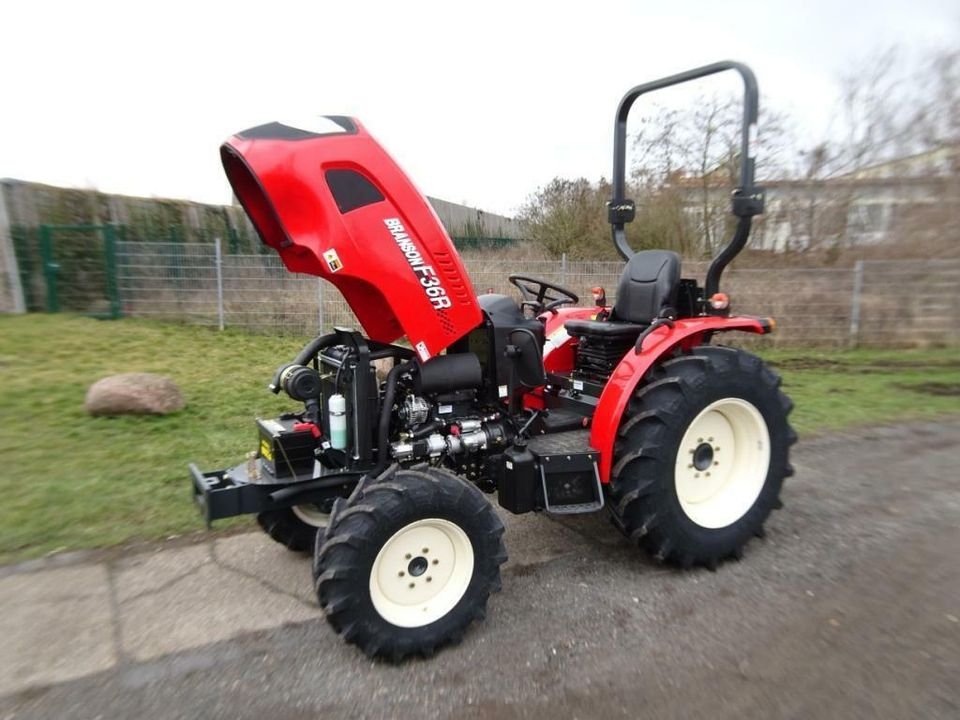

Branson F36Rn
Series: F
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Branson F25Rn and F36Rn – Korean compact tractors from Branson (Kukje): three-cylinder diesel engines of 18 to 26 kW, 1,431 to 1,458 kg, 1,500 kg lift capacity
Branson is a South Korean tractor brand of the Kukje group, building compact and small tractors mainly for the North American and European hobby and part-time farming market. The F range includes the F25Rn and F36Rn types listed here, whose numbers indicate the approximate power class in horsepower, while the Rn suffix refers to a particular equipment or gearbox variant within the range.
Read on 3 more paragraphs
The register lists here 2 versions with 18 to 26 kW, or 25 to 35 hp, from three-cylinder diesel engines of 1,714 cm³ displacement at 2,600 rpm, weights from 1,431 to 1,458 kg, a gross weight of 2,500 kg, a lift capacity of 1,500 kg, a length of 3,429 mm, widths from 1,330 to 1,450 mm and a height of 2,643 mm.
In this power segment Branson competes with other Korean brands such as Kioti and LS Tractor, and with the compact ranges from Kubota, Massey Ferguson and New Holland; the Korean makers' traditional advantage lies in a lower price for comparable basic equipment with a front loader and hydrostatic or mechanical transmission.
Buying one of these compact tractors used, the condition and tightness of the hydraulics for the front loader and lift, the condition of the clutch and gearbox, and rust on the cab and bonnet matter; the PTO clutch and tyres are also worth checking. Spare parts run through the Branson distribution organisations in each country, which have by now built a wide dealer network for this relatively young brand.
Sources: SpecCodex register, model data: Branson F
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (26 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,714 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,429 mmcorrect |
|---|---|
| Width | 1,450 mmcorrect |
| Height | 2,643 mmcorrect |
| Wheelbase | 1,670 mmcorrect |
| Ground clearance | 330 mmcorrect |
| Unladen weight | 1,458 kgcorrect |
| Gross vehicle weight | 2,500 kgcorrect |
Drivetrain and chassis
| Gears | 4correct |
|---|
Working data
| Lifting capacity | 1,500 kgcorrect |
|---|
Where this model stands
Power-to-weight ratio: 17.8 kW/t (26 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Branson F36Rn have?
The Branson F36Rn delivers 35 hp.
How much does the Branson F36Rn weigh?
The unladen weight is 1,458 kg.
What is the gross vehicle weight of the Branson F36Rn?
2,500 kg.
What engine does the Branson F36Rn have?
3 cylinders, 1,714 cm³ displacement, Diesel.
How much does the rear linkage of the Branson F36Rn lift?
The rear linkage lifts 1,500 kg.
What are the dimensions of the Branson F36Rn?
3,429 mm × 1,450 mm × 2,643 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
