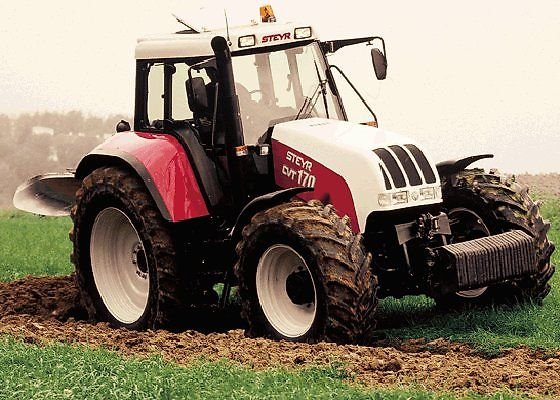

Steyr CVT170-9090-4X4/283
Built: 2004 · Series: Other models
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Steyr – other models: collective page of Austrian tractors outside the named ranges, from Kompakt through Profi to CVT and the large MT models, 22 to 146.2 kW
This page gathers the Steyr tractors the register could not assign to a named range, from small Kompakt models through the Profi range to the stepless CVT large tractors and the large MT models. Steyr builds its tractors at the St. Valentin plant in Upper Austria; the brand has belonged to CNH Industrial since the merger with Case IH in 1996 and has since shared platforms and engines with Case IH. The naming logic is clearly tiered: Kompakt denotes small yard tractors, Profi the mid-range, CVT the large tractors with stepless transmission.
Read on 3 more paragraphs
The register lists here 21 versions with 22 to 146.2 kW from two- to six-cylinder engines of 2,660 to 6,728.5 cm³, unladen weights of 1,800 to 6,650 kg, lengths of 2,630 to 4,790 mm, widths of 1,580 to 2,550 mm and heights of 2,400 to 2,920 mm; torque ranges from 216 to 632 Nm at rated speeds of 2,100 to 2,300 rpm, all with diesel engines.
Steyr positions itself as a premium brand for the Central European and alpine market, with a focus on hill farming and municipal uses where manoeuvrability and four-wheel drive are particularly in demand; main competitors are sister brand Case IH along with Fendt and John Deere.
When buying used, on the CVT models the transmission electronics and cooling matter, on the Kompakt and Profi the clutch, brakes and hydraulic pump; rust on the cab frame and mudguards is common on older models. Parts run through the shared Case IH and Steyr network.
Sources: SpecCodex register, model data: Steyr (weitere Modelle), Steyr Traktoren (manufacturer)
Technical data
Engine
| Power | 128 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,590 cm³correct |
Dimensions and weights
| Length | 4,790 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 6,650 kgcorrect |
| Gross vehicle weight | 11,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 19.2 kW/t (128 kW / 6.7 t)
Power class: Large (100–180 hp)
Stronger than 88% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr CVT170-9090-4X4/283 have?
The Steyr CVT170-9090-4X4/283 delivers 128 kW.
How much does the Steyr CVT170-9090-4X4/283 weigh?
The unladen weight is 6,650 kg.
What is the gross vehicle weight of the Steyr CVT170-9090-4X4/283?
11,000 kg.
What engine does the Steyr CVT170-9090-4X4/283 have?
6 cylinders, 6,590 cm³ displacement.
What are the dimensions of the Steyr CVT170-9090-4X4/283?
4,790 mm × 2,550 mm.
When was the Steyr CVT170-9090-4X4/283 built?
Production years: 2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
