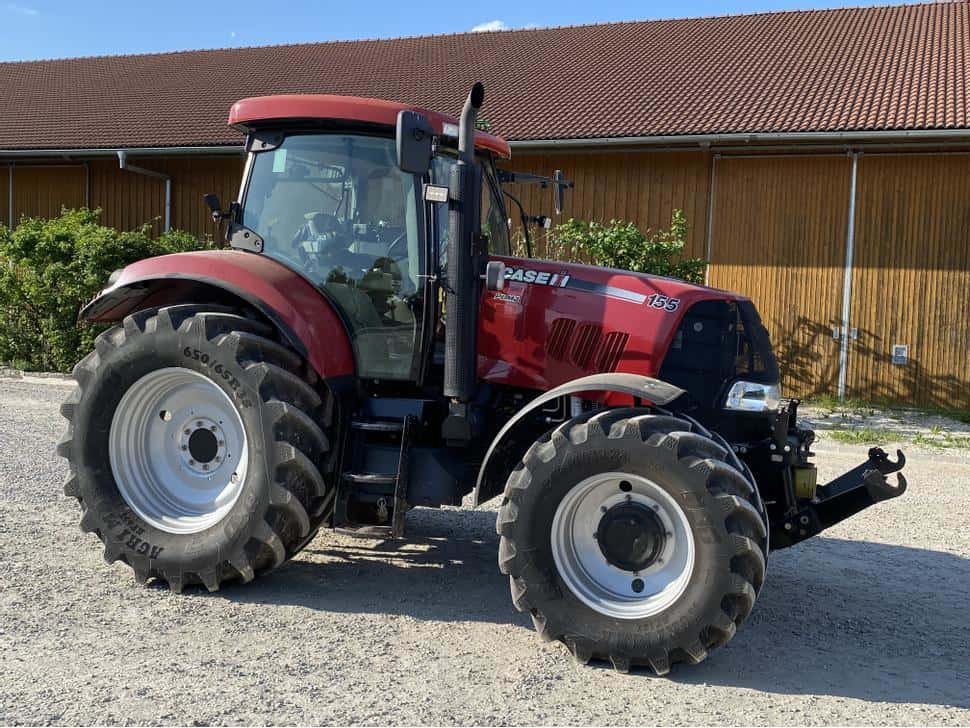

Case IH Puma 155 – specifications
Built: 2010 · Series: Other models
Data for the version built 2010 · Data origin: Official register · sources
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Puma 155 is a tractor from the Puma series manufactured by Case IH, produced in 2010. As a representative of this model line, it is positioned as a work machine for agricultural tasks requiring medium to high traction and a solid basic configuration. The design targets operations that wish to cover both crop farming and transport tasks with a single vehicle.
The technical equipment is based on a six-cylinder engine with a displacement of 6,728 cm³, delivering an output of 123 kW. This engine configuration enables the pulling of heavy mounted implements and the handling of demanding field work without excessive increases in engine speed. The empty weight of 6,900 kg ensures good traction, while the permissible gross weight of 10,500 kg allows for the addition of ballast weights or heavy trailers. The dimensions of 4,820 mm in length and 2,600 mm in width ensure a compact design that facilitates maneuvering on farmyards and in narrow field plots.
The transmission configuration offers 18 gears, allowing for flexible adjustment of travel speed to various working speeds. This number of gears covers both the low-speed range for precise soil cultivation and the higher-speed range for transport journeys. The tractor is typically suitable for tasks such as plowing, sowing, or pulling manure spreaders, whereby the combination of power and weight supports stable operation even on uneven terrain.
Case IH – other models: the collective page of tractors outside the named ranges, from the IH heritage (1056 XL, 1455 XL) through the 4200, 5100 and CS series to Farmall, Maxxum, Puma, Magnum and Steiger Quadtrac
This page gathers the Case IH tractors the register could not assign to a named range – the brand that emerged in 1985 when Tenneco bought the farm-equipment division of International Harvester and merged it with J.I. Case of Racine. The tractors therefore carry several origins: the IH 56 and 55 series from Neuss and Doncaster (1056 XL, 1455 XL, 1255) with the XL cab, the 4200 and 5100 (Maxxum) series from Neuss and Racine of the 1990s, the Steyr relatives CS and CVX after the merger into CNH in 1999, and today's Farmall (compact and utility tractors), Maxxum, Puma, Magnum and Steiger ranges, whose number gives the hp class – Puma 195 about 195 hp, Magnum 235 235 hp, Steiger 535 535 hp – and whose suffixes CVX, Quadtrac, Accusteer and Heavy-Duty mark the stepless transmission, the four-track undercarriage and chassis versions. The engines are IH's own in the old, Perkins in the small, FPT (NEF and Cursor) in the medium and big and Cummins in the oldest Steigers.
Read on 3 more paragraphs
The register lists here 275 versions with 17 to 398.9 kW from three- to six-cylinders of 2,539 to 14,994 cm³, PTO outputs from 45 to 473 hp, lift capacities from 742 to 19,620 kg, unladen weights from 2,115 to 24,494 kg, lengths from 3,390 to 6,040 mm and widths from 1,347 to 3,048 mm.
Case IH is New Holland's red sister in the CNH group, number two behind John Deere in North America and, with the Quadtrac, the inventor of the four-track big tractor; the Maxxum and Puma ranges are technically the twins of the Steyr Profi and CVT from St. Valentin.
On used tractors, clutch, transmission and XL cab count on the IH heirs, operating hours, powershift or CVX transmission, front-axle suspension and electronics on the Maxxum and Puma, engine, transmission and tyres or tracks on the Magnum and Steiger; parts run through CNH.
Sources: SpecCodex register, model data: Case IH (weitere Modelle), Case IH (CNH, Hersteller)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| PUMA 155 | 2007–2011 | 116.2 | e17*2003/37*0318*03 | Official register |
| PUMA 155 4WD | 2008 | 165 | e13*2003/37*0318*02 | Official register |
| ● Case IH Puma 155 | 2010 | 123 | e17*2003/37*0318*03 | Official register |
Technical data
Engine
| Power | 123 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 4,820 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Unladen weight | 6,900 kgcorrect |
| Gross vehicle weight | 10,500 kgcorrect |
Drivetrain and chassis
| Gears | 18correct |
|---|
Where this model stands
Power-to-weight ratio: 17.8 kW/t (123 kW / 6.9 t)
Power class: Large (100–180 hp)
Stronger than 87% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Puma 155 have?
The Case IH Puma 155 delivers 123 kW.
How much does the Case IH Puma 155 weigh?
The unladen weight is 6,900 kg.
What is the gross vehicle weight of the Case IH Puma 155?
10,500 kg.
What engine does the Case IH Puma 155 have?
6 cylinders, 6,728 cm³ displacement.
What are the dimensions of the Case IH Puma 155?
4,820 mm × 2,600 mm.
When was the Case IH Puma 155 built?
Production years: 2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
