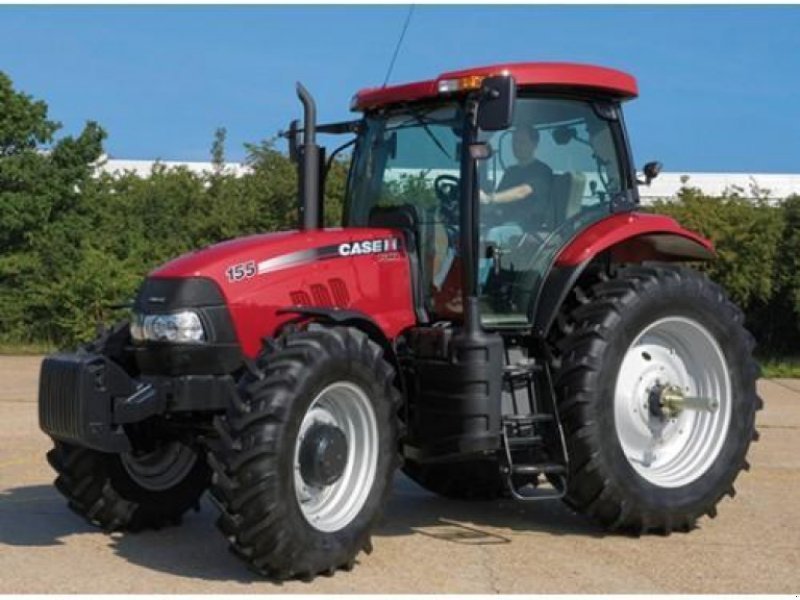

Case IH PUMA 155
Built: 2007–2011 · Series: Puma
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Puma – Six-Cylinder Tractor Between Maxxum and Magnum: Concept, Technology, Generations, 93.4 to 222 kW and Operating Weight from 6,015 to 10,000 kg
Case IH launched the Puma series in 2007 to replace the CS and MXM lines. The tractors share their platform with the New Holland T7000 and use six-cylinder FPT Industrial engines displacing 6,700 to 6,728 cm³. Registered engine output ranges from 93 to 222 kW, while the models listed with a horsepower rating span 127 to 225 hp.
Read on 3 more paragraphs
Case IH offered the Puma with either a conventional powershift gearbox or the stepless CVX transmission; in later model years CVX became the series' standard. Recorded operating weight runs from 6,015 to 10,000 kg, wheelbase from 2,786 to 2,884 mm, and the rated travel speed of the listed variants is 40 km/h.
Within the Case IH line-up the Puma sits between the smaller Maxxum and the larger Magnum, aimed at mixed farms combining arable work, grassland and transport duties. Production takes place at the Basildon plant in the UK. Buyers looking at a used Puma should check the gearbox type, emissions stage and equipment level, since these vary considerably across the model's long production run.
With rated outputs from 93.4 to 222 kW, the Puma falls within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. FPT Industrial, the engine maker within the CNH Industrial group, still manufactures engines and spare parts for these model years.
Sources: SpecCodex register, model data: Case IH Puma, Case IH
Technical data
Engine
| Engine make | Case IHcorrect |
|---|---|
| Fuel | Diesel/RMEcorrect |
| Power | 158 hp (116.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 647 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,665 mmcorrect |
|---|---|
| Width | 2,165 mmcorrect |
| Height | 3,155 mmcorrect |
| Wheelbase | 2,786 mmcorrect |
| Ground clearance | 475 mmcorrect |
| Unladen weight | 6,615 kgcorrect |
| Gross vehicle weight | 10,500 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/6 R, 19 V/6 R and 28 V/12 Rcorrect |
| Gears | 18correct |
| Front tyres | 480/70 R 28 AScorrect |
| Rear tyres | 580/70 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 300 lcorrect |
|---|
Origin and approval
| Plant | St. Valentin, Austriacorrect |
|---|---|
| Construction | unit construction (no separate frame)correct |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.6 kW/t (116 kW / 6.6 t)
Power class: Large (100–180 hp)
Stronger than 85% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH PUMA 155 have?
The Case IH PUMA 155 delivers 158 hp.
How much does the Case IH PUMA 155 weigh?
The unladen weight is 6,615 kg.
What is the gross vehicle weight of the Case IH PUMA 155?
10,500 kg.
What engine does the Case IH PUMA 155 have?
6 cylinders, 6,728 cm³ displacement, Diesel/RME.
How fast does the Case IH PUMA 155 go?
Top speed is 40 km/h.
What are the dimensions of the Case IH PUMA 155?
4,665 mm × 2,165 mm × 3,155 mm.
When was the Case IH PUMA 155 built?
Production years: 2007–2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
