Allis Chalmers 6-12 – specifications
Built: 1919–1926 · Series: Other models

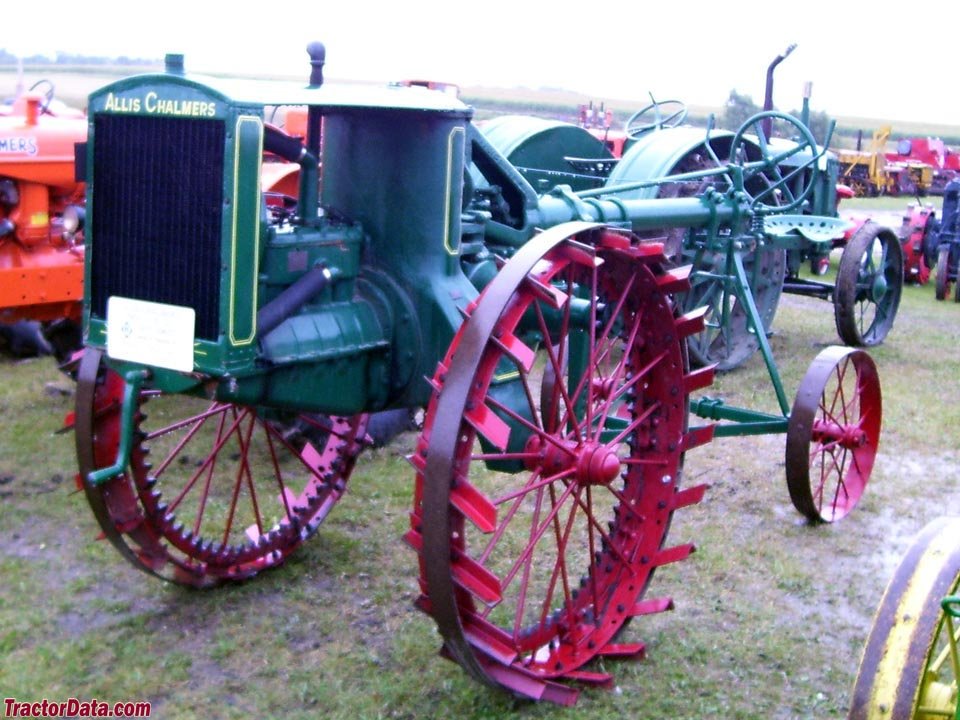

The Allis Chalmers 6-12 is a machine built by Allis Chalmers. Production: 1919–1926. The engine delivers 6 hp (4.4 kW), has 4 cylinders, with a displacement of 2,264 cm³. The machine is 3,962 mm long, 1,372 mm wide and 1,829 mm high. The unladen weight is 1,134 kg. Top speed is 4 km/h. Transmission: 1 V/1 R. The engine is water-cooled. Tyres: front 1.219 x 152, rear 711 x 152. The fuel is petrol. The bore measures 79.4 mm. The stroke is 114.3 mm. Around 1.471 units were built. Rated output across the Allis Chalmers range ranges from 6 to 117 hp; the 6-12 sits at the bottom of that range with 6 hp. Its immediate neighbours are the MODELL - G above it with 9.2 hp. Unladen weight across the Allis Chalmers range ranges from 703 to 4,874 kg; here the 6-12 sits at the bottom of that range with 1,134 kg. 222 Allis Chalmers models across 18 series are on record.
Data for the version built 1919–1926 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allis-Chalmers – Early Farm Tractors from Milwaukee, 1914–1926
In November 1914, Allis-Chalmers of Milwaukee released its first farm tractor, the 10-18: 10 drawbar horsepower, 18 belt-pulley horsepower, two large rear wheels and a single offset front wheel for furrow work. Despite solid construction, the 10-18 was a disappointment due to its high price, difficult steering under load, and a still-weak dealer network; it remained in production until about 1920.
Read on 1 more paragraphs
It was followed by the 6-12, built in the "Universal" style with two driven front wheels and a four-cylinder LeRoi engine mounted between them. From 1919 to 1926, 1,426 units were built. Listed in the register: the 10-18 and 6-12 models.
Sources: The Henry Ford – 10-18, Wikipedia – Allis-Chalmers 6-12
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| 6-12 | 1918-1923 | — | — | Reference work (Wikipedia/Wikibooks) |
| ● 6-12 | 1919–1926 | 4.4 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Fuel | petrolcorrect |
|---|---|
| Power | 6 hp (4.4 kW)correct |
| Rated speed | 1.000/1.200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,264 cm³correct |
| Bore | 79.4 mmcorrect |
| Stroke | 114.3 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,962 mmcorrect |
|---|---|
| Width | 1,372 mmcorrect |
| Height | 1,829 mmcorrect |
| Unladen weight | 1,134 kgcorrect |
Drivetrain and chassis
| Drive | Frontantriebcorrect |
|---|---|
| Gearbox | 1 V/1 Rcorrect |
| Front tyres | 1.219 x 152correct |
| Rear tyres | 711 x 152correct |
| Top speed | 4 km/hcorrect |
Origin and approval
| Construction | cast-frame constructioncorrect |
|---|---|
| Units built | 1,471correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 3.9 kW/t (4 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 0% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
