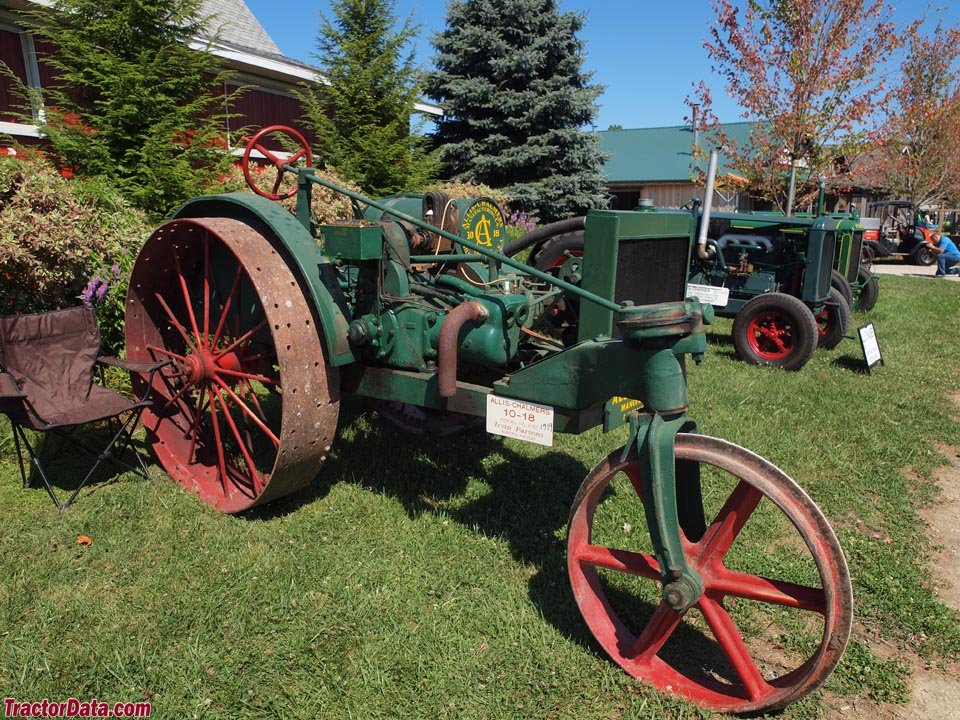

Allis Chalmers 10-18
Built: 1914–1923 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allis-Chalmers – Early Farm Tractors from Milwaukee, 1914–1926
In November 1914, Allis-Chalmers of Milwaukee released its first farm tractor, the 10-18: 10 drawbar horsepower, 18 belt-pulley horsepower, two large rear wheels and a single offset front wheel for furrow work. Despite solid construction, the 10-18 was a disappointment due to its high price, difficult steering under load, and a still-weak dealer network; it remained in production until about 1920.
Read on 1 more paragraphs
It was followed by the 6-12, built in the "Universal" style with two driven front wheels and a four-cylinder LeRoi engine mounted between them. From 1919 to 1926, 1,426 units were built. Listed in the register: the 10-18 and 6-12 models.
Sources: The Henry Ford – 10-18, Wikipedia – Allis-Chalmers 6-12
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 9.9 hp (7.3 kW)correct |
| Rated speed | 720 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 4,966 cm³correct |
| Bore | 133.35 mmcorrect |
| Stroke | 177.8 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,556 mmcorrect |
|---|---|
| Width | 1,778 mmcorrect |
| Height | 1,905 mmcorrect |
| Unladen weight | 2,177 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 1 V/1 Rcorrect |
| Front tyres | 813 x 152correct |
| Rear tyres | 1.422 x 305correct |
| Top speed | 3.7 km/hcorrect |
Origin and approval
| Construction | cast-frame constructioncorrect |
|---|---|
| Units built | 189correct |
Where this model stands
Power-to-weight ratio: 3.4 kW/t (7 kW / 2.2 t)
Power class: Compact (< 40 hp)
Stronger than 1% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Allis Chalmers 10-18 have?
The Allis Chalmers 10-18 delivers 9.9 hp.
How much does the Allis Chalmers 10-18 weigh?
The unladen weight is 2,177 kg.
What engine does the Allis Chalmers 10-18 have?
2 cylinders, 4,966 cm³ displacement, Kerosin/Benzin.
What are the dimensions of the Allis Chalmers 10-18?
3,556 mm × 1,778 mm × 1,905 mm.
When was the Allis Chalmers 10-18 built?
Production years: 1914–1923.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
