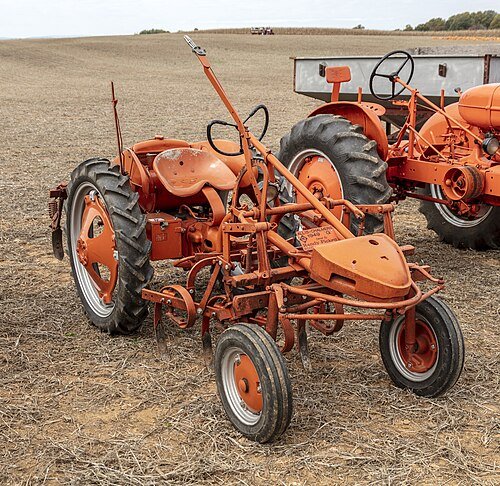

Allis Chalmers MODELL - G
Built: 1948–1955 · Series: Other models
More machines from model year 1948
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allis-Chalmers – other models: the collective page of the orange tractors from Milwaukee outside the named ranges, from the 10-18 and 20-35 through the letter models B, C, WC and WD to the 100s (170 to 220)
This page gathers the Allis-Chalmers tractors the register could not assign to a named range – the brand from Milwaukee, Wisconsin, that began in 1914 with the 10-18, was the first maker to introduce pneumatic tyres on a tractor with the Model U in 1932 and created the affordable small tractor for the American family farm with the Model B of 1937, before being sold to Deutz in 1985. The type logic: the early number types 10-18, 12-20 and 20-35 give drawbar and belt power in hp; the letter models A, B, C, CA, WC and WD of the 1930s to 1950s denote model types, not size; the D series (D-10 to D-21) of the 1950s and 1960s orders in ascending order; the 100s (160 to 220) of 1964 to 1975 give roughly the hp class, XT the turbocharger; the 7000s (7010 to 7080) of the 1970s with the Acousta Cab and the 8000s (8010 to 8070) of the 1980s are the last own ranges, the 4W-220 and 4W-305 the articulated tractors, the 5000s and 6000s bought-in compacts from Toyosha and Fiat. The engines are Allis-Chalmers' own as petrol, LPG and diesel versions, Perkins in some diesel models and Toyosha in the Japanese compacts.
Read on 3 more paragraphs
The register lists here 115 versions with 6 to 305 hp from two- to eight-cylinders of 1,002 to 11,973 cm³, widths from 915 to 2,438 mm and heights from 1,191 to 3,531 mm.
From the 1930s to the 1970s Allis-Chalmers was the third big American maker after John Deere and International Harvester; the Persian Orange tractors are collectors' pieces today with their own association, and the brand lived on through Deutz-Allis and AGCO Allis until 2001.
On used tractors, originality, engine condition (carburettor on petrol engines, injection pump on diesels), clutch and transmission (Power Director on the D-17 and the 100s), hydraulics (Traction Booster) and sheet metal count; parts run through collector dealers and AGCO for the late ranges.
Sources: SpecCodex register, model data: Allis-Chalmers (weitere Modelle), Allis-Chalmers (Wikipedia)
Technical data
Engine
| Fuel | Petroleum/Benzincorrect |
|---|---|
| Power | 9.2 hp (6.8 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Torque | 51 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,017 cm³correct |
| Bore | 60.33 mmcorrect |
| Stroke | 88.9 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,946 mmcorrect |
|---|---|
| Width | 915 mmcorrect |
| Height | 1,422 mmcorrect |
| Wheelbase | 1,740 mmcorrect |
| Ground clearance | 441 mmcorrect |
| Unladen weight | 703 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Front tyres | 4.00 x 12correct |
| Rear tyres | 6 x 30correct |
| Top speed | 12 km/hcorrect |
Origin and approval
| Construction | tubular framecorrect |
|---|---|
| Units built | 29,971correct |
Where this model stands
Power-to-weight ratio: 9.7 kW/t (7 kW / 0.7 t)
Power class: Compact (< 40 hp)
Stronger than 1% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Allis Chalmers MODELL - G have?
The Allis Chalmers MODELL - G delivers 9.2 hp.
How much does the Allis Chalmers MODELL - G weigh?
The unladen weight is 703 kg.
What engine does the Allis Chalmers MODELL - G have?
4 cylinders, 1,017 cm³ displacement, Petroleum/Benzin.
How fast does the Allis Chalmers MODELL - G go?
Top speed is 12 km/h.
What are the dimensions of the Allis Chalmers MODELL - G?
2,946 mm × 915 mm × 1,422 mm.
When was the Allis Chalmers MODELL - G built?
Production years: 1948–1955.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
