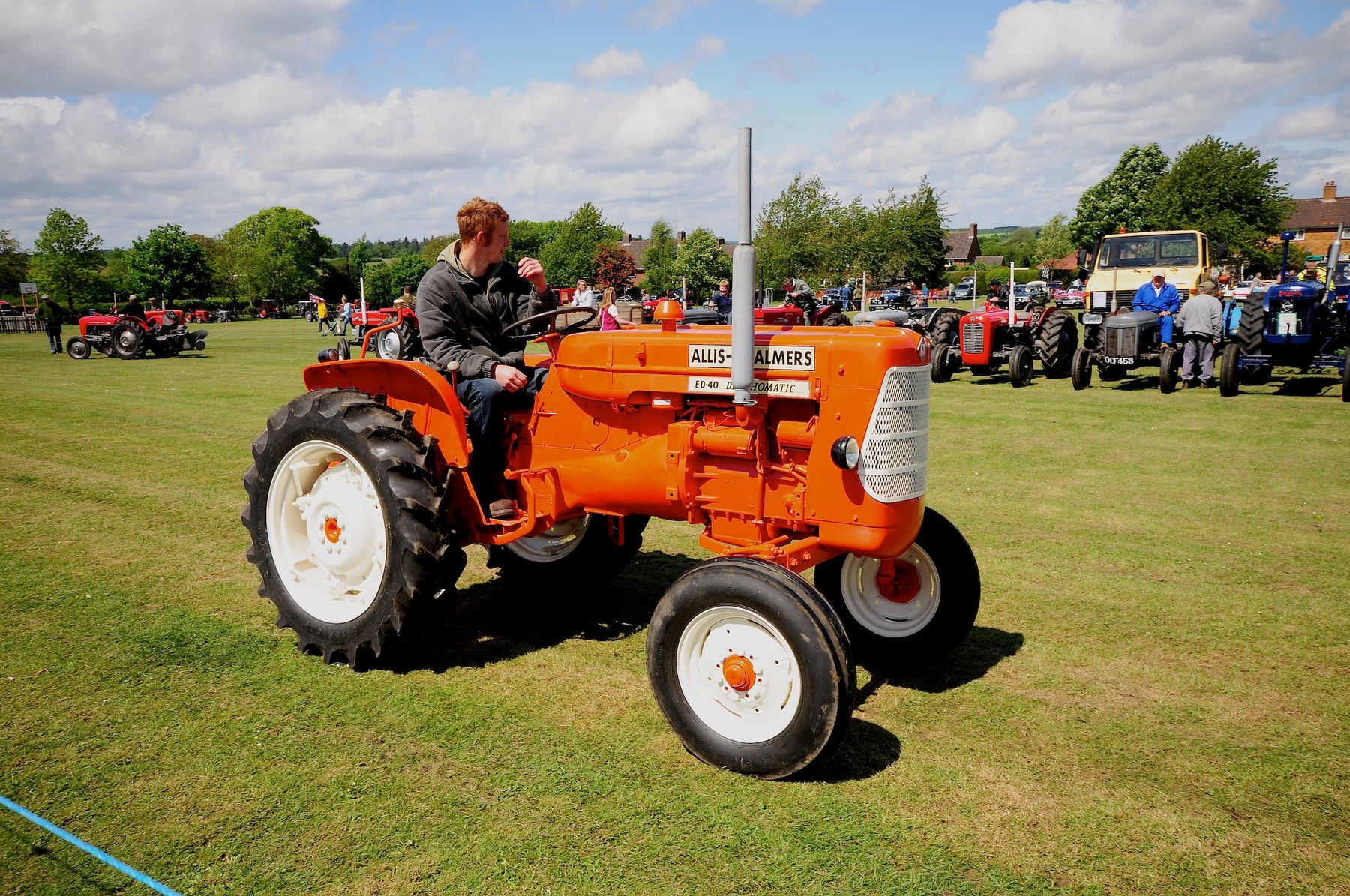

Allis Chalmers ED-40
Built: 1960–1968 · Series: Other models
More machines from model year 1960
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allis-Chalmers – other models: the collective page of the orange tractors from Milwaukee outside the named ranges, from the 10-18 and 20-35 through the letter models B, C, WC and WD to the 100s (170 to 220)
This page gathers the Allis-Chalmers tractors the register could not assign to a named range – the brand from Milwaukee, Wisconsin, that began in 1914 with the 10-18, was the first maker to introduce pneumatic tyres on a tractor with the Model U in 1932 and created the affordable small tractor for the American family farm with the Model B of 1937, before being sold to Deutz in 1985. The type logic: the early number types 10-18, 12-20 and 20-35 give drawbar and belt power in hp; the letter models A, B, C, CA, WC and WD of the 1930s to 1950s denote model types, not size; the D series (D-10 to D-21) of the 1950s and 1960s orders in ascending order; the 100s (160 to 220) of 1964 to 1975 give roughly the hp class, XT the turbocharger; the 7000s (7010 to 7080) of the 1970s with the Acousta Cab and the 8000s (8010 to 8070) of the 1980s are the last own ranges, the 4W-220 and 4W-305 the articulated tractors, the 5000s and 6000s bought-in compacts from Toyosha and Fiat. The engines are Allis-Chalmers' own as petrol, LPG and diesel versions, Perkins in some diesel models and Toyosha in the Japanese compacts.
Read on 3 more paragraphs
The register lists here 115 versions with 6 to 305 hp from two- to eight-cylinders of 1,002 to 11,973 cm³, widths from 915 to 2,438 mm and heights from 1,191 to 3,531 mm.
From the 1930s to the 1970s Allis-Chalmers was the third big American maker after John Deere and International Harvester; the Persian Orange tractors are collectors' pieces today with their own association, and the brand lived on through Deutz-Allis and AGCO Allis until 2001.
On used tractors, originality, engine condition (carburettor on petrol engines, injection pump on diesels), clutch and transmission (Power Director on the D-17 and the 100s), hydraulics (Traction Booster) and sheet metal count; parts run through collector dealers and AGCO for the late ranges.
Sources: SpecCodex register, model data: Allis-Chalmers (weitere Modelle), Allis-Chalmers (Wikipedia)
Technical data
Engine
| Engine make | Standard Motor Cocorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 37 hp (27.2 kW)correct |
| Rated speed | 2.000/2.250 rpmcorrect |
| Torque | 127 Nmcorrect |
| Speed at max. torque | 1,216 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,260 cm³ (137.89 cu in)correct |
| Bore | 84.14 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Compression ratio | 20correct |
| Injection pressure | 130 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,080 mmcorrect |
|---|---|
| Width | 1,810 mmcorrect |
| Height | 1,560 mmcorrect |
| Wheelbase | 1,943 mmcorrect |
| Ground clearance | 448 mmcorrect |
| Unladen weight | 1,685 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 Rcorrect |
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 13-28 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 76.5 lcorrect |
|---|
Origin and approval
| Plant | Essendine, Lincolnshire, Englandcorrect |
|---|---|
| Construction | frame constructioncorrect |
| Units built | ca. 4000correct |
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.1 kW/t (27 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 23% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Allis Chalmers ED-40 have?
The Allis Chalmers ED-40 delivers 37 hp.
How much does the Allis Chalmers ED-40 weigh?
The unladen weight is 1,685 kg.
What engine does the Allis Chalmers ED-40 have?
4 cylinders, 2,260 cm³ displacement, Diesel.
How fast does the Allis Chalmers ED-40 go?
Top speed is 25 km/h.
What are the dimensions of the Allis Chalmers ED-40?
3,080 mm × 1,810 mm × 1,560 mm.
When was the Allis Chalmers ED-40 built?
Production years: 1960–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
