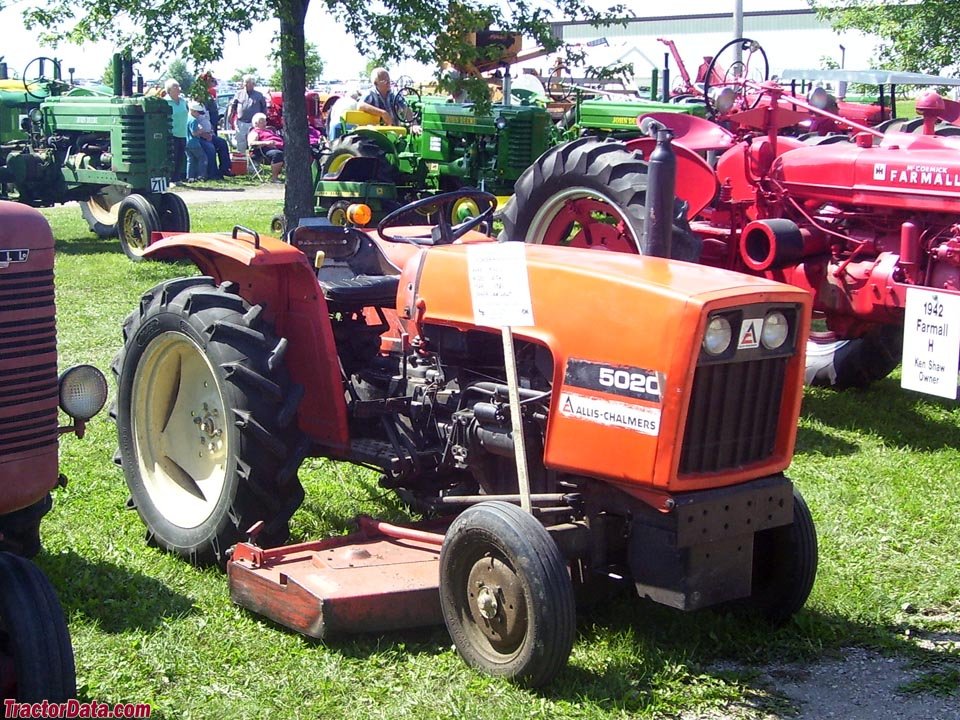

Allis Chalmers 5020
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Allis Chalmers 5020 is a tractor from Allis Chalmers. The two-cylinder engine produces 16 kW. Rated speed is 2,500 rpm.
It runs on diesel; the engine is water-cooled. It was replaced by the Deutz-Allis 5220. Within the range, rated power spans from 2 to 863 kW; with 16 kW, the 5020 sits in the lower third. Directly alongside are the L with 15 kW below and the AC130 with 17 kW above.
Technical data
Engine
| Engine make | Toyoshacorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 22 hp (16 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 77.1 cu incorrect |
| Bore | 3.62 in (91,9 mm)correct |
| Stroke | 3.74 in (95 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 98.9 in (2512,1 mm)correct |
|---|---|
| Width | 48 in (1219,2 mm)correct |
| Height | 75.6 in (1920,2 mm)correct |
| Wheelbase | 59.8 in (1518,9 mm)correct |
| Turning circle | 87.8 in (2230,1 mm)correct |
| Unladen weight | 1,900 lbs (861,8 kg)correct |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4correct |
Working data
| Fuel tank capacity | 7 galcorrect |
|---|---|
| PTO speed | 540correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | Toyosha, Japancorrect |
|---|---|
| Successor | Deutz-Allis 5220correct |
Frequently asked questions
How much power does the Allis Chalmers 5020 have?
The Allis Chalmers 5020 delivers 22 hp.
What engine does the Allis Chalmers 5020 have?
2 cylinders, Diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
