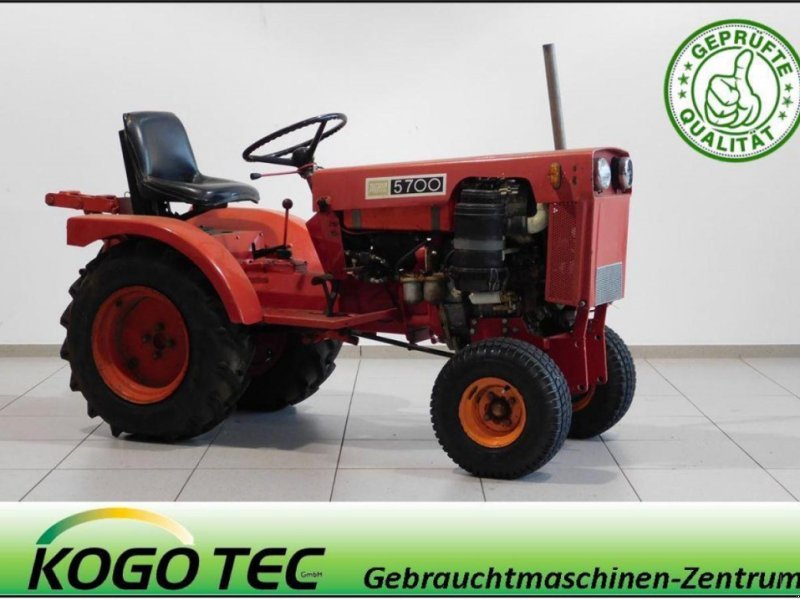

Agria 5700 B
Built: 1972–1978 · Series: Other models
More machines from model year 1972
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Agria – other models: the collective page of walking tractors and the smallest machines outside the named ranges, from the Agriette 1000 to the type 1300 R/Z, 3 to 19 kW
This page gathers the Agria machines the register could not assign to a named range – single-axle walking tractors and small implements from the maker in Möckmühl, Baden-Württemberg, which has built motorised equipment for farming, viticulture and municipal work since 1946. The type logic of the Agria ranges rests on four-digit numbers that order the power and equipment class, with the suffix K for compact versions and designations such as Agriette for the early single-axle implement carriers of the 1950s and 1960s. The machines are walking tractors and implement carriers that, with interchangeable attachments – sickle-bar mower, tiller, plough – are built for steep ground, vineyards and small plots, a segment in which Agria, alongside Rapid and Aebi, ranks among the known makers of the German-speaking area.
Read on 3 more paragraphs
The register lists here 14 versions with 3.3 to 19 kW from one- and two-cylinder engines of 93 to 1,205 cm³ displacement, unladen weights from 23 to 890 kg and widths from 577.5 to 1,050 mm; the engines run on two-stroke petrol mix or diesel.
Walking tractors shaped soil cultivation for decades in upland and vineyard terrain where conventional tractors were too wide or too heavy; Agria has kept this segment with rugged, repair-friendly designs to this day.
On used machines, the condition of clutch and V-belts, the tightness of the gearbox, the state of the two-stroke engines (piston, cylinder, carburettor) or, on diesel versions, the injection pump, and wear at attachment points and wheels count; spares are carried by the maker itself and a network of farm-machinery dealers.
Sources: SpecCodex register, model data: Agria (weitere Modelle), Agria-Werke (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 16 hp (12 kW)correct |
| Rated speed | 3,200 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 741 cm³correct |
Dimensions and weights
| Length | 1,970 mmcorrect |
|---|---|
| Width | 900 mmcorrect |
| Height | 1,200 mmcorrect |
| Wheelbase | 1,310 mmcorrect |
| Unladen weight | 600 kgcorrect |
Drivetrain and chassis
| Gearbox | 8/2-manual gearbox gearboxcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Front tyres | 4.00-12 IMPL./2PRcorrect |
| Rear tyres | 7.00-16 IMPL./4PRcorrect |
| Top speed | 23.34 km/hcorrect |
Working data
| Fuel tank capacity | 12 lcorrect |
|---|
Origin and approval
| Units built | 1,330correct |
|---|
Other data
| PTO speed | 540/825 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 20 kW/t (12 kW / 0.6 t)
Power class: Compact (< 40 hp)
Stronger than 4% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Agria 5700 B have?
The Agria 5700 B delivers 16 hp.
How much does the Agria 5700 B weigh?
The unladen weight is 600 kg.
What engine does the Agria 5700 B have?
1 cylinders, 741 cm³ displacement, Diesel.
How fast does the Agria 5700 B go?
Top speed is 23.3 km/h.
What are the dimensions of the Agria 5700 B?
1,970 mm × 900 mm × 1,200 mm.
When was the Agria 5700 B built?
Production years: 1972–1978.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
