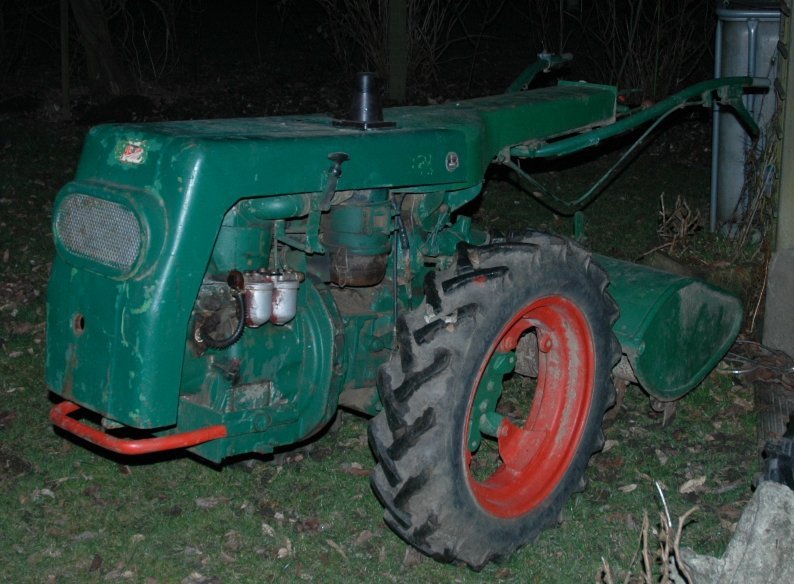

Agria 3800
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Agria – other models: the collective page of walking tractors and the smallest machines outside the named ranges, from the Agriette 1000 to the type 1300 R/Z, 3 to 19 kW
This page gathers the Agria machines the register could not assign to a named range – single-axle walking tractors and small implements from the maker in Möckmühl, Baden-Württemberg, which has built motorised equipment for farming, viticulture and municipal work since 1946. The type logic of the Agria ranges rests on four-digit numbers that order the power and equipment class, with the suffix K for compact versions and designations such as Agriette for the early single-axle implement carriers of the 1950s and 1960s. The machines are walking tractors and implement carriers that, with interchangeable attachments – sickle-bar mower, tiller, plough – are built for steep ground, vineyards and small plots, a segment in which Agria, alongside Rapid and Aebi, ranks among the known makers of the German-speaking area.
Read on 3 more paragraphs
The register lists here 14 versions with 3.3 to 19 kW from one- and two-cylinder engines of 93 to 1,205 cm³ displacement, unladen weights from 23 to 890 kg and widths from 577.5 to 1,050 mm; the engines run on two-stroke petrol mix or diesel.
Walking tractors shaped soil cultivation for decades in upland and vineyard terrain where conventional tractors were too wide or too heavy; Agria has kept this segment with rugged, repair-friendly designs to this day.
On used machines, the condition of clutch and V-belts, the tightness of the gearbox, the state of the two-stroke engines (piston, cylinder, carburettor) or, on diesel versions, the injection pump, and wear at attachment points and wheels count; spares are carried by the maker itself and a network of farm-machinery dealers.
Sources: SpecCodex register, model data: Agria (weitere Modelle), Agria-Werke (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 12 hpcorrect |
| Rated speed | 3,000 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 625 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,380 mmcorrect |
|---|---|
| Width | 890 mmcorrect |
| Height | 1,250 mmcorrect |
| Unladen weight | 370 kgcorrect |
Drivetrain and chassis
| Gearbox | 6/6correct |
|---|---|
| Front tyres | 6, 00-16 AS/7, 00-18 AScorrect |
| Top speed | 17.6 km/hcorrect |
Origin and approval
| Construction | Einachsschleppercorrect |
|---|
Where this model stands
Power-to-weight ratio: 23.8 kW/t (9 kW / 0.4 t)
Power class: Compact (< 40 hp)
Stronger than 2% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Agria 3800 have?
The Agria 3800 delivers 12 hp.
How much does the Agria 3800 weigh?
The unladen weight is 370 kg.
What engine does the Agria 3800 have?
1 cylinders, 625 cm³ displacement, Diesel.
How fast does the Agria 3800 go?
Top speed is 17.6 km/h.
What are the dimensions of the Agria 3800?
2,380 mm × 890 mm × 1,250 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
