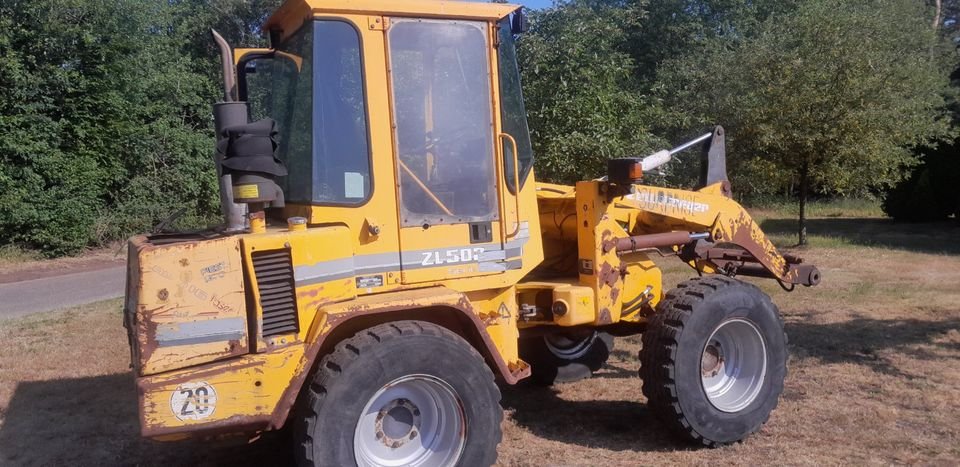

Zettelmeyer ZL502C

Series: Zettelmeyer Wheel Loader

Source: https://www.kleinanzeigen.de/s-anzeige/zettelmeyer-radlader-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Zettelmeyer ZL502C is a model in the Zettelmeyer Wheel Loader series. The engine delivers 48.7 hp (35 kW), has 4 cylinders, with a displacement of 2,736.6 cm³. Torque is 128.8 Nm. Rated speed is 2,800 rpm. The unladen weight is 4,399.8 kg. The wheelbase measures 2,002.5 mm. Ground clearance is 432.8 mm. The tank holds 60.2 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,800 rpm. The pump delivers 45 l/min. The hydraulic tank holds 60.2 litres. The electrical system runs on 12 V. The engine fitted is the KHD F4 L 1011 F. Tyre size: 12,5-18. The Zettelmeyer Wheel Loader series covers 42 models. Rated output within it ranges from 30 to 306.2 hp; the ZL502C sits at the bottom of that range with 48.7 hp. Its immediate neighbours are the ZL601 below it with 45.6 hp and the ZL502 above it with 49 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelKHD F4 L 1011 Fcorrect
Power48.7 hp (35 kW)correct
Rated speed2,800 rpmcorrect
Torque128.8correct
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Displacement2,736.6 cm³correct
Aspirationnaturalcorrect

Dimensions and weights

Wheelbase2,002.5correct
Ground clearance432.8correct
Unladen weight4,399.8 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmission full power shiftcorrect
Forward gears2correct
Reverse gears2correct
Tyre size12.5-18correct
System voltage12 Vcorrect

Working data

Pump flow45 l/mincorrect
Hydraulic oil capacity60.2 lcorrect
Fuel tank capacity60.2 lcorrect

Other data

Height2,587.8correct

Where this model stands

Power-to-weight ratio: 8 kW/t (35 kW / 4.4 t)

Stronger than 5% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zettelmeyer ZL502C have?

The Zettelmeyer ZL502C delivers 48.7 hp.

How much does the Zettelmeyer ZL502C weigh?

The unladen weight is 4,400 kg.

What engine does the Zettelmeyer ZL502C have?

4 cylinders, 2,737 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
