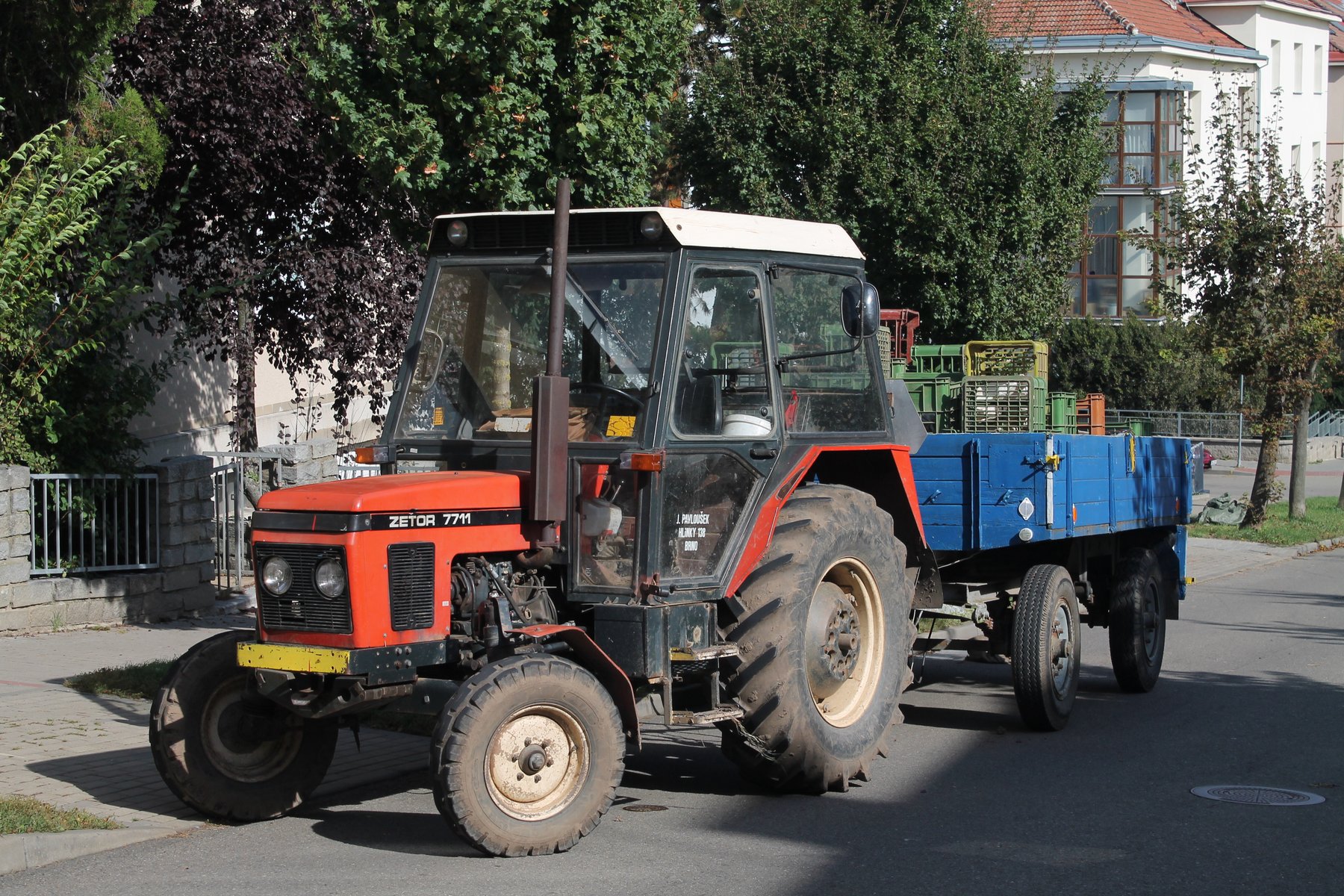

Zetor 7711

Series: Other models

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Zetor 7711 is a machine built by Zetor. The engine delivers 73 hp (54 kW), has 4 cylinders, with a displacement of 3,922 cm³. The engine comes from Zetor. Torque is 247 Nm. Rated speed is 2,200 rpm. The machine is 3,760 mm long, 1,840 mm wide and 2,610 mm high. The wheelbase measures 2,257 mm. Ground clearance is 490 mm. Top speed is 25 km/h. The tank holds 70 litres. Transmission: 10 V/2 R or 20 V/4 R. The engine is water-cooled. The model was built in Czechoslovakia. The fuel is diesel. The fuel is diesel. The linkage is category II. The PTO runs at 540/1000 rpm. Rated output across the Zetor range ranges from 15 to 165 hp; the 7711 sits in the lower part of that range with 73 hp. Its immediate neighbours are the 7441 below it with 72 hp and the 8111 above it with 76 hp. Rated output across the Zetor range ranges from 11 to 123 kW; here the 7711 sits in the lower part of that range with 54 kW. 371 Zetor models across 27 series are on record.

Zetor — where the name comes from and how the ranges connect, models from 11 to 120 kW, engines including Caterpillar, Perkins, Zetor and Deutz

The brand name is a compound: the "Z" of the Brno arms factory Zbrojovka and the ending "-tor". It was there, in March 1946, that the first three Z 25 tractors left the line — an eightieth anniversary in 2026.

Read on 4 more paragraphs

Order among the many Zetor types came in the 1960s with the unified UR I and UR II ranges. They brought more modern engineering and, above all, shared central components — the reason parts can be swapped across model boundaries. In the late 1960s the UR II joined the programme, designed for stronger machines and more demanding work.

Those lines still run today. The UR II range was revised and reached the market in 1998 as the Zetor Forterra. Around the turn of the millennium came the Proxima and Forterra ranges together with the modernised Major and Crystal — the generation carrying the brand through its recent history.

Anyone assessing an older model should therefore identify the base range first. A tractor from the UR II family is technically related to the Forterra, even with decades between them. That kinship decides how readily parts can be found — with a brand spanning eighty years of models, that is the most practical question of all.

Across the whole power range gathered here, 11 to 120 kW, the ISO 730 three-point linkage spans Category 0 on the smallest post-war models to Category II on the stronger series; the 540 rpm PTO speed remained, across the decades, the unchanged common denominator of every Zetor generation.

Sources: SpecCodex register, model data: Zetor (weitere Modelle), Zetor

Technical data

Engine

Engine makeZetorcorrect
Fueldieselcorrect
Fueldieselcorrect
Power73 hp (54 kW)correct
Rated speed2,200 rpmcorrect
Rated speed2.200/mincorrect
Torque247 Nmcorrect
Cylinders4correct
Cylinders4 Hubraumcorrect
Displacement3,922 cm³correct
Coolingwater-cooledcorrect
Cooling systemwater-cooledcorrect
Torque rise13 %correct

Dimensions and weights

Length3,760 mmcorrect
Width1,840 mmcorrect
Height2,610 mmcorrect
Wheelbase2,257 mmcorrect
Ground clearance490 mmcorrect

Drivetrain and chassis

Driverear-wheel driveWDcorrect
Gearbox10 V/2 R or 20 V/4 Rcorrect
Top speed25 km/hcorrect
Turning radius3,920 mmcorrect
Drive typeHeck-correct
Construction typeunit construction (no separate frame)correct

Working data

Fuel tank capacity70 lcorrect

Origin and approval

PlantCzechoslovakiacorrect
Production period1,985correct
TypeCD-correct

Other data

Linkage categoryCat IIcorrect
PTO speed540/1000 rpmcorrect

Frequently asked questions

How much power does the Zetor 7711 have?

The Zetor 7711 delivers 73 hp.

What engine does the Zetor 7711 have?

4 cylinders, 3,922 cm³ displacement, Diesel.

How fast does the Zetor 7711 go?

Top speed is 25 km/h.

What are the dimensions of the Zetor 7711?

3,760 mm × 1,840 mm × 2,610 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
