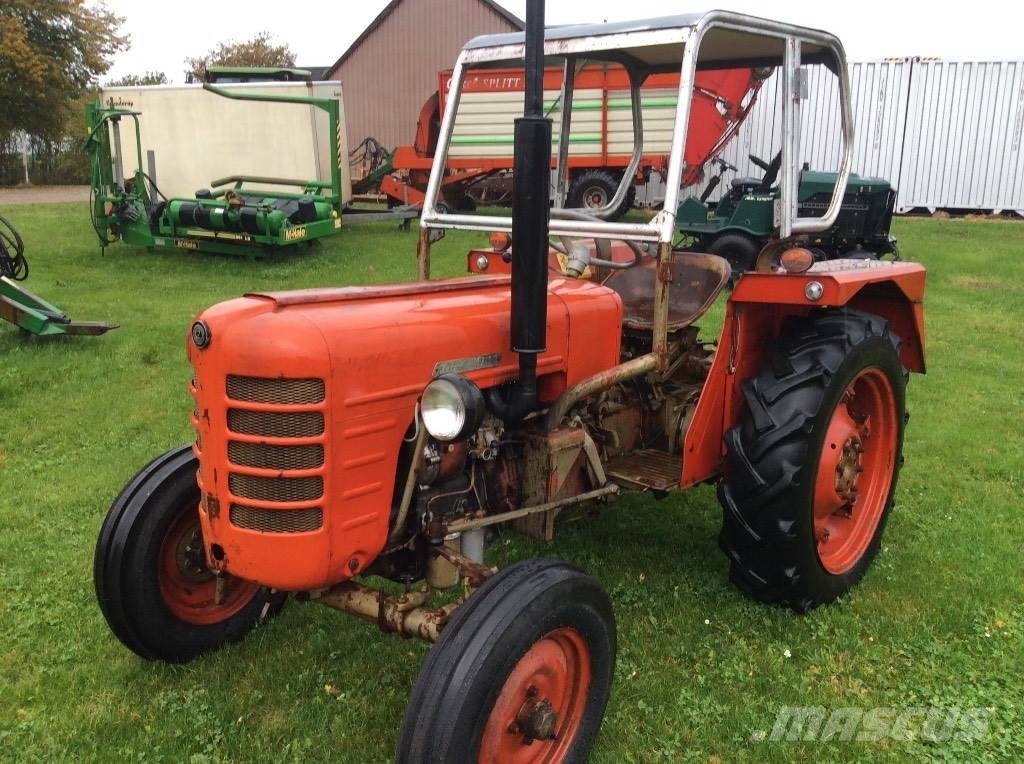

Zetor 4011 – specifications
Built: 1962–1967 · Series: 0 er-Serie (UR I)
The 4011 from Zetor is part of the 0er-Serie (UR I) series. Production: 1962–1967. The engine delivers 45 hp (33.1 kW), has 4 cylinders, with a displacement of 3,119 cm³. The engine comes from Zetor. Rated speed is 2,000 rpm. The machine is 3,250 mm long, 1,790 mm wide and 1,620 mm high. The unladen weight is 1,965 kg. The wheelbase measures 2,125 mm. Ground clearance is 436 mm. Top speed is 25 km/h. The tank holds 80 litres. Transmission: 10 V/2 R. The engine is water-cooled. Tyres: front 6.00-18 ASF, rear 13-28. The model was built in Czechoslovakia. The fuel is diesel. The bore measures 95 mm. The stroke is 110 mm. The engine fitted is the Z-4001. Construction: unit construction (no separate frame). The gearbox offers 10 forward gears. There are also 2 reverse gears. Injection pressure is 160 bar. Around 37.339 units were built. Rated output across the Zetor range ranges from 15 to 160 hp; the 4011 sits in the lower part of that range with 45 hp. Its immediate neighbours are the HT 45 below it with 43 hp and the 5211/5245 above it with 47 hp. Rated output across the Zetor range ranges from 22 to 160 hp; here the 4011 sits in the lower part of that range with 44.2 hp. 371 Zetor models across 27 series are on record.
Data for the version built 1962–1967 · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1962
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zetor 0 series (UR I): the smaller types of the Unified Range I generation from Brno, 3011/3045 and 4011 with three- and four-cylinder diesel engine, 24.3 to 33.1 kW, 2,339 to 3,119 cm³
This page lists the smaller types of Zetor's Unified Range I generation from Brno (Czechia), which from the 1960s launched with a modular set of three- and four-cylinder engines of identical design: the 3011 (also listed as 3045) with a three-cylinder engine and the 4011 with a four-cylinder engine, both built on the same cylinder unit of around 780 cm³ per cylinder.
Read on 3 more paragraphs
The register lists here 2 versions with 24.3 to 33.1 kW from three to four cylinders of 2,339 to 3,119 cm³ displacement, unladen weights of 1,480 to 1,965 kg, lengths of 3,016 to 3,250 mm, widths of 1,652 to 1,790 mm and heights of 1,525 to 1,620 mm; the engines run at 2,000 revolutions per minute, one carrying the factory designation Z-4001.
The Unified Range I tractors made Zetor one of the defining tractor makers of the Eastern Bloc and were exported across the whole Comecon area as well as to Western Europe, Africa and Asia; the modular principle with a shared cylinder unit cut production and spare-parts costs considerably.
On these classics, engine condition and compression, rust on sheet metal and mudguards, the condition of clutch and mechanical gearbox, and the function of the hydraulics count; spare parts for the Z engine series are available through the Eastern European used market and specialist Zetor parts dealers.
Sources: SpecCodex register, model data: Zetor 0er-Serie (UR I), Zetor (manufacturer)
Technical data
Engine
| Engine make | Zetorcorrect |
|---|---|
| Engine model | Z-4001correct |
| Fuel | dieselcorrect |
| Power | 45 hp (33.1 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,119 cm³ (3,120 ci)correct |
| Bore | 95 mmcorrect |
| Bore | 95 mmcorrect |
| Stroke | 110 mmcorrect |
| Stroke | 110 mmcorrect |
| Injection pressure | 160 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,250 mmcorrect |
|---|---|
| Width | 1,790 mmcorrect |
| Height | 1,620 mmcorrect |
| Wheelbase | 2,125 mmcorrect |
| Ground clearance | 436 mmcorrect |
| Unladen weight | 1,965 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 Rcorrect |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Front tyres | 6.00-18 ASFcorrect |
| Rear tyres | 13-28correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 80 lcorrect |
|---|
Origin and approval
| Plant | Czechoslovakiacorrect |
|---|---|
| Construction | unit construction (no separate frame)correct |
| Units built | 37,339correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.8 kW/t (33 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
