Yanmar YT 235

Series: YT

Source: https://www.technikboerse.at/gebraucht/traktor-1/yanmar-1303

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

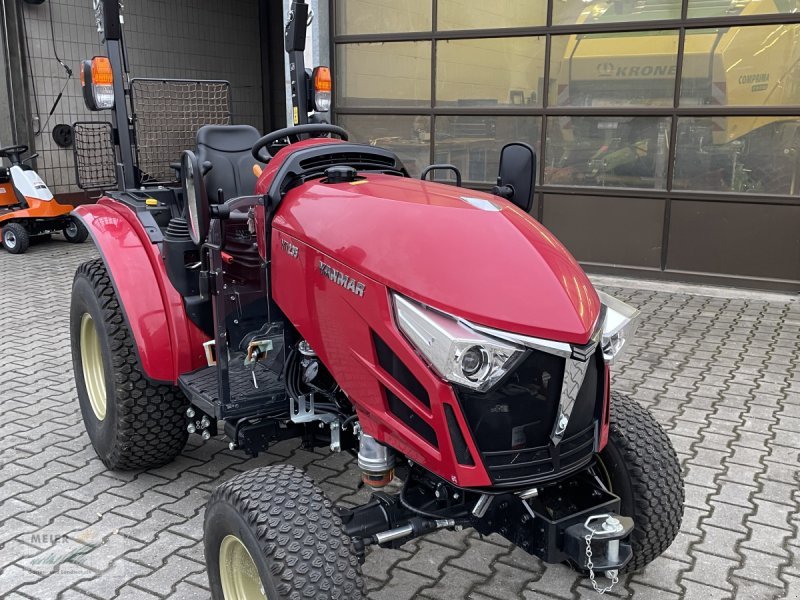

The Yanmar YT 235 is a model in the YT series. The engine delivers 26 hp (35 kW), has 3 cylinders, with a displacement of 1,642 cm³. Rated speed is 2,800 rpm. The machine is 3,063 mm long and 2,080 mm high. The unladen weight is 1,110 kg. The wheelbase measures 1,650 mm. Ground clearance is 221 mm. Top speed is 31 km/h. Lifting capacity is 1,300 kg. The engine is water-cooled. The fuel is diesel. The YT series covers 3 models. Rated output within it ranges from 26 to 90 hp; the YT 235 sits at the bottom of that range with 26 hp. Its immediate neighbours are the YT 359 above it with 60 hp. Lifting capacity within it ranges from 1,300 to 3,300 kg; here the YT 235 sits at the bottom of that range with 1,300 kg. 1231 Yanmar models across 70 series are on record.

Yanmar YT: collective page of Japanese tractors YT235, YT359 and YT490, three- and four-cylinder diesels, 35 to 66 kW (26 to 90 hp), range since 2014

The YT range from Yanmar has been built in Japan since 2014 and spans in the register from the compact YT235 to the YT490; Yanmar, founded in Osaka in 1912, ranks among Japan's most established makers of engines and farm machinery and is known in particular for its compact, high-revving diesel engines. Yanmar develops and builds these diesel engines in-house, which allows a close match between engine and transmission.

Read on 3 more paragraphs

The register lists 3 versions with 35 to 66 kW (26 to 90 hp) from three- and four-cylinder diesel engines of 1,642 to 3,318 cm³ and lift capacities of 1,300 to 3,300 kg, at rated speeds of 2,500 to 2,800 rpm; with a cab, weights range from 1,110 to 2,060 kg and heights from 2,080 to 2,310 mm.

Compact Japanese tractors such as the YT range are designed for smaller holdings, orchard and vegetable growing, and municipal applications, where manoeuvrability and a frugal, high-revving diesel engine matter; Yanmar competes in this segment with Kubota and Iseki.

When buying used, condition of the high-revving diesel engine including injection and cooling, the clutch and gearbox, and the hydraulics and lift all matter; spare parts run through the Yanmar dealer network. On machines used in municipal service, the implement mounts and hydraulic hoses also belong on the checklist.

Sources: SpecCodex register, model data: Yanmar YT, Yanmar

Technical data

Engine

Fuel	dieselcorrect
Power	26 hp (35 kW)correct
Rated speed	2,800 rpmcorrect
Cylinders	3correct
Displacement	1,642 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,063 mmcorrect
Height	2,080 mm (with cab)correct
Wheelbase	1,650 mmcorrect
Ground clearance	221 mmcorrect
Unladen weight	1,110 kg (with cab)correct

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	3 - Stufen - Hydrostatcorrect
Top speed	31 km/hcorrect

Working data

Lifting capacity	1,300 kgcorrect

Frequently asked questions

How much power does the Yanmar YT 235 have?

The Yanmar YT 235 delivers 26 hp.

How much does the Yanmar YT 235 weigh?

The unladen weight is 1,110 kg.

What engine does the Yanmar YT 235 have?

3 cylinders, 1,642 cm³ displacement, Diesel.

How fast does the Yanmar YT 235 go?

Top speed is 31 km/h.

How much does the rear linkage of the Yanmar YT 235 lift?

The rear linkage lifts 1,300 kg.

What are the dimensions of the Yanmar YT 235?

3,063 mm × 2,080 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
