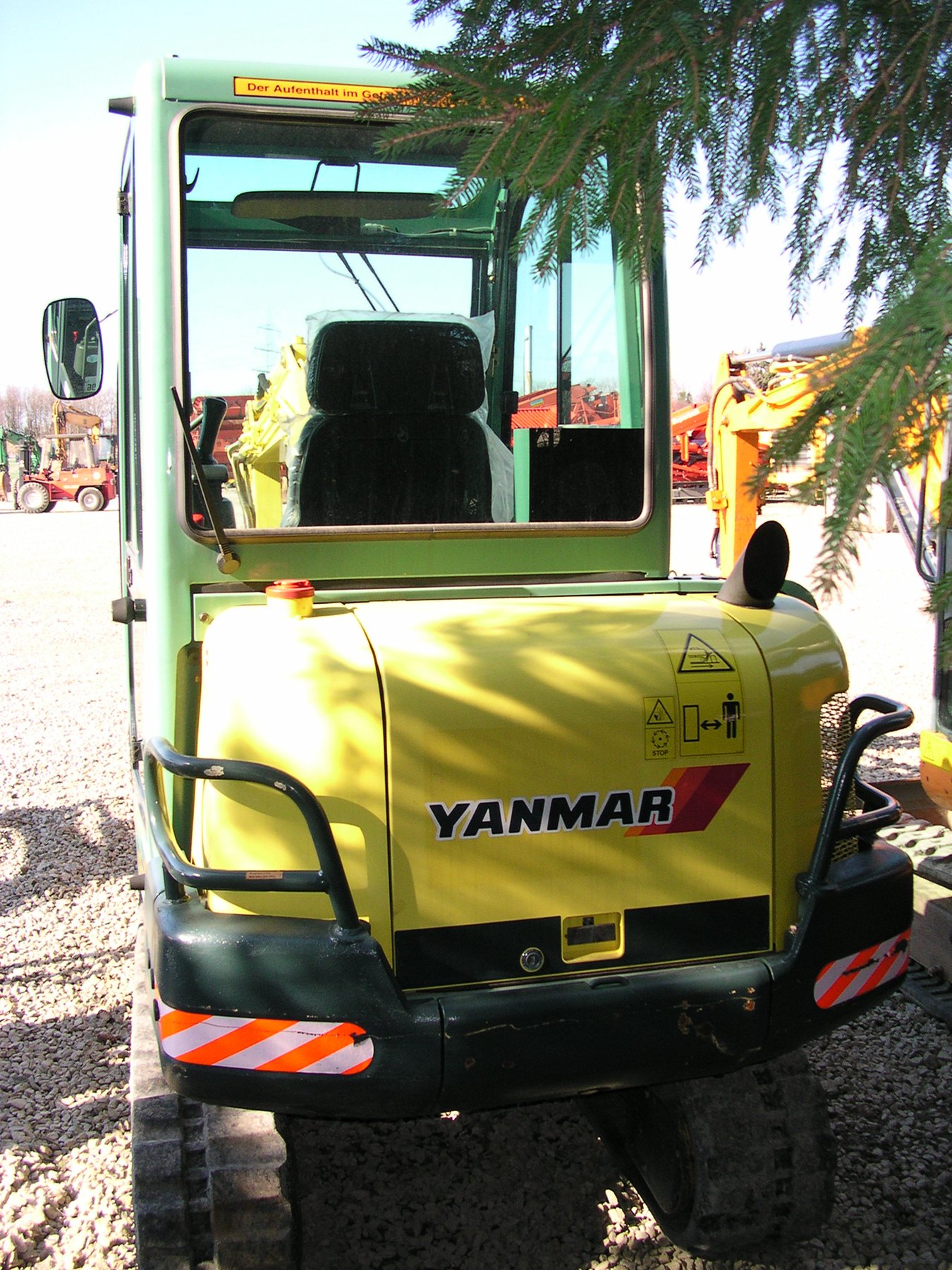

Yanmar V3-7S

Series: V Series

Source: https://commons.wikimedia.org/wiki/File:Yanmar_B25V_2.jpg

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yanmar V3-7S belongs to the V Series series. The engine delivers 25.7 hp (18.9 kW), has 3 cylinders. The machine is 4,115 mm long, 1,570 mm wide and 2,470 mm high. The fuel is diesel. The operating weight is 2,920 kg. Bucket capacity is 0.4 m³. The engine fitted is the 3TNV88-EPKAH2. The V Series series covers 3 models. Rated output within it ranges from 16.8 to 25.7 hp; the V3-7S sits at the top of that range with 25.7 hp. Its immediate neighbours are the V2-3B below it with 23.2 hp. Operating weight within it ranges from 1,110 to 2,920 kg; here the V3-7S sits at the top of that range with 2,920 kg. 1231 Yanmar models across 70 series are on record.

Yanmar V Series — the smallest class in Yanmar's wheel-loader lineup

The V Series covers three models in the database: V1-1A, V2-3B and V3-7S, at 12.5 to 18.9 kW and consistently three-cylinder engines — the smallest size class in the manufacturer's wheel-loader lineup. Yanmar has built wheel loaders since 1975 by its own account and positions the V line as the entry class for jobs where a compact wheel loader suffices instead of heavy jobsite equipment.

Read on 4 more paragraphs

This size class is defined by a compact build with a narrow transport width and a low centre of gravity, easing manoeuvring in tight yards, barns or greenhouses where larger wheel loaders simply wouldn't fit.

Machines in this class accordingly see most use in agriculture, municipal services, and landscaping — anywhere manoeuvrability and low weight matter more than high payload.

For a used small wheel loader in this class, pay particular attention to the articulation joint and centre pin, as well as the tyres, which wear unevenly under frequent switching between yard and field work.

In short: the V Series isn't the technological spearhead but the lower end of Yanmar's wheel-loader range — compact, simple, and built for tight working environments.

Sources: SpecCodex register, model data: Yanmar V Series, — Yanmar's compact wheel loaders offer range of sizes, capacities (equipmentworld.com)

Technical data

Engine

Engine model	3TNV88-EPKAH2correct
Fuel	dieselcorrect
Power	25.7 hp (18.9 kW)correct
Cylinders	3correct

Dimensions and weights

Length	4,115 mmcorrect
Width	1,570 mmcorrect
Height	2,470 mmcorrect

Other data

Bucket capacity	0.4 m³correct
Displacement	1,642 lcorrect
Operating weight	2,920 kgcorrect
Rated operating capacity	700 kgcorrect
Travel speed	15 / 6correct

Frequently asked questions

How much power does the Yanmar V3-7S have?

The Yanmar V3-7S delivers 25.7 hp.

What engine does the Yanmar V3-7S have?

3 cylinders, Diesel.

What are the dimensions of the Yanmar V3-7S?

4,115 mm × 1,570 mm × 2,470 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
