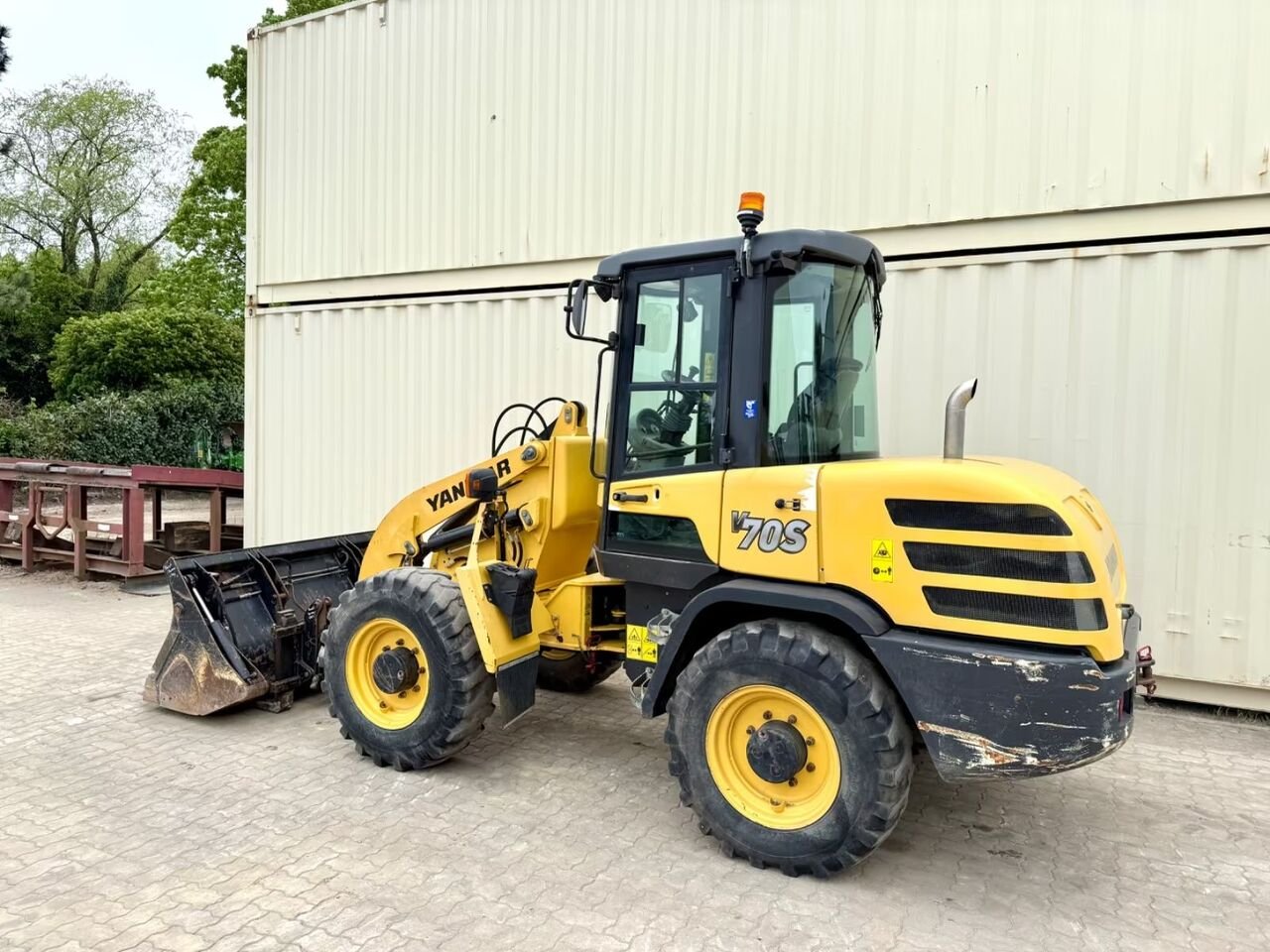

Yanmar V2-3B

Series: V Series

Source: https://www.truck1.eu/construction-machinery/wheel-loaders/y

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The V Series series from Yanmar includes the V2-3B. The engine delivers 23.2 hp (17.3 kW), has 3 cylinders. The machine is 3,620 mm long, 1,400 mm wide and 2,520 mm high. The fuel is diesel. The operating weight is 1,940 kg. Bucket capacity is 0.3 m³. The engine fitted is the 3TNV82A-QKAH. The V Series series covers 3 models. Rated output within it ranges from 16.8 to 25.7 hp; the V2-3B sits in the upper part of that range with 23.2 hp. Its immediate neighbours are the V1-1A below it with 16.8 hp and the V3-7S above it with 25.7 hp. Operating weight within it ranges from 1,110 to 2,920 kg; here the V2-3B sits in the middle of that range with 1,940 kg. 1231 Yanmar models across 70 series are on record.

Yanmar V Series — the smallest class in Yanmar's wheel-loader lineup

The V Series covers three models in the database: V1-1A, V2-3B and V3-7S, at 12.5 to 18.9 kW and consistently three-cylinder engines — the smallest size class in the manufacturer's wheel-loader lineup. Yanmar has built wheel loaders since 1975 by its own account and positions the V line as the entry class for jobs where a compact wheel loader suffices instead of heavy jobsite equipment.

Read on 4 more paragraphs

This size class is defined by a compact build with a narrow transport width and a low centre of gravity, easing manoeuvring in tight yards, barns or greenhouses where larger wheel loaders simply wouldn't fit.

Machines in this class accordingly see most use in agriculture, municipal services, and landscaping — anywhere manoeuvrability and low weight matter more than high payload.

For a used small wheel loader in this class, pay particular attention to the articulation joint and centre pin, as well as the tyres, which wear unevenly under frequent switching between yard and field work.

In short: the V Series isn't the technological spearhead but the lower end of Yanmar's wheel-loader range — compact, simple, and built for tight working environments.

Sources: SpecCodex register, model data: Yanmar V Series, — Yanmar's compact wheel loaders offer range of sizes, capacities (equipmentworld.com)

Technical data

Engine

Engine model	3TNV82A-QKAHcorrect
Fuel	dieselcorrect
Power	23.2 hp (17.3 kW)correct
Cylinders	3correct

Dimensions and weights

Length	3,620 mmcorrect
Width	1,400 mmcorrect
Height	2,520 mmcorrect

Other data

Bucket capacity	0.3 m³correct
Displacement	1.33 lcorrect
Operating weight	1,940 kgcorrect
Rated operating capacity	500 kgcorrect
Travel speed	15.0 / 8.0correct

Frequently asked questions

How much power does the Yanmar V2-3B have?

The Yanmar V2-3B delivers 23.2 hp.

What engine does the Yanmar V2-3B have?

3 cylinders, Diesel.

What are the dimensions of the Yanmar V2-3B?

3,620 mm × 1,400 mm × 2,520 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
