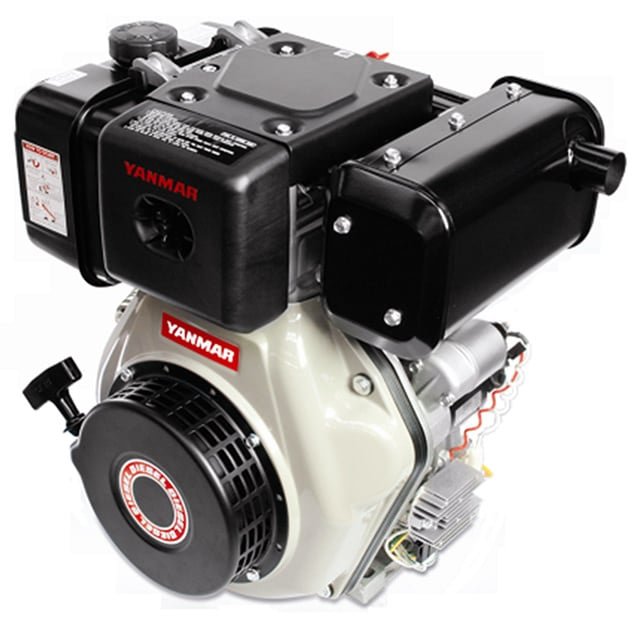

Yanmar Power Technology L70W6-E

Built: 2024-2026 · Series: Other models

Source: https://www.lectura-specs.com/en/model/components/engines-ya

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yanmar Power Technology L70W6-E is a machine built by Yanmar Power Technology. Production: 2024-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 5 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar Power Technology range ranges from 5 to 160 kW; the L70W6-E sits at the bottom of that range with 5 kW. Its immediate neighbours are the 2TNV70-V above it with 6 kW. 631 Yanmar Power Technology models are on record. The model is listed under Non-road diesel engines. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine familyTYDXL.320H1Ecorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output5 kWcorrect
Power bandkW<8correct
Rated speed3,600 rpmcorrect
Maximum torque17.3 N·mcorrect
Speed at max. torque2,300 rpmcorrect
Cylinders1correct
Cylinder layoutin linecorrect
Bore78 mmcorrect
Stroke67 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Sales regionbothcorrect

Frequently asked questions

How much power does the Yanmar Power Technology L70W6-E have?

The Yanmar Power Technology L70W6-E delivers 5 kW.

When was the Yanmar Power Technology L70W6-E built?

Production years: 2024-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
