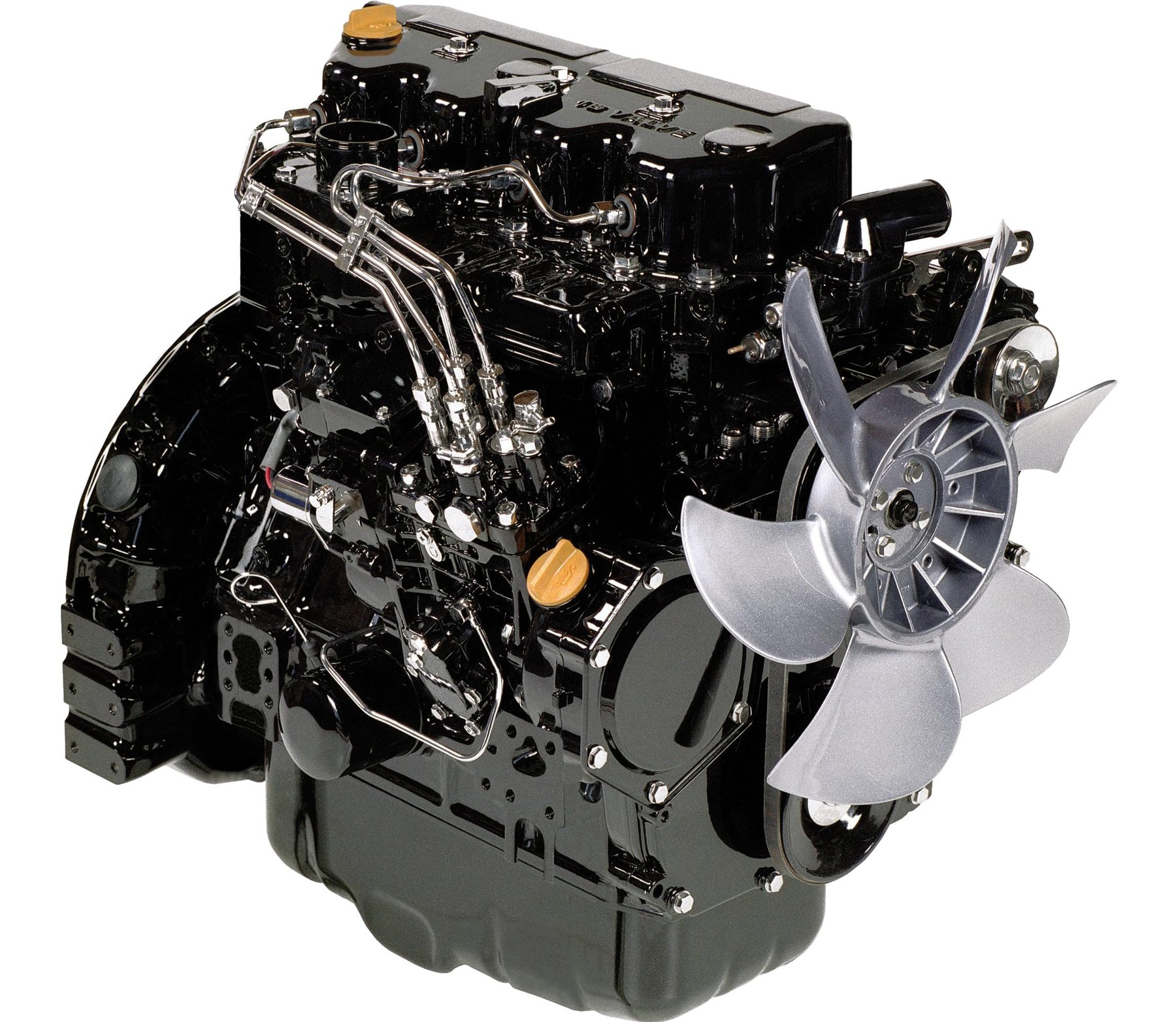

Yanmar Power Technology 2CA1-L

Built: 2012-2012 · Series: Other models

Source: https://storage.googleapis.com/dhjebofffcpmpe/how-does-a-yan

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 2CA1-L comes from Yanmar Power Technology. Production: 2012. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 8 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar Power Technology range ranges from 5 to 160 kW; the 2CA1-L sits at the bottom of that range with 8 kW. Its immediate neighbours are the TK270M below it with 7 kW and the 5ENGAA above it with 9 kW. 631 Yanmar Power Technology models are on record. The model is listed under Non-road diesel engines. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine familyCYDXL0.57V2Ncorrect
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output8 kWcorrect
Power band8<=kW<19correct
Rated speed2,700 rpmcorrect
Maximum torque33.6 N·mcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders2correct
Cylinder layoutin linecorrect
Bore70 mmcorrect
Stroke74 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectionindirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Sales regionbothcorrect

Frequently asked questions

How much power does the Yanmar Power Technology 2CA1-L have?

The Yanmar Power Technology 2CA1-L delivers 8 kW.

When was the Yanmar Power Technology 2CA1-L built?

Production years: 2012.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
