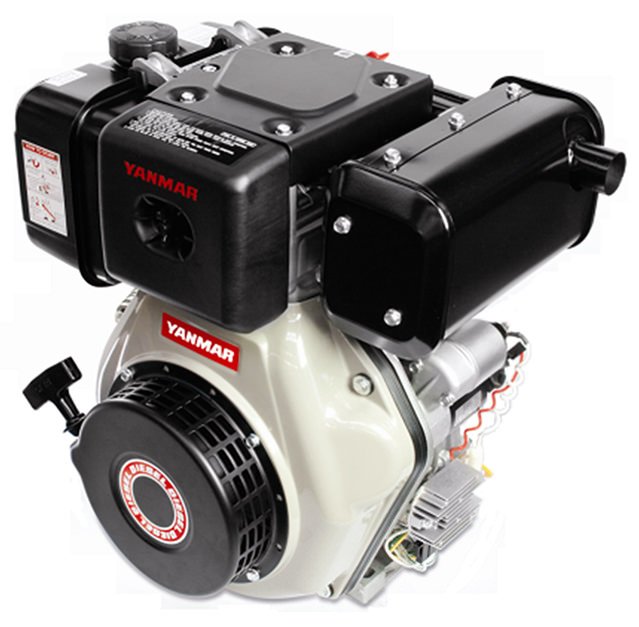

Yanmar L100W
Series: L-W Series
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Yanmar L-W Series – air-cooled single-cylinder industrial engines of the register: L70W and L100W from Yanmar's long-running L engine family for pumps, compressors and stationary drives
The Yanmar L-W Series brings together on this collective page two air-cooled single-cylinder diesel engines: L100W and L70W. Yanmar was founded in 1912 in Osaka and released its first series-produced small diesel engine in 1933; the L range is one of Yanmar's best-known families of air-cooled single-cylinder engines and has been built in numerous versions for decades, without needing a water-cooling circuit with a radiator, hoses and a water pump.
Read on 3 more paragraphs
The register lists here two versions, L100W and L70W, with 4.8 to 6.8 kW or 6.5 to 9.2 hp at 3,600 rpm; displacement ranges from 320 to 435 cm³, dry weight from 38 to 48.5 kg. Both are naturally aspirated, air-cooled single-cylinder diesel engines meeting the EPA/CARB Final Tier 4 emission standard.
Air-cooled single-cylinder diesel engines like the L range classically drive stationary applications such as pumps, compressors, small construction machinery and generator sets, where a simple, rugged design without a water-cooling circuit is wanted; the L range is one of Yanmar's longest-lived and most widely used engine families and is used worldwide by third-party makers as a build-in engine for irrigation pumps, tillers and simple agricultural equipment, where straightforward maintenance without water-cooling service matters most.
When buying used, what counts on these single-cylinder engines is the condition of the cooling fins and fan wheel, compression, and the condition of the fuel pump and injector; uneven running often points to wear in the injection system or valves, and a damaged fan wheel can quickly cause overheating on an air-cooled engine. Spare parts run through Yanmar's industrial engine distribution.
Sources: SpecCodex register, model data: Yanmar L-W Series, Yanmar (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 9.2 hp (6.8 kW)correct |
| Cylinders | 1correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Dry weight | 48.5 kgcorrect |
|---|
Other data
| Aspiration | naturally aspiratedcorrect |
|---|---|
| Bore × stroke | 86x75correct |
| Dimensions | 429x472x494correct |
| Displacement | 435 lcorrect |
| Emission stage | EPA/CARB Final Tier4correct |
| Speed | 3,600 rpmcorrect |
Frequently asked questions
How much power does the Yanmar L100W have?
The Yanmar L100W delivers 9.2 hp.
What engine does the Yanmar L100W have?
1 cylinders, Diesel.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
