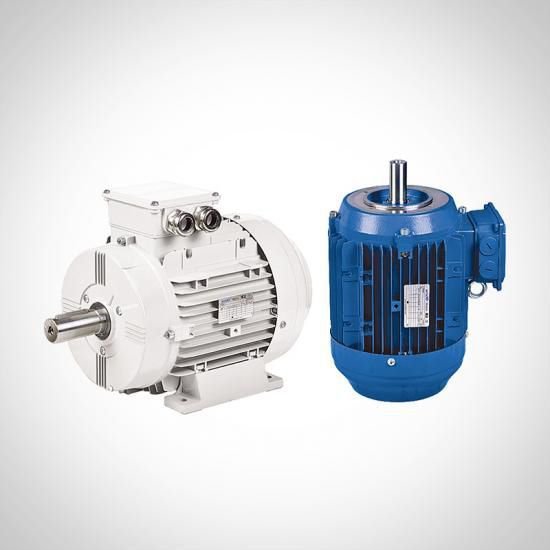

Wonder WEA 180L6 – specifications
Series: WEA
With the WEA 180L6, Wonder offers a three-phase induction motor in the WEA series. The rated output is 15 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 180 L in foot-mounted form. The protection class is IP55, IP56 and IP66. The efficiency is 89.8 per cent at full load, 90.1 per cent at 75 per cent load and 88.9 per cent at half load. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). The WEA series covers 11 models. Rated output within it ranges from 1.1 to 22 kW; the WEA 180L6 sits in the upper part of that range with 15 kW. Its immediate neighbours are the WEA 160M4 below it with 11 kW and the WEA 160L2 above it with 18.5 kW. 80 Wonder models across 5 series are on record.
Build year not documented · Data origin: Official register · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Wonder WEA – three-phase motors made in China across the full pole spectrum: frame sizes 100 to 180, 1.1 to 22 kW, two- to eight-pole, efficiency 75 to 92%, four-voltage design
The WEA range extends Wonder's line-up beyond the purely low-speed WE range to the full common pole spectrum from two to eight poles. The type plates WEA 160L-4, WEA 160M1-2 and WEA 180L6 show that fast-running two-pole and slow-running six- and eight-pole variants are listed under the same series name. This lets WEA cover a broader field of applications on a single collective page than the specialised WE range.
Read on 3 more paragraphs
The register lists 11 versions with 1.1 to 22 kW rated output, two- to eight-pole, at a uniform four-voltage combination of 400/415/440/690 V. Full-load efficiency ranges from 74.98 to 92.04%, and at 75% load from 75.14 to 92.28%. Frame sizes span 100 to 180.
The span from two- to eight-pole motors under the same series name allows a single brand family to serve both fast-running pump and compressor drives and slow-running agitators and fans. Efficiency correlates noticeably with frame size: larger, more powerful versions tend to reach the upper end of the stated range.
For a replacement in this broad range, the exact match of pole count and frame size to the existing drive matters most, since WEA motors, despite sharing a series name, cover technically very different speed ranges. The uniform, extensive mounting code with foot, flange and vertical variants nonetheless makes finding spare parts within the range easier.
Sources: SpecCodex register, model data: Wonder WEA, Zulassungsdaten GEMS/MEPS (Australien, Neuseeland)
Technical data
Engine
| Rated output | 15 kWcorrect |
|---|
Electrical data
| Rated voltage | 400/415/440/690 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP55, IP56, IP66correct |
| Frame size | 180 L (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B35, V1, V3, V5, V6, V36correct |
| Efficiency at full load | 89.77 %correct |
| Efficiency at 75 % load | 90.07 %correct |
| Efficiency at half load | 88.86 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
