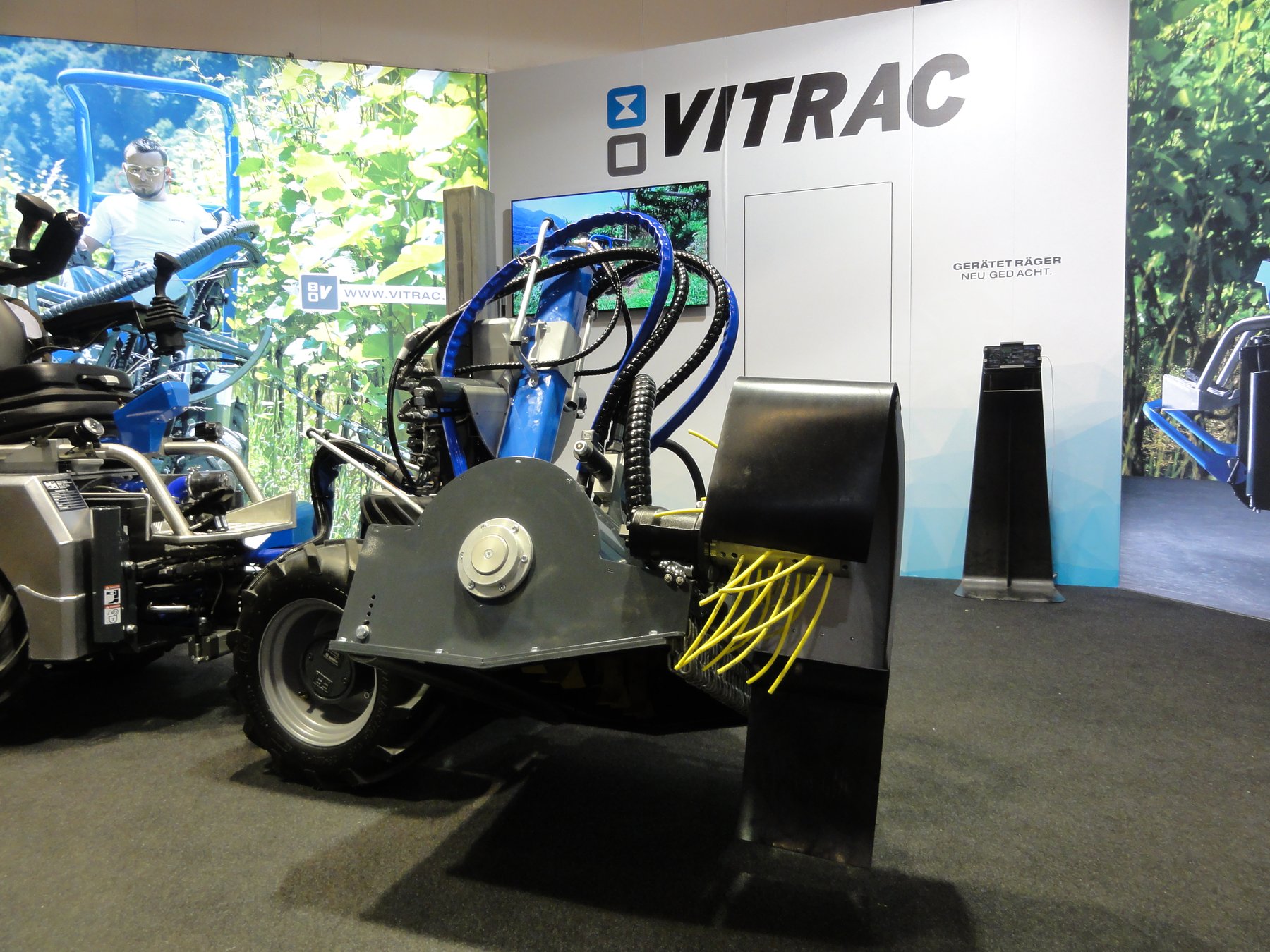

Wm Agri Technics VITRAC – narrow-track diesel tractor from 2015: four-cylinder engine of 1,327 cc and 32 hp, only 800 mm wide and 1,500 mm high, built for vineyard and orchard rows
The VITRAC by Wm Agri Technics dates from 2015 and, at only 800 mm wide and 1,500 mm high, is clearly built as a narrow-track specialist tractor for working between tight rows of vines or fruit trees. The model name itself points to this use.
Read on 3 more paragraphs
The water-cooled four-cylinder diesel engine has a displacement of 1,327 cc and produces 32 hp, or 23.5 kW. At 2,550 mm long and 750 kg unladen weight, the VITRAC has a design top speed of just 10 km/h, which is typical and entirely sufficient for the slow, careful pace of work inside narrow plantations.
Narrow-track tractors of these dimensions are tailored to vineyard, orchard and specialty-crop work, where the slim build allows passage through tight rows without damaging the crop. The low overall height also lowers the centre of gravity and improves stability on the slopes that are common in vineyards and orchards alike.
When buying a used narrow-track tractor of this kind, the steering gear and steering knuckles deserve particular attention, since the tight build is worked harder than on a standard tractor. Also important are the tightness of the hydraulic system for implements such as mulchers or sprayers and the condition of the tyres, which on machines this narrow are often an unusual special size that is not always easy to source quickly.
Sources: SpecCodex-Register: Kennwerte des Modells Wm Agri Technics VITRAC
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 32 hp (23.5 kW)correct |
| Cylinders | 4correct |
| Displacement | 1,327 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,550 mmcorrect |
|---|---|
| Width | 800 mmcorrect |
| Height | 1,500 mmcorrect |
| Unladen weight | 750 kgcorrect |
Drivetrain and chassis
| Drive | hydrostatic drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 5, 70 - 12correct |
| Rear tyres | 5, 70 - 12correct |
| Top speed | 10 km/hcorrect |
Working data
| Fuel tank capacity | 20 lcorrect |
|---|
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | bis 11/2016 25correct |
Where this model stands
Power-to-weight ratio: 31.3 kW/t (24 kW / 0.8 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Wm Agri Technics VITRAC have?
The Wm Agri Technics VITRAC delivers 32 hp.
How much does the Wm Agri Technics VITRAC weigh?
The unladen weight is 750 kg.
What engine does the Wm Agri Technics VITRAC have?
4 cylinders, 1,327 cm³ displacement, Diesel.
How fast does the Wm Agri Technics VITRAC go?
Top speed is 10 km/h.
What are the dimensions of the Wm Agri Technics VITRAC?
2,550 mm × 800 mm × 1,500 mm.
When was the Wm Agri Technics VITRAC built?
Production years: 2015.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
