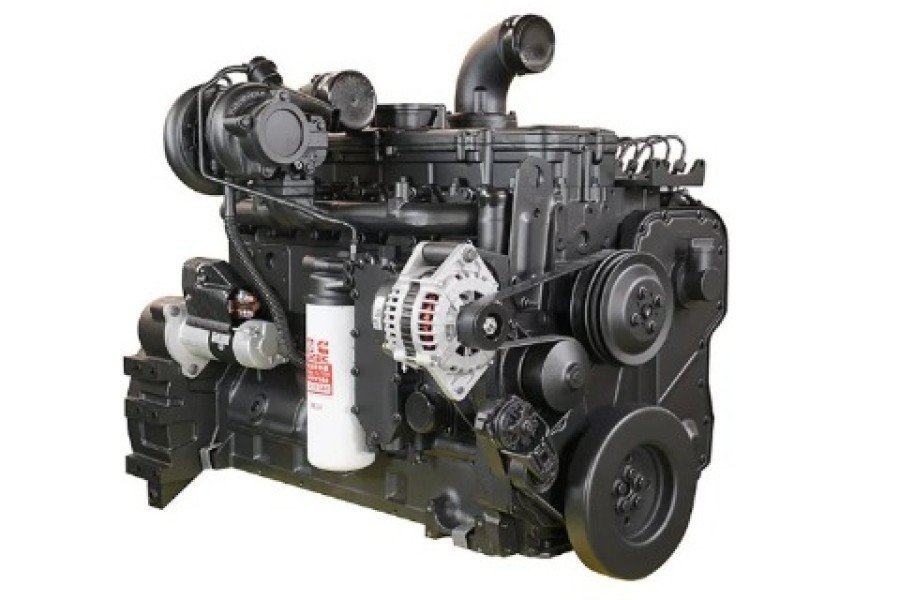

Wing Fuel Systems 6.8L-3V
Built: 2017 · Series: Other models
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Wing Fuel Systems – other heavy-duty road engines: the collective page of Ford base engines converted to natural gas and LPG, 6.6 to 7.3 litres, 227 to 401 hp, model years 2018 to 2026
Wing Fuel Systems is a US converter that adapts diesel base engine platforms for heavy road vehicles to natural-gas or LPG operation and certifies the resulting engines separately with the EPA. This page gathers the engines the register could not assign to a named range; chassis designations such as E-450 or F-650/F750 and the engine-family codes with the digits 06.6, 06.8 and 07.3 point to the underlying Ford 6.6-, 6.8- and 7.3-litre engines.
Read on 3 more paragraphs
The register lists here 6 versions with 227 to 401 hp rated output at 4,000 to 4,676 rpm, all with sequential fuel injection. Four versions run on compressed natural gas, two additionally offer petrol as an option. Model years range from 2018 to 2026. Maximum torque ranges from 337 to 368 Nm at 3,230 to 4,482 rpm; certification applies to the USA in each case.
Natural-gas and LPG conversions such as those from Wing Fuel Systems target fleet operators of vans and medium trucks looking to switch to alternative fuels, for instance in urban delivery traffic or municipal fleets facing emission requirements.
When buying a used vehicle with a converted gas engine, what matters above all is the condition of the gas tanks and their inspection dates, the tightness of gas lines and injection valves, the condition of the spark plugs on the petrol-capable versions, and complete documentation of the conversion and EPA certification; service and spares run through the Wing Fuel Systems network.
Sources: SpecCodex register, model data: Wing Fuel Systems (weitere Heavy-Duty-Straßenmotoren)
Technical data
Engine
| Engine code | HBAF683Vcorrect |
|---|---|
| Engine family | HBAFE06.8BW6correct |
| Fuel | Compressed Natural Gascorrect |
| Rated output | 191.6 kW (= 257 hp)correct |
| Rated speed | 4,000 rpmcorrect |
| Maximum torque | 355 ft·lbfcorrect |
| Speed at max. torque | 4,000 rpmcorrect |
| Displacement | 6,800 cm³correct |
| Displacement | 6.8 lcorrect |
| Operating cycle | petrol enginecorrect |
| Injection | sequential injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
Origin and approval
| Version | HBAF683Vcorrect |
|---|---|
| Sales region | USA certificationcorrect |
Other data
| Application | Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Wing Fuel Systems 6.8L-3V have?
The Wing Fuel Systems 6.8L-3V delivers 192 kW.
What engine does the Wing Fuel Systems 6.8L-3V have?
6,800 cm³ displacement, Compressed Natural Gas.
When was the Wing Fuel Systems 6.8L-3V built?
Production years: 2017.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Parts for this engine (5)
Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.
| Part number | Description | Manufacturer |
|---|---|---|
| GC2A-12A650-XC | Engine Control Module | Wing Fuel Systems |
| 70-3023 | CNG Fuel Pressure Regulator | Wing Fuel Systems |
| 206010 | Fuel Injector | Wing Fuel Systems |
| XXX | Not used on Otto-cycle dedicated CNG engine | Wing Fuel Systems |
| GC24-5E212-JA | Three-Way Catalyst | Wing Fuel Systems |
Source: EPA HD Engines 2015–Present
