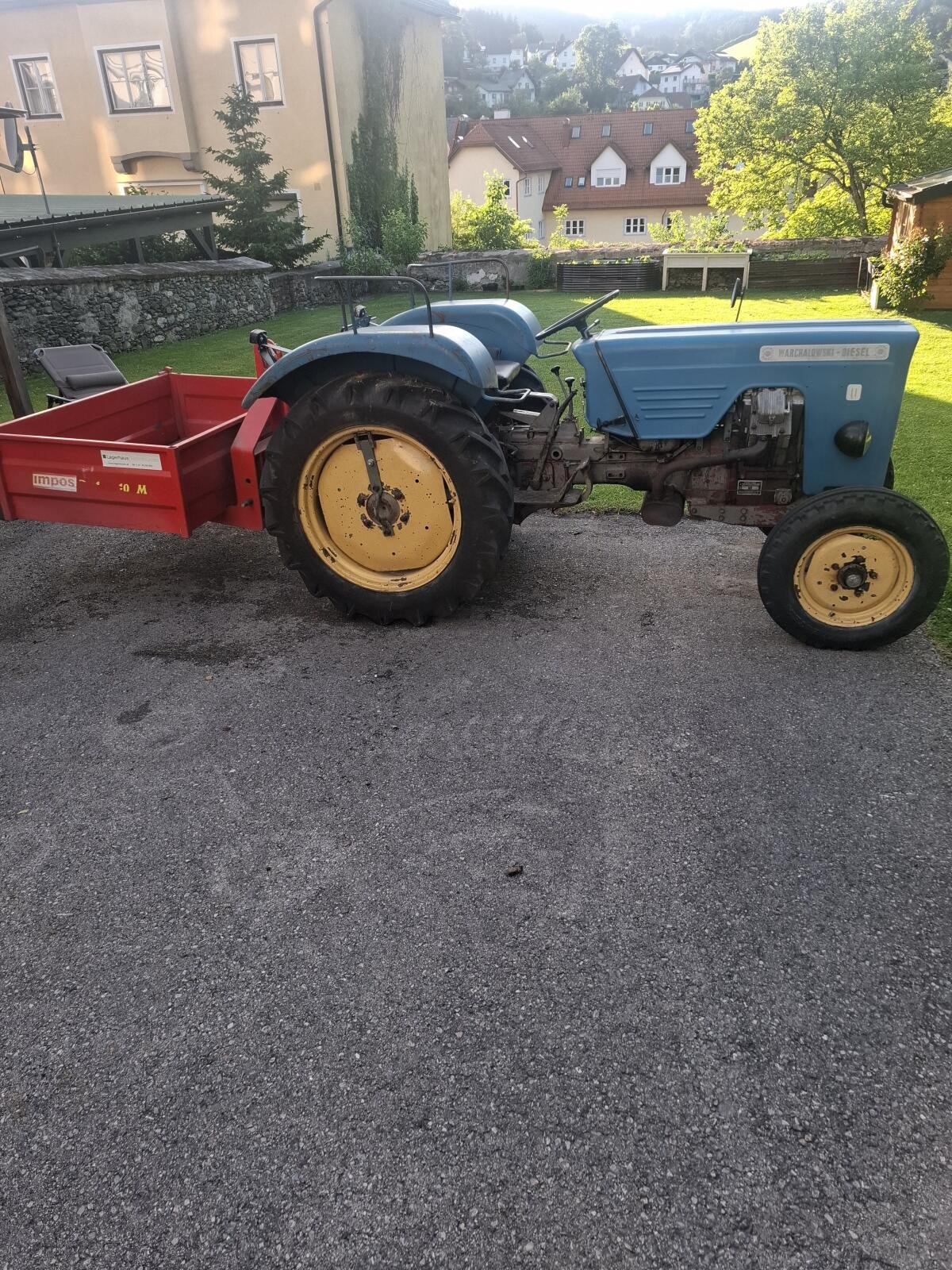

Warchalowski WT-30 B
Built: 5/1965–4/1969 · Series: WT-Serie
More machines from model year 1965
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Warchalowski WT series – Viennese tractors of the 1950s and 1960s: WT 14 to WT 50, the number as hp, A for four-wheel drive, in-house diesel engines, 10 to 33 kW
Warchalowski, Eissler & Co. of Vienna was an engine and machine builder that, like many Austrian and German engine makers after the Second World War, entered tractor building to sell its own diesel engines. The WT series – W for Warchalowski, T for Traktor – was the programme of the 1950s and 1960s for Austria's smallholder farming: the number gives the output in hp, from WT 14 to WT 50, and the suffixes A and B mark four-wheel drive and revised versions respectively. The engines with two to four cylinders came from in-house production, and the tractors were simply built and intended for mountain and grassland farms.
Read on 3 more paragraphs
The register lists 15 versions with 10.3 to 33.1 kW (18 to 45 hp), 1,022 to 2,290 cm³ with two to four cylinders, unladen weights from 855 to 1,780 kg, lengths from 2,480 to 3,380 mm, widths from 1,460 to 1,670 mm and heights from 1,240 to 1,680 mm – all diesel. Widths up to 1,670 mm and weights under 1.8 t show the class: tractors for farms of a few hectares, as formed the majority in Austria into the 1970s.
Warchalowski ended tractor production in the late 1960s when Steyr and Lindner divided the Austrian market between them and the importers came with volume models; the brand lived on for some years in engines and compressors.
Used WT tractors are rare collector pieces of Austrian farm-machinery history; when buying, engine condition and originality, gearbox and brakes and parts supply, which runs only through collectors and remanufacturers, are what count.
Sources: SpecCodex register, model data: Warchalowski WT-Serie, Warchalowski (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 30 hp (22.1 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,734 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 18correct |
| Injection pressure | 150 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,150 mmcorrect |
|---|---|
| Width | 1,670 mmcorrect |
| Height | 1,520 mmcorrect |
| Wheelbase | 1,985 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 1,410 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 Rcorrect |
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 10-28 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 36 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 465correct |
Where this model stands
Power-to-weight ratio: 15.7 kW/t (22 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 17% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Warchalowski WT-30 B have?
The Warchalowski WT-30 B delivers 30 hp.
How much does the Warchalowski WT-30 B weigh?
The unladen weight is 1,410 kg.
What engine does the Warchalowski WT-30 B have?
2 cylinders, 1,734 cm³ displacement, Diesel.
How fast does the Warchalowski WT-30 B go?
Top speed is 30 km/h.
What are the dimensions of the Warchalowski WT-30 B?
3,150 mm × 1,670 mm × 1,520 mm.
When was the Warchalowski WT-30 B built?
Production years: 5/1965–4/1969.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
