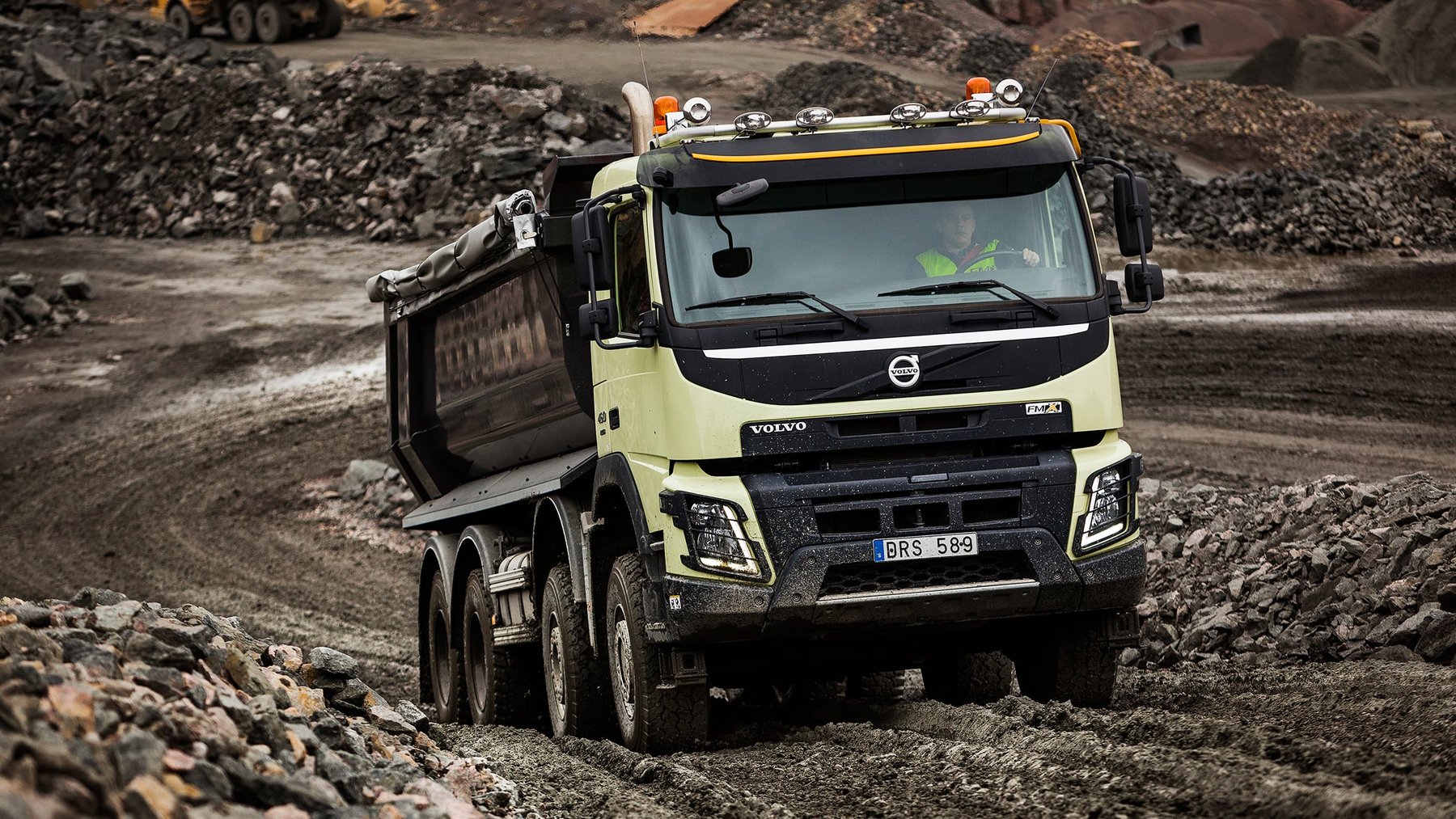

Volvo FM-SERIEN
Built: 2013-2014 · Series: FM-SERIEN
More machines from model year 2013
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo FM series – medium-duty range between FL and FH, D11/D13 straight-sixes from 10.8 to 12.8 litres, gross weight from 19 to 36 tonnes, for haulage and construction
The Volvo FM series is the medium-duty range between compact distribution vehicles and the flagship FH, covering both long-haul work and construction and municipal duties. The numbers after the FM designation – 370, 410, 450, 460 and 500 – denote engine output in horsepower; U3FMA3 is an internal chassis or registration code. Models in the register are powered by two straight-six engine families: the 10.8-litre D11 in the lower-output versions and the 12.8-litre D13 in the more powerful ones. Volvo deliberately positions the FM series between the road-focused FH and the construction-focused FMX.
Read on 3 more paragraphs
The register lists 7 versions with straight-sixes ranging from 10.8 to 12.8 litres. Unladen weight ranges from 8,600 to 21,000 kg, gross vehicle weight from 19,000 to 36,000 kg. Length runs from 6,500 to 10,350 mm and width from 2,550 to 2,600 mm.
The FM series is used as a tractor unit in long-haul haulage just as much as a chassis for tipper, crane and swap-body applications, where its versatility gives it an edge over the more specialised FH range. It therefore competes both with long-haul models and with the construction chassis of Scania, MAN and Mercedes-Benz, covering a broader range of applications than the competitors' more specialised ranges.
On a used example, besides the usual frame and cab check, it is worth establishing exactly which engine variant is fitted, as the D11 and D13 have different service intervals and parts. On chassis with crane or tipper bodies, the hydraulic connections and frame reinforcements should be checked, and on tractor units the fifth wheel and air suspension. The AdBlue system and particulate filter should be checked for fault codes on all versions. Parts supply through the Volvo dealer network is very good.
Sources: SpecCodex register, model data: Volvo FM-Serien, Volvo Trucks (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,777 cm³correct |
Dimensions and weights
| Length | 9,770 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Wheelbase | 5,200 mmcorrect |
| Unladen weight | 10,650 kgcorrect |
| Gross vehicle weight | 19,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the Volvo FM-SERIEN weigh?
The unladen weight is 10,650 kg.
What is the gross vehicle weight of the Volvo FM-SERIEN?
19,000 kg.
What engine does the Volvo FM-SERIEN have?
6 cylinders, 12,777 cm³ displacement.
How fast does the Volvo FM-SERIEN go?
Top speed is 90 km/h.
What are the dimensions of the Volvo FM-SERIEN?
9,770 mm × 2,600 mm.
When was the Volvo FM-SERIEN built?
Production years: 2013-2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
