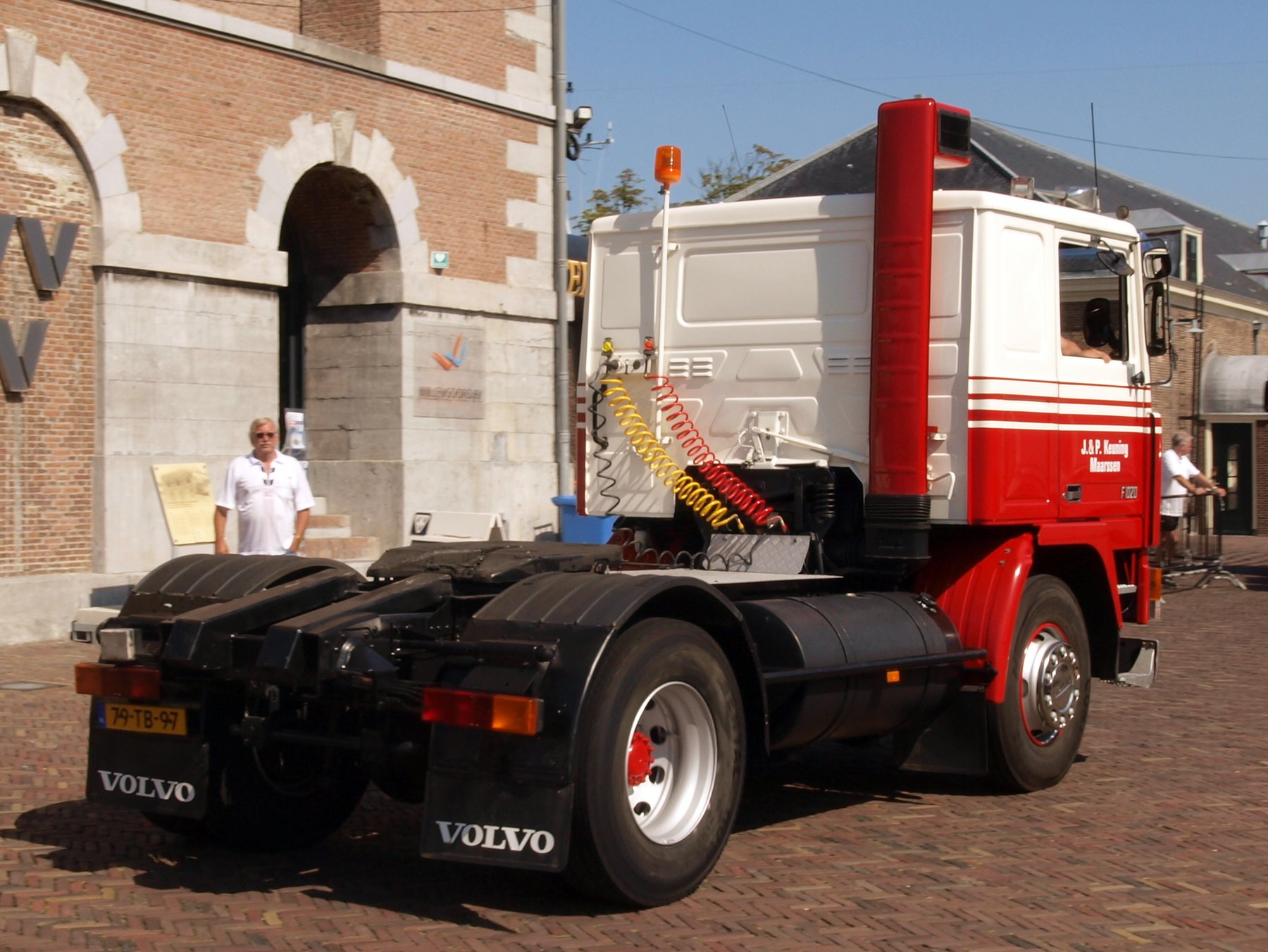

Volvo F10 4X2
Built: 1984 · Series: F10
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo F10, F12 and F16 – the classic long-haul trucks of 1977 to 1993: four- to six-cylinder in-line engines, 213 to 368 kW, 9.6 to 12 litres of displacement
The Volvo F10, together with the more powerful sister models F12 and F16, forms the second generation of Volvo's long-haul trucks, launched in 1977 as the successor to the F86/F88/F89 range at the Tuve plant near Gothenburg and built until replacement by the FH range in 1993. The number in the type designation gives the approximate displacement class: F10 for around 10 litres, F12 for around 12 litres and F16 for the range's largest in-line engine; suffixes such as 4X2, 6X2 and 8X2 in the model names denote the number of axles and the drive configuration.
Read on 3 more paragraphs
The register lists 11 versions with outputs from 213 to 368 kW from in-line engines with four to six cylinders and 9,600 to 11,983 cm³ of displacement. Unladen weights range from 7,090 to 13,770 kg, gross weights from 17,000 to 25,000 kg, lengths from 5,600 to 9,600 mm and widths from 2,480 to 2,550 mm.
The F10, F12 and F16 were the backbone of Volvo's long-haul fleet in the 1980s and competed directly with Scania's 2 and 3 series and with the Mercedes-Benz NG; with the F16, Volvo fielded one of the most powerful production trucks in Europe at the time. The range also set the boxy cab shape Volvo kept until the FH generation.
When buying used, the condition and mileage of the in-line engine, the clutch and manual gearbox, the frame and leaf springs, and the brake system and cab mounts all matter. Rust on the frame rails, cab floor and wings is common on the older model years; parts for engine and drivetrain are available through Volvo specialists and the independent parts trade.
Sources: SpecCodex register, model data: Volvo F10, Volvo Trucks (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 9,600 cm³correct |
Dimensions and weights
| Length | 5,600 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 3,400 mmcorrect |
| Unladen weight | 7,685 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|
Frequently asked questions
How much does the Volvo F10 4X2 weigh?
The unladen weight is 7,685 kg.
What is the gross vehicle weight of the Volvo F10 4X2?
18,000 kg.
What engine does the Volvo F10 4X2 have?
6 cylinders, 9,600 cm³ displacement.
What are the dimensions of the Volvo F10 4X2?
5,600 mm × 2,550 mm.
When was the Volvo F10 4X2 built?
Production years: 1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
