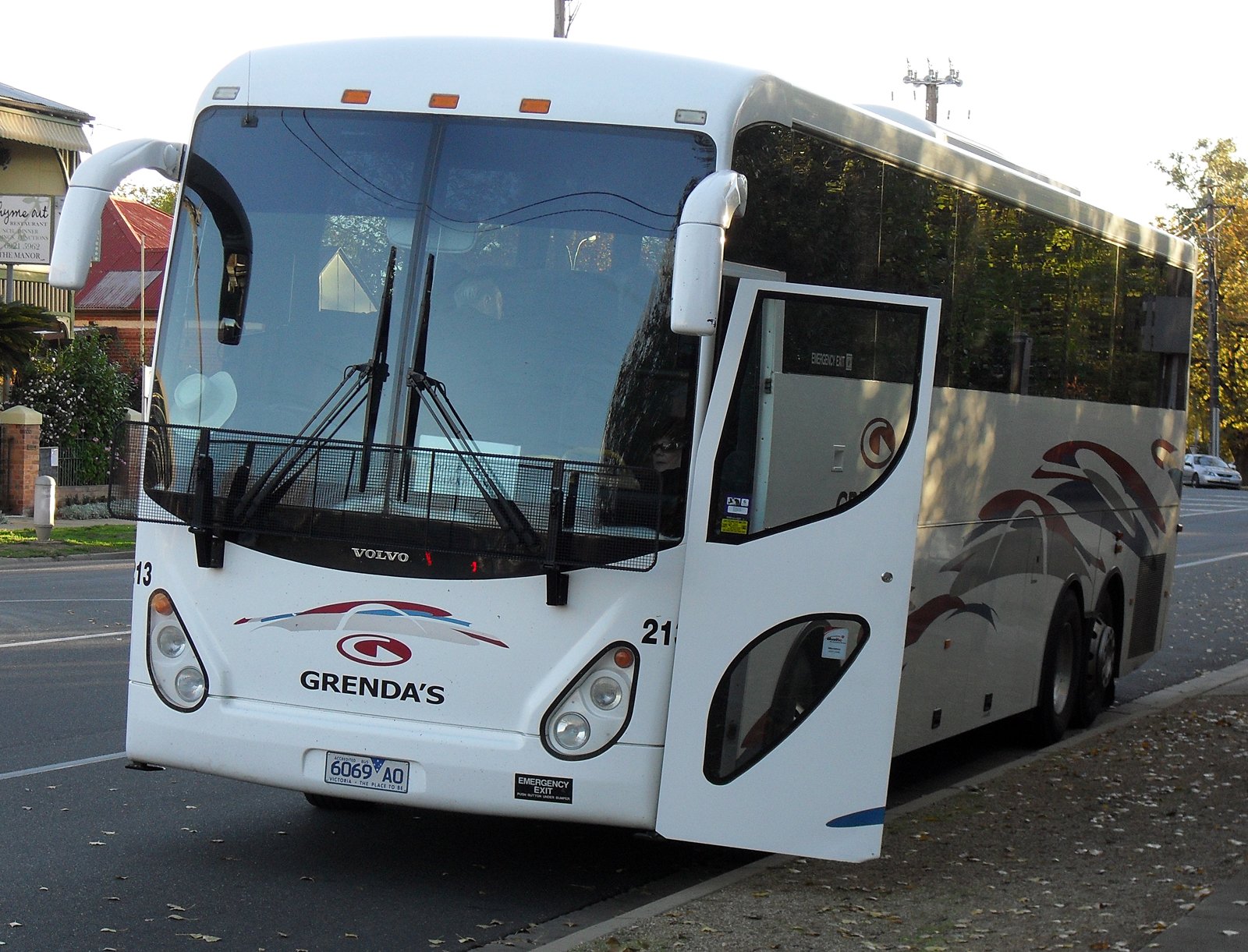

Volvo B12M 4X2 – specifications

Built: 2002-2010 · Series: B12M

With the B12M 4X2, Volvo offers a model from the B12M series. Production: 2002-2010. The engine delivers 250 kW, has 6 cylinders, with a displacement of 12,300 cm³. The vehicle is 12,000 mm long and 2,550 mm wide. The unladen weight is 16,435 kg. The wheelbase measures 6,200 mm. Top speed is 90 km/h. The gross vehicle weight is 19,000 kg. The vehicle runs on 6 wheels. The B12M series covers 5 models. Rated output within it ranges from 250 to 309 kW; the B12M 4X2 sits at the bottom of that range with 250 kW. Its immediate neighbours are the B12M 4X2 9700S above it with 309 kW. Unladen weight within it ranges from 13,000 to 16,435 kg; here the B12M 4X2 sits at the top of that range with 16,435 kg. 8903 Volvo models across 145 series are on record.

Data for the version built 2002-2010 · Data origin: Official register · sources

More machines from model year 2002

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Volvo B12M – mid-engined bus chassis: 12-litre six-cylinder engine rated at 250 to 309 kW, 12.0 to 13.5 metres long, 19 tonnes gross vehicle weight

The B12M is not a lorry in the strict sense but a Volvo bus chassis with a twelve-litre six-cylinder engine mounted centrally, supplied to coachbuilders for touring and line-service buses; Volvo's B denotes a bus chassis, the twelve the engine displacement in litres, and M the mid-mounted engine position. The models B12M, B12M 4X2, B12M 4X2 9700S, B12M 9700S and B12M/(620) show different body variants, including the well-known 9700S coach body.

Read on 3 more paragraphs

The register lists 5 versions with 250 to 309 kW from six-cylinder engines of 12,100 to 12,300 cm³, kerb weights of 13,000 to 16,435 kg, a gross vehicle weight of 19,000 kg, lengths of 12,000 to 13,500 mm and widths of 2,510 to 2,550 mm.

As a chassis for coachbuilders, the B12M formed the technical basis of numerous European coaches for many years, competing with comparable chassis from Mercedes-Benz, MAN and Scania, before Volvo increasingly offered complete buses of its own manufacture. The mid-mounted engine allowed a lower floor and more luggage space than chassis with a rear-mounted unit.

When buying such a chassis, the condition of the mid-mounted engine and its cooling, wear on the clutch and automatic gearbox, and corrosion on the load-bearing frame under the bus body deserve checking; engine and chassis parts are supplied through the Volvo commercial-vehicle network.

Sources: SpecCodex register, model data: Volvo B12M, Volvo Trucks (manufacturer)

Technical data

Engine

Power250 kWcorrect
Cylinders6correct
Displacement12,300 cm³correct

Dimensions and weights

Length12,000 mmcorrect
Width2,550 mmcorrect
Wheelbase6,200 mmcorrect
Unladen weight16,435 kg (example vehicle as registered, incl. body – not a model value)correct
Gross vehicle weight19,000 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed90 km/hcorrect

Frequently asked questions

How much power does the Volvo B12M 4X2 have?

The Volvo B12M 4X2 delivers 250 kW.

What is the gross vehicle weight of the Volvo B12M 4X2?

The gross vehicle weight of the Volvo B12M 4X2 is 19,000 kg.

What engine does the Volvo B12M 4X2 have?

The Volvo B12M 4X2 has 6 cylinders and 12,300 cm³ displacement.

How fast does the Volvo B12M 4X2 go?

The top speed of the Volvo B12M 4X2 is 90 km/h.

What are the dimensions of the Volvo B12M 4X2?

Dimensions of the Volvo B12M 4X2: length 12,000 mm, width 2,550 mm.

When was the Volvo B12M 4X2 built?

The Volvo B12M 4X2 was built from 2002 to 2010.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
