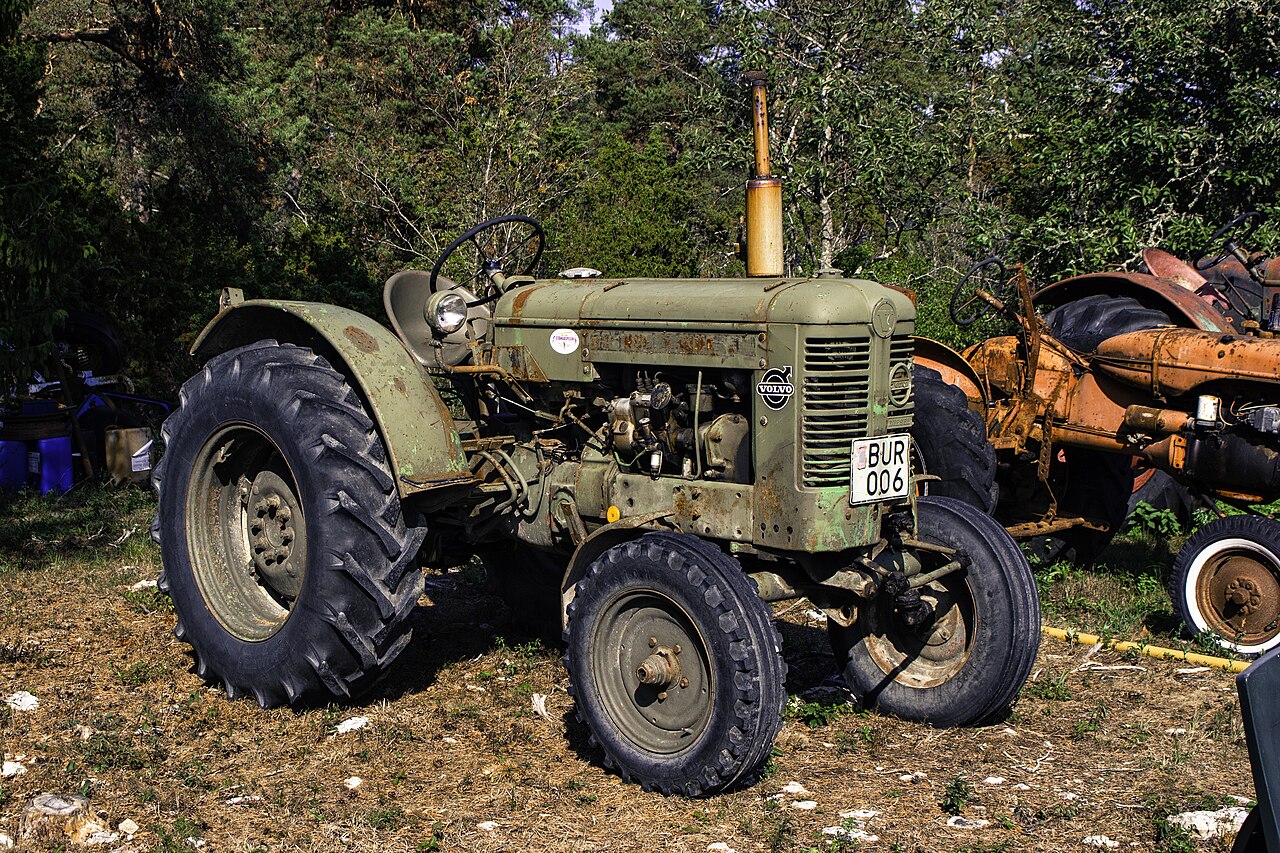

Volvo T-35
Built: 1952–1959 · Series: 30 er-Baureihe
More machines from model year 1952
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo 30 range – the Bolinder-Munktell tractors T-31 to T-36 from Eskilstuna: three- and four-cylinders of 3,362 to 3,456 cm³, 25 to 31.3 kW, available with kerosene, petrol or diesel engine
The T-31 to T-36 belong to the tractor production of Bolinder-Munktell in Eskilstuna, Sweden, which joined the Volvo group in 1950 and whose tractors were officially renamed Volvo BM in 1973. The type logic of the 1950s ordered the models as T with a running number, with higher numbers marking bigger and more powerful versions; the range stood at the transition from pre-war technology with kerosene and petrol engines to diesel technology, which is why the register shows both kerosene-and-petrol and pure diesel versions. The engines come from Bolinders, the engine works that gave the brand its name and long also traded as an independent maker of hot-bulb and later diesel engines.
Read on 3 more paragraphs
The register lists here 6 versions with 25 to 31.3 kW (34 to 42.5 hp) from three- and four-cylinders of 3,362 to 3,456 cm³, torque from 182 to 211 Nm at rated speeds of 1,500 to 1,800 rpm, unladen weights from 2,280 to 2,450 kg, lengths from 3,115 to 3,150 mm, widths from 1,690 to 1,839 mm and heights from 2,100 to 2,180 mm.
The T-30 range was one of the most-built tractors of Swedish arable farming in the 1950s, at a time when many farms switched from horse to tractor work; it thus stands for the mechanisation of Swedish agriculture, with Bolinder-Munktell as one of the two big domestic makers alongside Volvo itself.
On these classics, the condition of engine and cylinder head matters most (kerosene operation required a warm-up on petrol), the cooling system, clutch and transmission, and rust on bodywork and mudguards; spares are a matter for the vintage-tractor scene and run through specialist dealers and donor vehicles, rarely through regular Volvo trade.
Sources: SpecCodex register, model data: Volvo 30 er-Baureihe, Volvo (manufacturer)
Technical data
Engine
| Engine make | Bolinderscorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 42.5 hp (31.3 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Torque | 206 Nmcorrect |
| Speed at max. torque | 1,100 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,362 cm³correct |
| Bore | 104.77 mmcorrect |
| Stroke | 130 mmcorrect |
| Compression ratio | 16.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,150 mmcorrect |
|---|---|
| Width | 1,690 mmcorrect |
| Height | 2,130 mmcorrect |
| Wheelbase | 1,960 mmcorrect |
| Ground clearance | 525 mmcorrect |
| Unladen weight | 2,450 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 6.00-19 ASFcorrect |
| Rear tyres | 13-30 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 65 lcorrect |
|---|
Origin and approval
| Plant | Swedencorrect |
|---|---|
| Construction | frame constructioncorrect |
Where this model stands
Power-to-weight ratio: 12.8 kW/t (31 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 28% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Volvo T-35 have?
The Volvo T-35 delivers 42.5 hp.
How much does the Volvo T-35 weigh?
The unladen weight is 2,450 kg.
What engine does the Volvo T-35 have?
3 cylinders, 3,362 cm³ displacement, Diesel.
How fast does the Volvo T-35 go?
Top speed is 30 km/h.
What are the dimensions of the Volvo T-35?
3,150 mm × 1,690 mm × 2,130 mm.
When was the Volvo T-35 built?
Production years: 1952–1959.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 31 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
