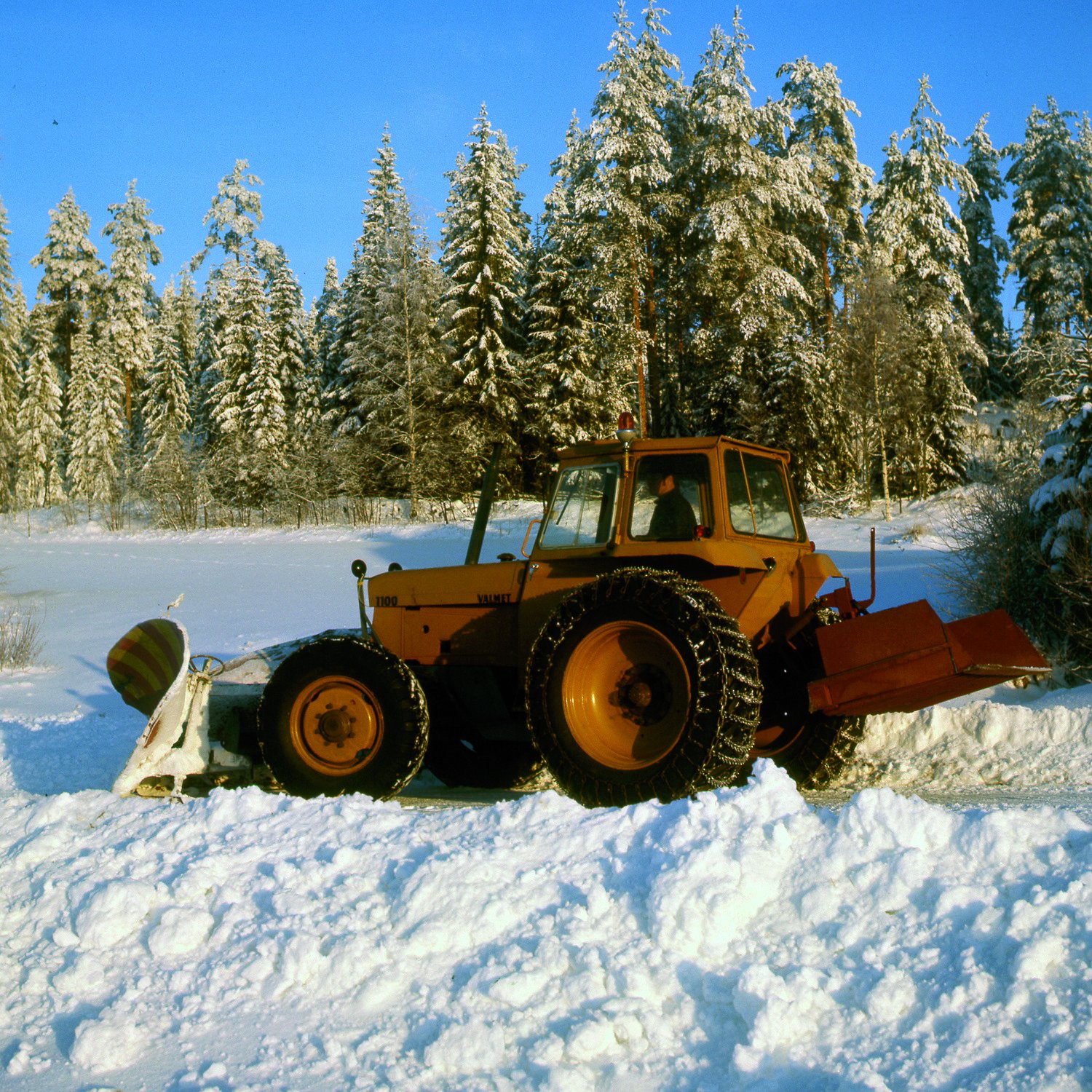

Valmet 1100

Built: 1969–1974 · Series: 100 er-Baureihe

More machines from model year 1969

Source: https://commons.wikimedia.org/w/index.php?curid=44366738 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Valmet 1100 is a model in the 100er series. Production: 1969–1974. The engine delivers 105 hp (77.2 kW), has 4 cylinders, with a displacement of 4,177 cm³. Torque is 350 Nm. Rated speed is 2,300 rpm. The machine is 3,800 mm long, 2,090 mm wide and 2,460 mm high. The unladen weight is 3,715 kg. The wheelbase measures 2,310 mm. Ground clearance is 470 mm. Top speed is 30 km/h. The tank holds 95 litres. Transmission: 8 V/2 R. The engine is water-cooled. Tyres: front 13-16 ASF, rear 18.4-34 AS. The fuel is diesel. The bore measures 108 mm. The stroke is 114 mm. The compression ratio is 17:1. Maximum torque is reached at 1,605 rpm. Construction: frame construction. The gearbox offers 8 forward gears. There are also 2 reverse gears. The linkage is category II. The PTO runs at 540/1000 rpm. The 100 er-Baureihe series covers 7 models. Rated output within it ranges from 49 to 105 hp; the 1100 sits at the top of that range with 105 hp. Its immediate neighbours are the 900 below it with 90 hp. Unladen weight within it ranges from 2,077 to 3,715 kg; here the 1100 sits at the top of that range with 3,715 kg. 414 Valmet models across 21 series are on record.

Valmet 100 series (1970s and 1980s) – the tractors from Suolahti before Mezzo and Mega: 500 to 1100, the hundreds number as power step, Mk-1 and Mk-2 as generations, Valmet three- and four-cylinders of 2.7 to 4.4 litres

The 100 series is Valmet's programme of the 1970s and 1980s – the tractors the Finnish state group built after moving production from Tourula to Suolahti in 1969 and with which it became the leading brand in Scandinavia. The type logic: the hundreds number orders the power step in ascending order – 500 about 50 hp, 600 about 60, 700 about 70, 800 about 85, 900 about 95, 1100 about 105 hp – Mk-1 and Mk-2 mark the generations of the 700, the suffixes -4 in other register ranges four-wheel drive. The engines are Valmet's own diesels from Linnavuori: the three-cylinder 311 of 2.7 litres in the small, the four-cylinder 411 of 4.4 litres in the big models, at 2,000 to 2,300 rpm – engines regarded as frugal and cold-start-proof that Valmet also supplied to other makers. The range brought the safety cab as standard equipment, with which Finland and Sweden protected the driver earlier than the rest of Europe.

Read on 3 more paragraphs

The register lists 7 versions with 36 to 77.2 kW from three- and four-cylinders of 2,685 to 4,397 cm³, torque from 168 to 350 Nm, unladen weights from 2,077 to 3,715 kg, lengths from 3,180 to 3,877 mm, widths from 1,870 to 2,177 mm and heights from 2,280 to 2,700 mm.

The 100s were the tractors of Finnish forestry and dairy farms; in 1982 the 05 series (505 to 905) followed and in 1991 the Mezzo and Mega, with which Valmet expanded into Western Europe.

On used tractors, operating hours, engine condition and injection pump, clutch and gearbox, four-wheel-drive clutch on -4 models, hydraulics and rust on cab and mudguards count; parts run through Valtra and AGCO.

Sources: SpecCodex register, model data: Valmet 100er-Baureihe, Valtra (AGCO, Rechtsnachfolger Valmet)

Technical data

Engine

Fuel	dieselcorrect
Power	105 hp (77.2 kW)correct
Rated speed	2,300 rpmcorrect
Torque	350 Nmcorrect
Speed at max. torque	1,605 rpmcorrect
Cylinders	4correct
Displacement	4,177 cm³correct
Bore	108 mmcorrect
Stroke	114 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,800 mmcorrect
Width	2,090 mmcorrect
Height	2,460 mmcorrect
Wheelbase	2,310 mmcorrect
Ground clearance	470 mmcorrect
Unladen weight	3,715 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	8 V/2 Rcorrect
Forward gears	8correct
Reverse gears	2correct
Front tyres	13-16 ASFcorrect
Rear tyres	18.4-34 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	95 lcorrect

Origin and approval

Construction	frame constructioncorrect

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 20.8 kW/t (77 kW / 3.7 t)

Power class: Large (100–180 hp)

Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Valmet 1100 have?

The Valmet 1100 delivers 105 hp.

How much does the Valmet 1100 weigh?

The unladen weight is 3,715 kg.

What engine does the Valmet 1100 have?

4 cylinders, 4,177 cm³ displacement, Diesel.

How fast does the Valmet 1100 go?

Top speed is 30 km/h.

What are the dimensions of the Valmet 1100?

3,800 mm × 2,090 mm × 2,460 mm.

When was the Valmet 1100 built?

Production years: 1969–1974.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
