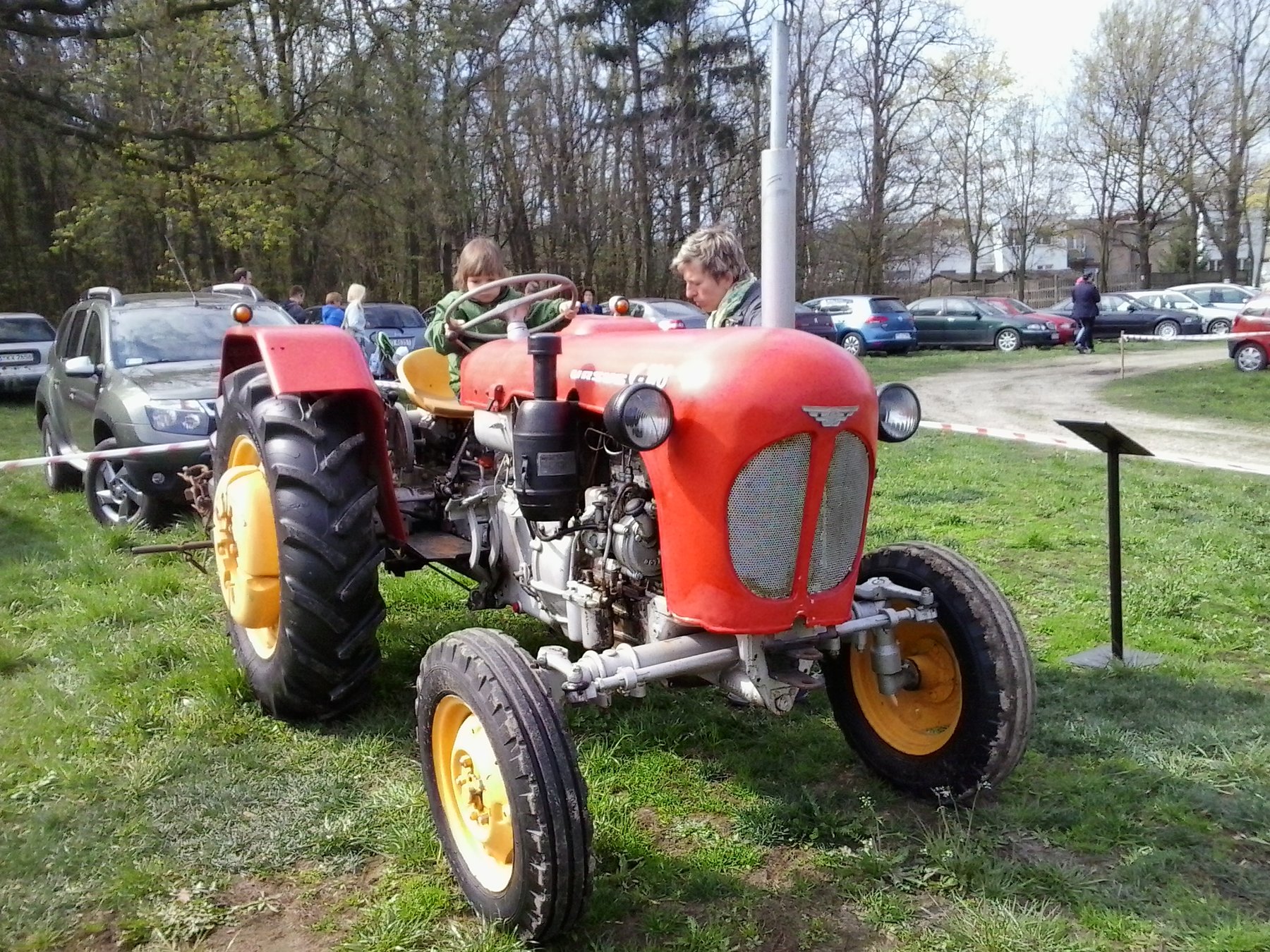

Ursus C-328 (1654 kg) – specifications
Built: 1963–7/1968 · Series: 300 er-Baureihe
The 300er series from Ursus includes the C-328. Production: 1963–7/1968. The engine delivers 28 hp (20.6 kW), has 2 cylinders, with a displacement of 1,961 cm³. Torque is 100 Nm. Rated speed is 2,200 rpm. The machine is 3,030 mm long, 1,680 mm wide and 1,500 mm high. The unladen weight is 1,654 kg. The wheelbase measures 1,850 mm. Ground clearance is 400 mm. Top speed is 23 km/h. The tank holds 35 litres. Transmission: 6 V/2 R. The engine is water-cooled. Tyres: front 6.00-16 ASF, rear 11-28 AS. The fuel is diesel. Construction: unit construction (no separate frame). The gearbox offers 6 forward gears. There are also 2 reverse gears. The linkage is category II. Around 75.056 units were built. Rated output across the Ursus range ranges from 8 to 192.6 hp; the C-328 sits at the bottom of that range with 28 hp. Its immediate neighbours are the C-325 below it with 25 hp and the C-330 above it with 30 hp. Rated output across the Ursus range ranges from 8 to 190 hp; here the C-328 sits at the bottom of that range with 28 hp. 221 Ursus models across 12 series are on record.
Data for the version built 1963–7/1968 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1963
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Ursus 300 range – Polish twin-cylinder tractors C-325 and C-328 from Warsaw: 18.4 to 20.6 kW (25 to 28 hp), 1,654 kg unladen weight
In Ursus's type logic the 300 range follows the early C models and here brings together the closely related C-325 and C-328 – two twin-cylinder diesels from the Polish maker Ursus near Warsaw, which differ mainly in output and track width but otherwise share largely the same basic design. Both types targeted smaller and medium farms that needed a simple, robust general-purpose tractor.
Read on 3 more paragraphs
The register lists 2 versions with 18.4 to 20.6 kW (25 to 28 hp) from twin-cylinder engines of 1,810 to 1,961 cm³, torque of 93 to 100 Nm, an unladen weight of 1,654 kg, a length of 3,030 mm, widths of 1,250 to 1,680 mm, a height of 1,500 mm and rated speeds of 2,000 to 2,200 rpm.
The 300s were among the common smaller tractors of Polish farming and served as general-purpose tractors for smaller and medium holdings, where manoeuvrability and low fuel consumption mattered more than high drawbar pull; within the Ursus range they thus sat a step below the larger, more powerful lines.
On used examples, the condition of the injection pump, the tightness of the cylinder head and cooling system, the state of clutch and gearbox, and rust on mudguards and bonnet all count; spare parts run through Polish farm-machinery dealers and the used market, and aftermarket reproductions for wear parts, since factory-original stock is largely exhausted after so many decades.
Sources: SpecCodex register, model data: Ursus 300er-Baureihe, Ursus (manufacturer)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| C-328 | 1963-1968 | 20.6 | — | Reference work (Wikipedia/Wikibooks) |
| ● C-328 | 1963–7/1968 | 20.6 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 28 hp (20.6 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 100 Nmcorrect |
| Cylinders | 2correct |
| Displacement | 1,961 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,030 mmcorrect |
|---|---|
| Width | 1,680 mmcorrect |
| Height | 1,500 mmcorrect |
| Wheelbase | 1,850 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 1,654 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6 V/2 Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 11-28 AScorrect |
| Top speed | 23 km/hcorrect |
Working data
| Fuel tank capacity | 35 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 75,056correct |
Other data
| Linkage category | Cat IIcorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 12.5 kW/t (21 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 15% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
