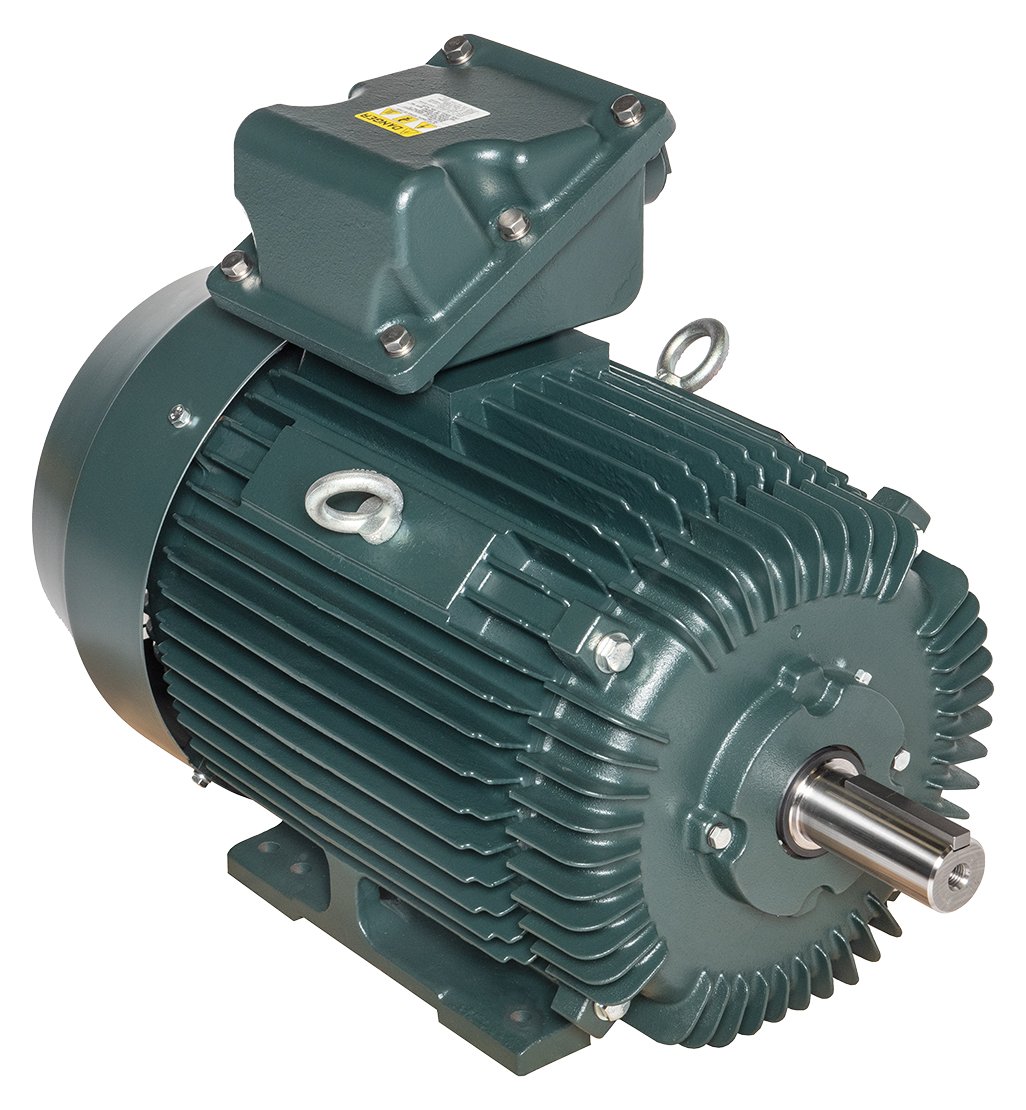

Toshiba DIP

The register lists here 919 versions with 0.73 to 160 kW, two- to eight-pole, full-load efficiencies from 70 to 96.5% and at 75% load from 68.5 to 96.62%. Frame sizes run from 80 to 355 under IEC, protection ratings from IP00 to IP66, and the mounting codes cover practically the whole spectrum from B3 through B14, B34 and B35 to the vertical forms V1 to V36. China, Taiwan, Australia and Germany are recorded as manufacturing countries, often in combination for a single range; testing followed the GEMS determinations of 2012 and 2019 and AS/NZS 1359.5, with test methods A, B and 2-1-1B. For 840 of the 919 motors the High Efficiency Level classification is documented: 347 reach the 2018 level (roughly IE3), 272 the older 2005 level (roughly IE2), the rest none.

The page thus covers the broad industrial-motor programme with which Toshiba International competes alongside ABB, Siemens and WEG for applications in pumps, fans, conveyors and compressors; registration under the Australian GEMS standard shows that a substantial part of the North American programme is also certified for the Australian market.

When buying used or replacing, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and efficiency class; anyone wanting to run the motor on a variable-speed drive should check its inverter suitability. Spares and support run through the TIC sales network.
