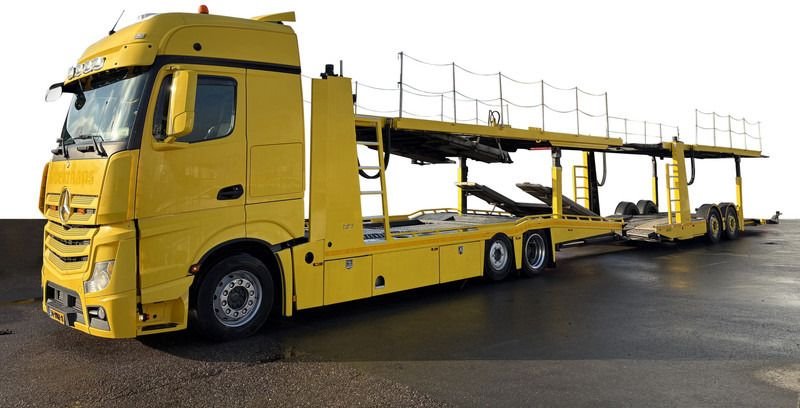

Tijhof TA 7700
Built: 2020 · Series: TA
More machines from model year 2020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tijhof TA – car transporters and trailers from the Dutch specialist in Almelo: from the tilting single-car trailer to the four-vehicle transporter, unladen weight 740 to 9,380 kg, gross weight up to 29,000 kg
Tijhof Autotransportsystemen is a Dutch company from Almelo that, drawing on decades of bodywork experience, specialises in car transporters and trailers which it develops, builds and imports itself. The TA range runs from light tilting single-car trailers in the ANN Sport series with an aluminium chassis and AL-KO tandem axle to heavy multi-car transporters for up to four vehicles.
Read on 3 more paragraphs
The register lists 34 versions here with unladen weights from 740 to 9,380 kg and gross weights from 3,500 to 29,000 kg; lengths run from 6,250 to 11,090 mm, widths from 2,100 to 2,600 mm.
The wide span from the light car-trailer class to the heavy car transporter makes the TA range a proposition for private classic-car and racing-vehicle owners as much as for commercial vehicle movers and car dealers transporting several vehicles at once.
On used TA trailers, the tilting single-car models hinge on the function of the tilt mechanism and loading ramps, while multi-vehicle transporters also need their winches, lashing points and the upper deck checked; aluminium chassis should be examined for deformation and weld cracks, the AL-KO axles and brakes for wear, and on trailers that see frequent use it is worth checking tyre condition and lighting.
Sources: SpecCodex register, model data: Tijhof TA, Tijhof Autotransportsystemen (manufacturer)
Technical data
Dimensions and weights
| Length | 10,500 mmcorrect |
|---|---|
| Width | 2,450 mmcorrect |
| Wheelbase | 6,950 mmcorrect |
| Unladen weight | 2,090 kgcorrect |
| Gross vehicle weight | 7,700 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Tijhof TA 7700 weigh?
The unladen weight is 2,090 kg.
What is the gross vehicle weight of the Tijhof TA 7700?
7,700 kg.
Up to what speed is the Tijhof TA 7700 approved?
Approved up to 100 km/h.
What are the dimensions of the Tijhof TA 7700?
10,500 mm × 2,450 mm.
When was the Tijhof TA 7700 built?
Production years: 2020.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
