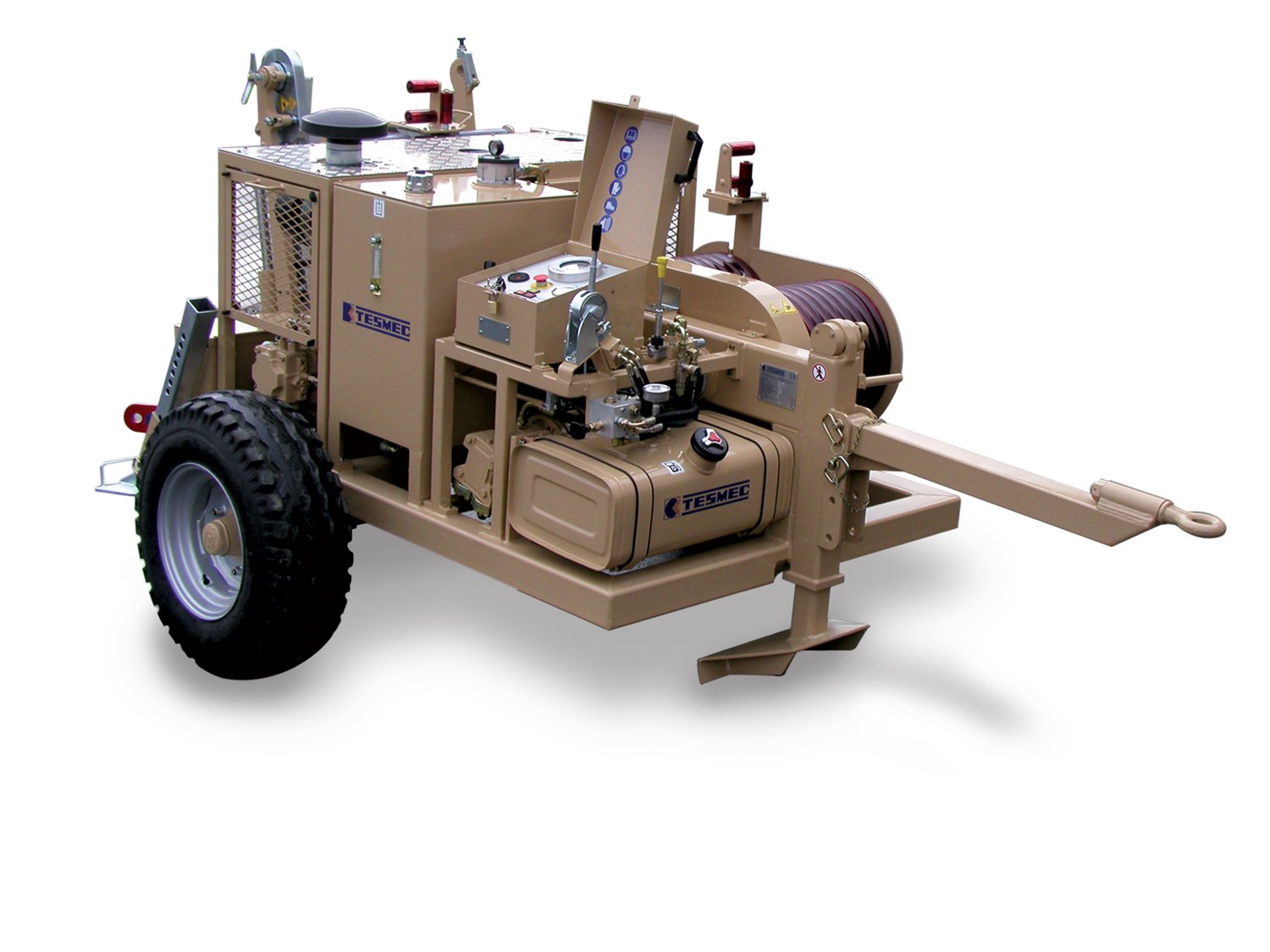

Tesmec HYDRAULIC PULLER TENSIONER
Built: 2023 · Series: Other models
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tesmec Hydraulic Puller Tensioner: EU class O4 trailer with a 12,200 kg gross weight, 5,700 mm length, a 4,030 mm wheelbase and a top speed limited to 80 km/h
Tesmec is an Italian manufacturer of machinery for building and maintaining line networks, including trenchers and ploughs for laying pipes and cables as well as pulling and braking machines for stringing overhead power lines. The trailer designated Hydraulic Puller Tensioner, built in 2023, belongs exactly to this equipment group: a hydraulically driven pulling and braking unit used when hauling in and tensioning power conductors and earth wires.
Read on 3 more paragraphs
With a gross weight of 12,200 kg the vehicle sits in EU trailer class O4. It is 5,700 mm long, 2,450 mm wide, has a wheelbase of 4,030 mm and runs on four wheels. Top speed is limited to 80 km/h, lower than the 100 km/h usual for trailers, fitting short moves between work sites rather than long-haul travel.
As an O4-class vehicle, the trailer carries a dual-line compressed-air braking system, mandatory from class O3 upward. The pulling and braking unit mounted on the trailer itself runs on a hydraulic drive and is used in network construction to haul conductor cable between pylons in a controlled way while keeping the required line tension.
When buying a special-purpose trailer like this secondhand, besides the chassis and braking system, the condition of the hydraulics matters most: hoses, cylinders and pumps should be checked for leaks and wear, since the unit's actual working output runs through the hydraulic system. Cable drums and guide rollers should be checked for abrasion, and the chassis axles for play.
Sources: SpecCodex-Register: Kennwerte des Modells Tesmec Hydraulic Puller Tensioner, Tesmec
Technical data
Dimensions and weights
| Length | 5,700 mmcorrect |
|---|---|
| Width | 2,450 mmcorrect |
| Wheelbase | 4,030 mmcorrect |
| Unladen weight | 12,200 kgcorrect |
| Gross vehicle weight | 12,200 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
How much does the Tesmec HYDRAULIC PULLER TENSIONER weigh?
The unladen weight is 12,200 kg.
What is the gross vehicle weight of the Tesmec HYDRAULIC PULLER TENSIONER?
12,200 kg.
Up to what speed is the Tesmec HYDRAULIC PULLER TENSIONER approved?
Approved up to 80 km/h.
What are the dimensions of the Tesmec HYDRAULIC PULLER TENSIONER?
5,700 mm × 2,450 mm.
When was the Tesmec HYDRAULIC PULLER TENSIONER built?
Production years: 2023.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
