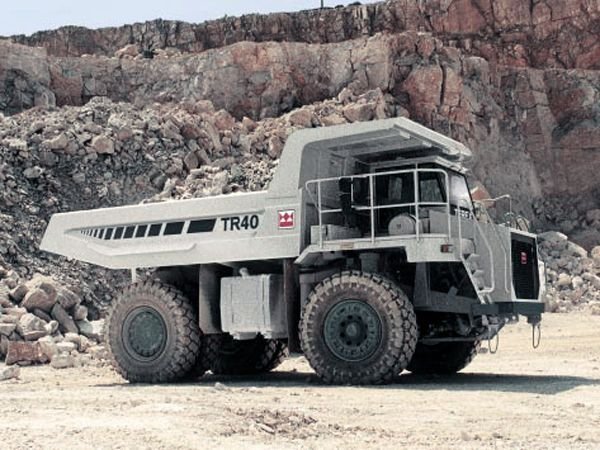

Terex TR40

Series: Terex Rock Truck

Source: https://www.lectura-specs.it/it/modello/movimento-terra-e-st

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TR40 from Terex is part of the Terex Rock Truck series. The engine delivers 481.6 hp (331.1 kW), has 6 cylinders, with a displacement of 14,010.9 cm³. Torque is 2,000.1 Nm. Rated speed is 2,100 rpm. The machine is 8,702 mm long. The wheelbase measures 3,941.1 mm. Ground clearance is 512.1 mm. Top speed is 58.1 km/h. The tank holds 605.7 litres. Maximum torque is reached at 1,300 rpm. The hydraulic tank holds 367.2 litres. The cooling system holds 120 litres. The oil fill is 40.9 litres. The electrical system runs on 24 V. The engine fitted is the N14-C475. Tyre size: 18,00 R33. The Terex Rock Truck series covers 21 models. Rated output within it ranges from 405.5 to 2,737.4 hp; the TR40 sits at the bottom of that range with 481.6 hp. Its immediate neighbours are the TR35 below it with 405.5 hp and the TR45 above it with 532.3 hp. 377 Terex models across 29 series are on record. The model is listed under Mining equipment. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelN14-C475correct
Power481.6 hp (331.1 kW)correct
Rated speed2,100 rpmcorrect
Torque2,000.1correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement14,010.9 cm³correct
AspirationTurbocharged and Aftercooledcorrect
Coolant capacity120 lcorrect
Engine oil capacity40.9 lcorrect

Dimensions and weights

Length8,702correct
Width4,370.8correct
Height4,170 mmcorrect
Wheelbase3,941.1correct
Ground clearance512.1correct

Drivetrain and chassis

Gearbox typeAllison M5600Acorrect
Tyre size18.00 R33correct
Top speed58.1 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity367.2 lcorrect
Fuel tank capacity605.7 lcorrect

Frequently asked questions

How much power does the Terex TR40 have?

The Terex TR40 delivers 482 hp.

What engine does the Terex TR40 have?

6 cylinders, 14,011 cm³ displacement.

How fast does the Terex TR40 go?

Top speed is 58.1 km/h.

What are the dimensions of the Terex TR40?

8,702 mm × 4,371 mm × 4,170 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
