Terex T300 – specifications
Series: Terex Hydraulic Truck Crane
The T300 from Terex is part of the Terex Hydraulic Truck Crane series. The engine delivers 304.2 hp (180.5 kW), with a displacement of 8,270.6 cm³. Torque is 1,166 Nm. Rated speed is 2,000 rpm. The unladen weight is 21,364.7 kg. The gearbox has 10 forward gears. There are also 3 reverse gears. The fuel is diesel. Maximum torque is reached at 1,300 rpm. Tyre size: Front - 425/65R22,5-20 P,R. Rear - 11R22,5-16 P,R. The Terex Hydraulic Truck Crane series covers 20 models. Rated output within it ranges from 109.5 to 506.9 hp; the T300 sits in the middle of that range with 304.2 hp. Its immediate neighbours are the MAC 25 below it with 278.8 hp and the T500-1 above it with 436 hp. Unladen weight within it ranges from 21,098 to 36,856.6 kg; here the T300 sits at the bottom of that range with 21,364.7 kg. 424 Terex models across 31 series are on record.
Build year not documented · Data origin: Official register, Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Terex truck cranes T and TC – the heritage of Lorain, P&H, Demag and PPM: T340 to T790, TC40 and TC60, AT and MAC 25, 81 to 326 kW

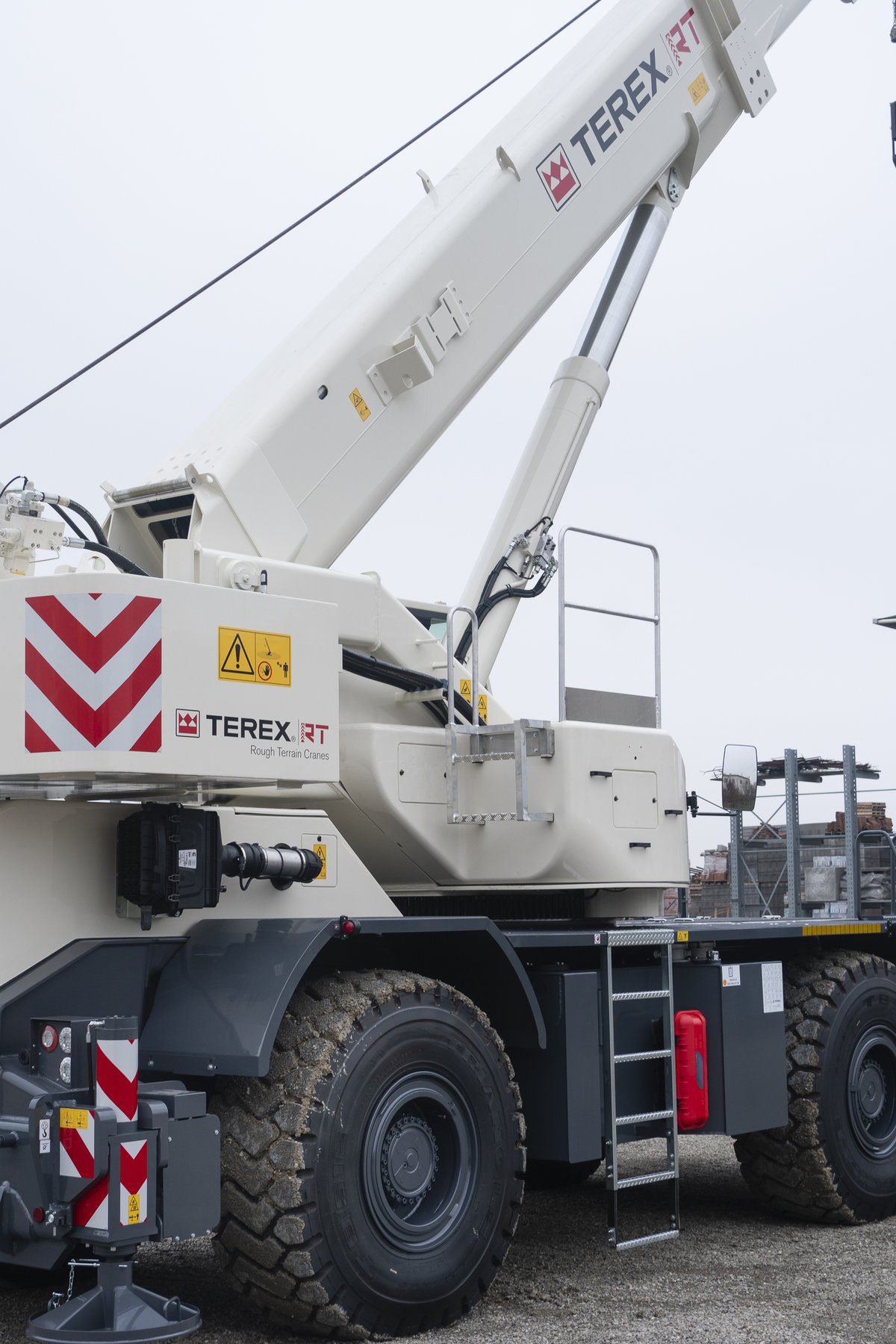

In the 1990s and 2000s Terex collected crane makers the way other groups collect patents: Koehring/Lorain of Waverly, Iowa (1995), PPM of France (1995), Demag Mobile Cranes of Zweibrücken (2002) and several smaller ones, and from that puzzle came the crane programme that sits under Terex in the register. The T range – T230, T300, T340, T500, T775, T790 – are the American truck cranes from Waverly, whose number roughly gives the capacity in US tons (T340 about 40 t, T775 about 75 t), XL the long-boom version; the four-digit 2857, 3063, 3470 and 70100 follow the Lorain pattern with boom and capacity in feet and tons. TC40 and TC60 are telescopic truck cranes of the European line, AT15 and AT20 small all-terrain cranes, MAC 25 a mini crane of the Demag era and UC15 a compact crane. Terex sold Demag to Tadano in 2019 and its American crane manufacturing in 2022; the machines keep working.
Read on 3 more paragraphs
The register lists 20 versions with 80.5 to 325.9 kW from engines of 6,001 to 12,702 cm³, torque from 394 to 2,101 Nm at 1,600 to 2,800 rpm and service weights from 21,098 to 42,200 kg.
For operators the origin is decisive: a T340 is technically a Lorain successor with parts from Iowa, an AT20 a PPM descendant, a MAC 25 a Demag – manuals, parts and workshop knowledge run through the respective line.
On used cranes, operating hours separated into travel and crane duty, the condition of telescopic boom, slew ring, outriggers and ropes, the chassis with brakes and suspension and the inspection history are what count.
Sources: SpecCodex register, model data: Terex Autokrane, Terex Cranes (manufacturer)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| Terex T300 | 2016–2019 | — | — | Official register |
| ● T300 | — | 180,5 | — | Official register |
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 304.2 hp (180.5 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 1,166 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Displacement | 8,270.6 cm³correct |
Dimensions and weights
| Unladen weight | 21,364.7 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | Fuller RT 8908LLcorrect |
|---|---|
| Forward gears | 10correct |
| Reverse gears | 3correct |
| Tyre size | Front - 425/65R22.5-20 P.R, Rear - 11R22.5-16 P.Rcorrect |
Origin and approval
| Sub-category | Class 8 vocational vehicles (other than vocational tractors)correct |
|---|---|
| CO2 limit | 222 g/tkm (US)correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 8.4 kW/t (180 kW / 21.4 t)
Stronger than 34% of the mobile & rough terrain cranes in the register — out of 723 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
