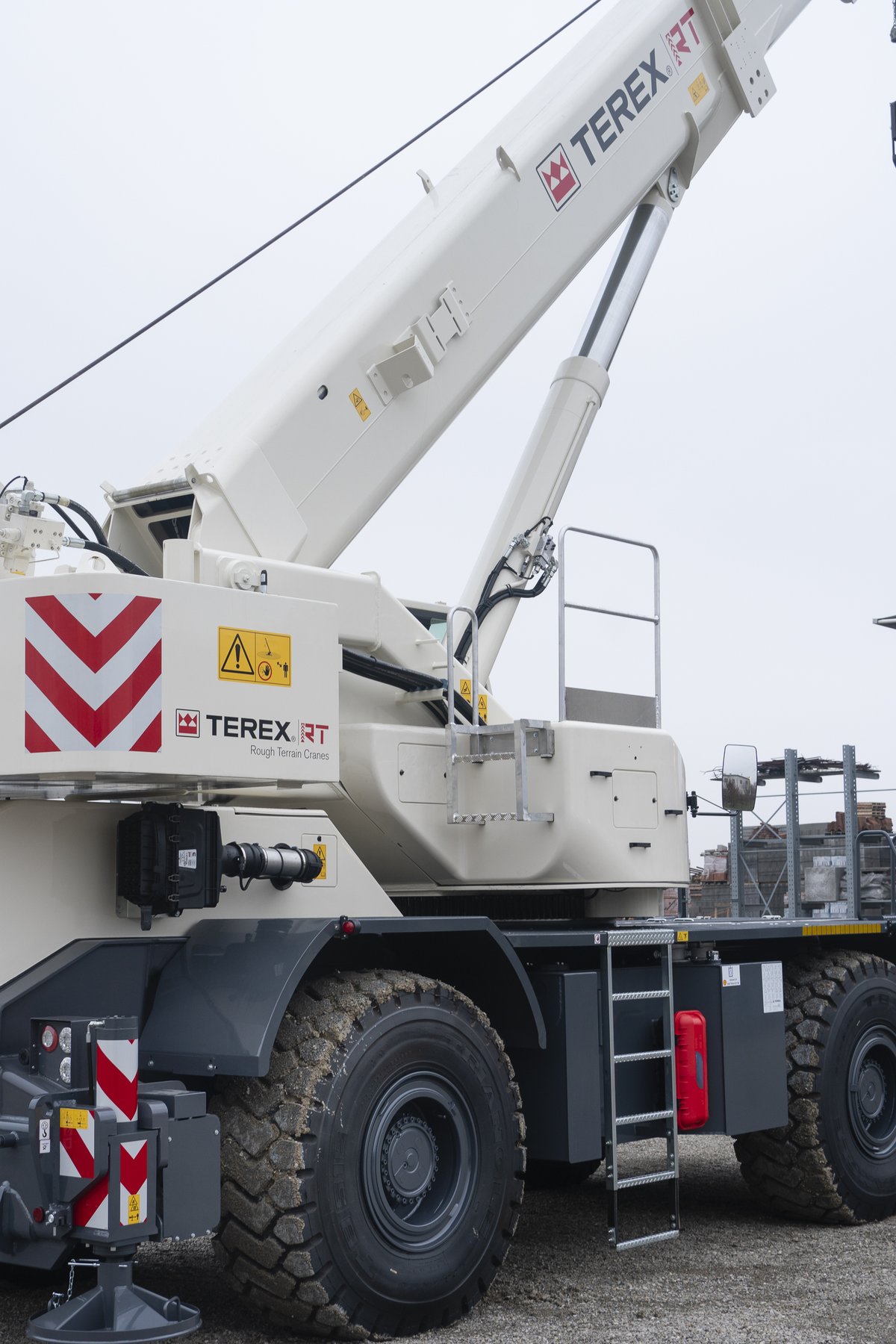

Terex 3470
Series: Terex Hydraulic Truck Crane
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Terex truck cranes T and TC – the heritage of Lorain, P&H, Demag and PPM: T340 to T790, TC40 and TC60, AT and MAC 25, 81 to 326 kW
In the 1990s and 2000s Terex collected crane makers the way other groups collect patents: Koehring/Lorain of Waverly, Iowa (1995), PPM of France (1995), Demag Mobile Cranes of Zweibrücken (2002) and several smaller ones, and from that puzzle came the crane programme that sits under Terex in the register. The T range – T230, T300, T340, T500, T775, T790 – are the American truck cranes from Waverly, whose number roughly gives the capacity in US tons (T340 about 40 t, T775 about 75 t), XL the long-boom version; the four-digit 2857, 3063, 3470 and 70100 follow the Lorain pattern with boom and capacity in feet and tons. TC40 and TC60 are telescopic truck cranes of the European line, AT15 and AT20 small all-terrain cranes, MAC 25 a mini crane of the Demag era and UC15 a compact crane. Terex sold Demag to Tadano in 2019 and its American crane manufacturing in 2022; the machines keep working.
Read on 3 more paragraphs
The register lists 20 versions with 80.5 to 325.9 kW from engines of 6,001 to 12,702 cm³, torque from 394 to 2,101 Nm at 1,600 to 2,800 rpm and service weights from 21,098 to 42,200 kg.
For operators the origin is decisive: a T340 is technically a Lorain successor with parts from Iowa, an AT20 a PPM descendant, a MAC 25 a Demag – manuals, parts and workshop knowledge run through the respective line.
On used cranes, operating hours separated into travel and crane duty, the condition of telescopic boom, slew ring, outriggers and ropes, the chassis with brakes and suspension and the inspection history are what count.
Sources: SpecCodex register, model data: Terex Autokrane, Terex Cranes (manufacturer)
Technical data
Engine
| Power | 212.9 hp (156.6 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Torque | 820.3 Nmcorrect |
| Speed at max. torque | 1,440 rpmcorrect |
| Displacement | 7,200.5 cm³correct |
Dimensions and weights
| Ground clearance | 362.7 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | manual gearboxcorrect |
|---|---|
| Forward gears | 7correct |
| Reverse gears | 1correct |
| Tyre size | Front 22.5 x 8.5, Rear 22.5 x 7.5correct |
Frequently asked questions
How much power does the Terex 3470 have?
The Terex 3470 delivers 213 hp.
What engine does the Terex 3470 have?
7,200 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
