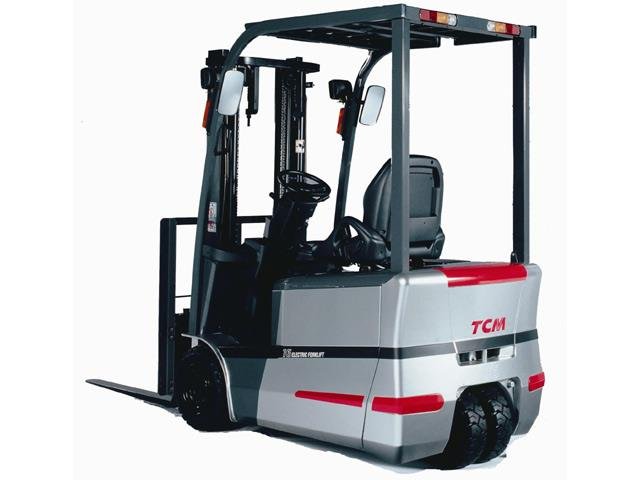

TCM FTB16-7 – specifications
Series: TCM Forklift
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a forklift truck, the TCM FTB16-7 belongs to the TCM Forklift series.
At 15 km/h, that is as fast as it goes. In service, it weighs 2,912 kg. It carries 1,452 kg.
TCM Forklift – a modular code built from type, tyres, engine and gearbox
Japanese manufacturer TCM assembles its type code from several building blocks: an initial letter marks the power source — "D" for diesel, "G" for gasoline/LPG — followed by a letter for the tyres, such as "C" for solid tyres. The next number gives the capacity class, followed by a letter for the engine supplier (e.g. "N" for Nissan-built engines, "Z" for Isuzu) and sometimes a code for the transmission type.
Read on 3 more paragraphs
The database also lists the CG and HD sub-series, marking TCM's compact LPG line and its heavier diesel line respectively — visible in models such as CG15, CG18, HD15 and HD18, plus their long-fork variants CG15L and HG18L.
Models recorded here span capacities of 1,360.8 to 42,000 kg, lift heights of 3,000 to 9,560 mm, and displacement of 2,064 to 13,742 cm³ across 4 to 6 cylinders; lighter series sit around 26.5 to 38.7 kW of engine power. The bucket thus covers everything from compact warehouse trucks to heavy container/heavy-load forklifts.
For a used TCM, the drive axle and mast condition deserve close attention, as does checking the engine-supplier letter against the unit actually fitted — on older machines, engines were sometimes swapped for a different make during repairs, which complicates sourcing parts and servicing.
Sources: SpecCodex register, model data: TCM Forklift, - Intella Parts: TCM-Modellcode entschlüsselt
Technical data
Engine
| Engine model | Electric enginecorrect |
|---|
Dimensions and weights
| Width | 1,080 mmcorrect |
|---|---|
| Unladen weight | 2,912.1 kgcorrect |
Drivetrain and chassis
| Tyre type | cushion tyrescorrect |
|---|---|
| Top speed | 15 km/hcorrect |
Working data
| Lifting capacity | 1,451.5 kgcorrect |
|---|---|
| Lift height | 3,300 mmcorrect |
Other data
| Front wheels | 2correct |
|---|---|
| Lift speed | 24.6 m/mincorrect |
| Rear wheels | 1correct |
Frequently asked questions
How much does the TCM FTB16-7 weigh?
The unladen weight is 2,912 kg.
How fast does the TCM FTB16-7 go?
Top speed is 15 km/h.
What is the load capacity of the TCM FTB16-7?
Load capacity is 1,452 kg, lift height 3,300 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
